POL Non-isolated DC to DC Converter For Power System and Battery Management
DC-DC Power Converter for Energy Systems and Battery Management

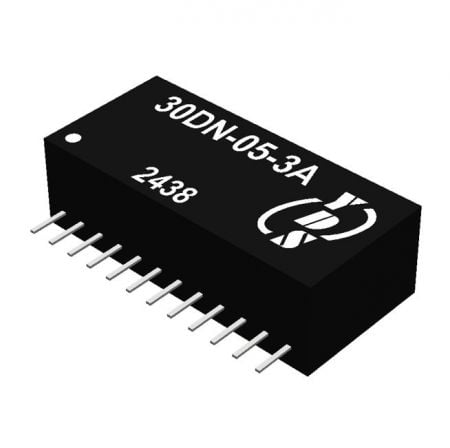

The 30DN-3A series non-isolated POL DC-DC converter delivers 10–45W output power with wide 8~36VDC input range.
With efficiency up to 97% and an operating temperature of -40°C to +85°C without heat sink required.
It uses 12-pin SIP packaging, and the packaging material complies with UL94V-0 and has short-circuit protection.
Our company, a professional non-isolated DC-DC converter manufacturer, offers the 30DN-3A series - a Cost-effective non-isolated DC-DC solution. This Industrial Grade Board mount non-isolated DC-DC converter features Wide input non-isolated DC-DC and Non-isolated SIP DC-DC technology, operating as a high-performance Switching regulator. As a SIP non-isolated DC-DC converter, it is perfect for general industry, electronic instruments, sensing devices, e-bikes, and provides customized services.
All Yuan Dean DC-DC converters are RoHS-compliant, customizable, and supported by a 3-year warranty. OEM/ODM requirements are welcome.
| Quantity: | |
|---|---|
| Part Number | Input Range Vdc | Output Voltage Vdc | Output Current mA | Efficiency (%) | Capacitive Load | |
|---|---|---|---|---|---|---|
| Min.Vin | Max.Vin | µF max | ||||
| 30DN-03-3A | 8-36 | 3.3 | 3000 | 90 | 83 | 1000 |
| 30DN-05-3A | 8-36 | 5 | 3000 | 93 | 89 | 680 |
| 30DN-6R5-3A | 10-36 | 6.5 | 3000 | 94 | 90 | 330 |
| 30DN-09-3A | 13-36 | 9 | 3000 | 95 | 91 | 330 |
| 30DN-12-3A | 16-36 | 12 | 3000 | 97 | 93 | 680 |
| 30DN-15-3A | 19-36 | 15 | 3000 | 97 | 94 | 680 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 2 | ±3 | % | ||
| Short Circuit Protection | Continuous, automatic recovery | ||||
| Remote Control | Turn on | Ctrl pin open or pulled high (TTL 4.5-14VDC) | |||
| Turn off | Ctrl pin pulled low to GND (0-0.8VDC) | ||||
| Line Regulation | 3.3V to 15V | 1.0 | % | ||
| Load Regulation | 3.3V to 15V (10% To 100% F.L) | 0.4 | 1.0 | % | |
| Ripple & Noise (without Output Capacitor) | 3.3V to 15V (BW=DC To 20MHz) | 100 | mVp-p | ||
| Transient response setting time | 50% load step change | 250 | us | ||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| SwitchingFrequency | 300 | KHz | |||
| Operating Temperature | -40 | 85 | °C | ||
| Storage Temperature | -55 | 125 | °C | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case material | Non-ConductiveBlack Plastic | ||||
| Weight | 11.4g | g | |||

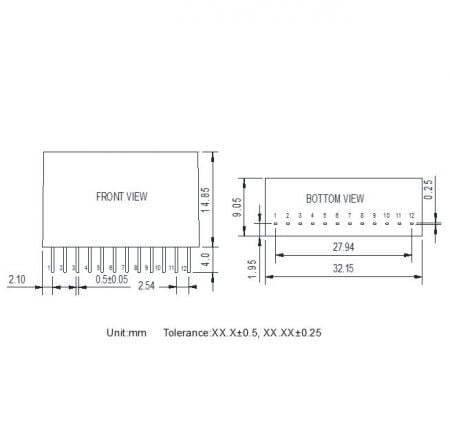

| Dimensions | 32.15*9.05*14.85 | mm | |||
| MTBF(+25°C) | using MIL-HDBK 217F | 5000x103 | hours | ||
