DC-DC Converter, 60W Single Regulated Output Power, 1.6KVdc Isolation, 4:1 Wide Input Range,2" X 1" Size, DIL6 Package

5 0 Reviews

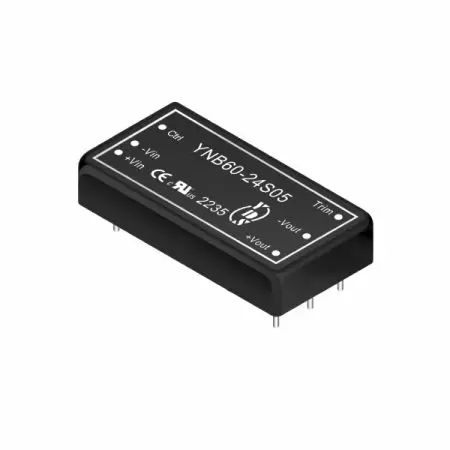

DC-DC Converter, 60W Single Regulated Output Power, 1.6KVdc Isolation, 4:1 Wide Input Range,2" X 1" Size, DIL6 package

YNB60 Series

DC-DC Converter, 2'' x 1'' size, 4:1 Wide Range Input, 6PIN DIL Package, Single Regulated Output For Industry and Instruments equipments

60 watt single output DC to DC power converter with wide input 4:1 voltage range. YNB60 Series has 1.6KV isolation voltage and is available in DIL package. It has remote control switch function. The operating environment temperature is from -40°C to +76°C. The efficiency can reach up to 92%, and the packaging material meets UL94V-0 specifications. The products are tested by 100% high temperature pre-burn before shipment.

Our High efficiency 60W isolated DC-DC series is the ultimate Reliable power solutions B2B choice for Distributed power architecture. This Standard 2x1 footprint DC-DC features a Metal shielded 2x1 DC-DC module to ensure superior performance in telecom and aerospace. It is UL/cUL/IEC/EN 62368-1 approved and EMC EMI EN55032/EMS EN55035/Canadian ICES-003 issue7(2020)/47CFR FCC Part 15 subpart B certified. As an OEM/ODM DC-DC Power Module expert, we offer Custom 60W DC-DC converter design, Remote on/off 60W DC-DC converter functions, and Customized DIL DC-DC Converter options. Every PCB mount DC-DC converter is a safety certified DC-DC converter and RoHS & REACH Compliant DC-DC Converter.

The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.

Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!

Quantity:
Inquire Add to Basket

60W 1.6KV Isolation 4:1 DIP DC-DC Converter(YNB60 Series)
Features
  • 60W DIL Package.
  • 4:1 Wide Input Voltage Range.
  • High Efficiency Up to 92%.
  • 1600Vdc isolation.
  • Regulated Output Types.
  • DIL package.
  • Protection for short circuit and over voltage.
  • Operating Temperature: -40°C to +76°C.
  • UL/cUL/IEC/EN 62368-1 approved, CB-Report, CE Marking.
  • EMC standard of EMI EN55032:2015 approved.
  • EMC standard of EMS EN55035:2017 approved.
  • EMC standard of Canadian ICES-003 issue7(2020) approved.
  • EMC standard of 47CFR FCC Part 15 subpart B approved.
Applications
  • Industry equipment.
  • Sensing equipment.
  • Instruments.
  • Wireless Network.
  • Telecom/Datacom.
  • Measurement.
  • Aviation.
Specifications typical at TA = 25°C, nominal input voltage and rated output current unless otherwise specified
Part Number Input Voltage Range Input Current Output Voltage Output Current Efficiency Maximum
Capacitor Load
No-Load Full Load
Vdc mA (typ) mA (typ) Vdc mA (typ) % (typ) uF
YNB60-24S05 9-36 15 2747 5 12000 91 20400
YNB60-24S12 9-36 15 2717 12 5000 92 3600
YNB60-24S15 9-36 15 2717 15 4000 92 2400
YNB60-24S24 9-36 15 2747 24 2500 91 900
YNB60-48S05 18-75 10 1374 5 12000 91 20400
YNB60-48S12 18-75 10 1359 12 5000 92 3600
YNB60-48S15 18-75 10 1359 15 4000 92 2400
YNB60-48S24 18-75 10 1374 24 2500 91 900
Input Specifications
Parameters Conditions Min Typ Max Units
Input Voltage 24V Models 9 36 Vdc
48V Models 18 75
Input Surge Voltage
(100 ms max.)		 24V Models -0.7 50
48V Models -0.7 100
Start up Voltage 24V Models 9 Vdc
48V Models 18
Under Voltage Shutdown 24V Models 7.5 Vdc
48V Models 16
Start up Time Constant Resistive Load,
Nominal Vin		 Power-up 30 ms
Remote ON/OFF 30
Input Filter All Models Internal Pi type
Remote ON/OFF
Ctrl PIN Refer to Vin PIN)		 Positive Logic DC/DC ON Open or 3.5 Vdc-12 Vdc
DC/DC OFF Short or 0 Vdc-1.2 Vdc
Input Current of Ctrl PIN -0.5 0.5 mA
Remote Off Input Current 3
Output Specifications
Parameters Conditions Min Typ Max Units
Voltage Tolerance 100% load -2 +2 %
Line Regulation Vin(min) to Vin(max) @100% Load -0.2 +0.2 %
Load Regulation 0% Load to 100% Load -0.5 +0.5 %
Ripple & Noise
(BW=20MHz)		 With an 1uF MLCC
and a 10uF tantalum Capacitor		 5Vout 100 mVp-p
12Vout 150
15Vout 150
24Vout 150
Transient Response Setting Time 25% Load Step Change 350 500 us
Transient Response Deviation 25% Load Step Change -5 ±3 +5 %
Temperature Coefficient -0.02 +0.02 %/°C
Voltage Adjustability % of Vout -10 +10 %
Output Power Protection % of Io, Hiccup mode,
Auto-recovery		 120 150 180 %
Short Circuit Protection Continuous [Hiccup Mode] ,Auto-Recovery
Over Voltage Protection 5Vout 6.2 Vdc
12Vout 15
15Vout 18
24Vout 30
General Specifications
Parameters Conditions Min Typ Max Units
Isolation Voltage Input To Output (60sec) 1600 Vdc
Input(Output) To Case (60sec) 1000 Vdc
Isolation Resistance 500Vdc 1000 MΩ
Isolation Capacitance 100KHz,1V 2200 pF
Switching Frequency Full Load,
Nominal Input		 280 KHz
Operating Ambient Temperature
(Power Derating See Derating Graph)		 Nominal Vin,
100% Load		 YNB60-24S05,
YNB60-24S24,
YNB60-48S05,
YNB60-48S24		 -40 45.7 °C
YNB60-24S12,
YNB60-24S15,
YNB60-48S12,
YNB60-48S15		 52.8
Nominal Vin,
100% Load

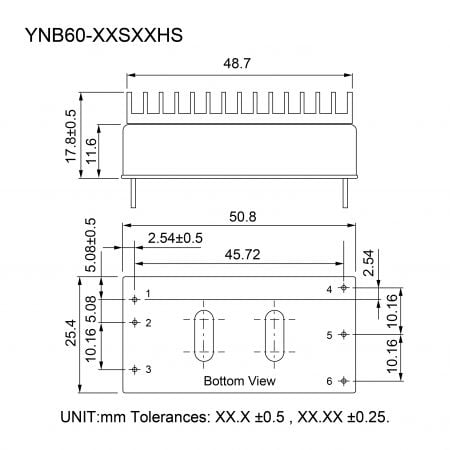

(With HS Heatsink)		 YNB60-24S05HS,
YNB60-24S24HS,
YNB60-48S05HS,
YNB60-48S24HS		 -40 56.9 °C
YNB60-24S12HS,
YNB60-24S15HS,
YNB60-48S12HS,
YNB60-48S15HS		 62.7
Maximum Case Temperature 105 °C
Over Temperature Protection Case temperature 115 °C
Storage Temperature -55 125 °C
Humidity Non Condensing 5 95 %
Cooling Natural Convection
Case Material Copper
Potting Material Silicone (UL94-V0)
MTBF MIL-HDBK-217F@25℃ (calculated) 2.59X105 Hours
Weight Without heatsink 48 g
With heatsink 54.6 g
Dimensions 50.8 x 25.4 x 11.6 mm
Certification

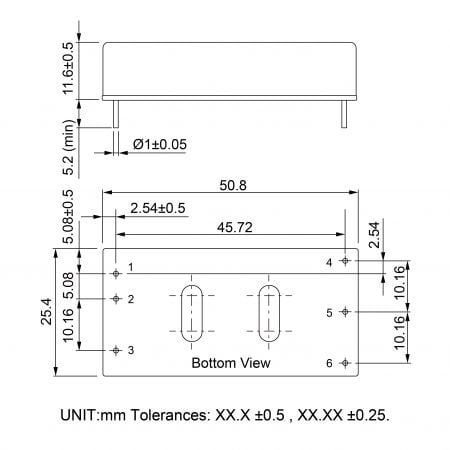

Markings and Dimensions Related Products Files Download
