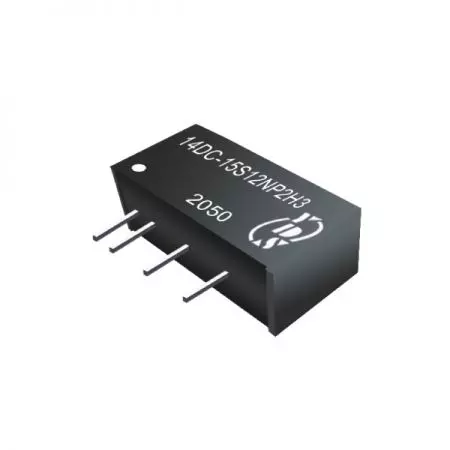

2W SIP7 Single/Dual Output DC to DC Converter For Industry and Telecom/Datacom equipment
2W high efficient 7PIN SIP package DC-DC converter is typically used in cost sensitive, general purpose power isolation and voltage matching applications. Despite its low cost, it is a fully specified converter with 1.5KVDC & 3KVDC isolation. The operating temperature range is from -40°C to +105°C. 14DC-2W series has a high efficiency of up to 89%.
Trusted DC-DC converter manufacturer providing UL certified DC to DC converter and 62368-1 Certified DC to DC Converter for industrial equipment, wireless networks, telecom/datacom, and measuring equipment. We offer board mount DC to DC converter, industrial power supply DC-DC, and isolated DC to DC converter with CB Report DC DC Converter support.
Our DC-DC power converter products are RoHS compliant and can be customized, with a 3-year warranty on sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Output Voltage | Output Current | Efficiency | Capacitive Load(μF) |
|---|---|---|---|---|
| Vdc | mA | %TYP | Max. | |
| 14DC-05S03NP2(H3) | 3.3 | 600 | 78 | 2400 |
| 14DC-05S05NP2(H3) | 5 | 400 | 85 | 2400 |
| 14DC-05S09NP2(H3) | 9 | 223 | 87 | 820 |
| 14DC-05S12NP2(H3) | 12 | 167 | 87 | 470 |
| 14DC-05S15NP2(H3) | 15 | 133 | 88 | 220 |
| 14DC-05S24NP2(H3) | 24 | 84 | 89 | 100 |
| 14DC-05D03NP2(H3) | ± 3.3 | ± 300 | 78 | ± 1200 |
| 14DC-05D05NP2(H3) | ± 5 | ± 200 | 82 | ± 1200 |
| 14DC-05D09NP2(H3) | ± 9 | ± 112 | 85 | ± 330 |
| 14DC-05D12NP2(H3) | ± 12 | ± 84 | 87 | ± 330 |
| 14DC-05D15NP2(H3) | ± 15 | ± 67 | 88 | ± 100 |
| 14DC-05D24NP2(H3) | ± 24 | ± 42 | 89 | ± 47 |
| 14DC-XXS03NP2(H3) | 3.3 | 600 | 80 | 2400 |
| 14DC-XXS05NP2(H3) | 5 | 400 | 85 | 2400 |
| 14DC-XXS09NP2(H3) | 9 | 223 | 87 | 820 |
| 14DC-XXS12NP2(H3) | 12 | 167 | 87 | 470 |
| 14DC-XXS15NP2(H3) | 15 | 133 | 88 | 220 |
| 14DC-XXS24NP2(H3) | 24 | 84 | 89 | 100 |
| 14DC-XXD03NP2(H3) | ± 3.3 | ± 300 | 80 | ± 1200 |
| 14DC-XXD05NP2(H3) | ± 5 | ± 200 | 82 | ± 1200 |
| 14DC-XXD09NP2(H3) | ± 9 | ± 112 | 85 | ± 330 |
| 14DC-XXD12NP2(H3) | ± 12 | ± 84 | 87 | ± 330 |
| 14DC-XXD15NP2(H3) | ± 15 | ± 67 | 88 | ± 100 |
| 14DC-XXD24NP2(H3) | ± 24 | ± 42 | 89 | ± 47 |
Note：
1. No suffix is standard isolation (1.5KVDC) e.g, 14DC-12S05NP2,
*add suffix “H3”for 3KVDC isolation, e.g, 14DC-12S05NP2H3
2. ” XX ” is input voltage : 12=12Vdc,15=15Vdc, 24=24Vdc e.g, 14DC-12S05NP2,14DC-15S12NP2H3
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Range | Vo,Io Nom | ± 10 | % | ||
| Filter | Capacitor |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ±5 | % | ||
| Short Circuit Protection | Continuous | ||||
| Line Regulation | For 1.0% of Vin | 1.2 | % | ||
| Load Regulation | 3.3V(10% To 100% F.L) | 15 | 20 | % | |
| 5V(10% To 100% F.L) | 8 | 15 | % | ||
| 9V(10% To 100% F.L) | 6 | 10 | % | ||
| 12V(10% To 100% F.L) | 5 | 10 | % | ||
| 15V(10% To 100% F.L) | 4 | 10 | % | ||
| 24V(10% To 100% F.L) | 3 | 10 | % | ||
| Ripple & Noise | BW=DC To 20MHz | 75 | 150 | mVp-p | |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Isolation Capacitance | Input-output,100KHz/0.1V | 20 | pF | ||
| Switching Frequency | Full load, nominal input | 250 | KHz | ||
| Operation Temperature | -40 | +105 | °C | ||
| Storage Temperature | -55 | +125 | °C | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case material | DAP | ||||
| MTBF | MIL-HDBK-217F @25°C | 3500000 | Hours | ||
| Weight | 2.1 | g | |||

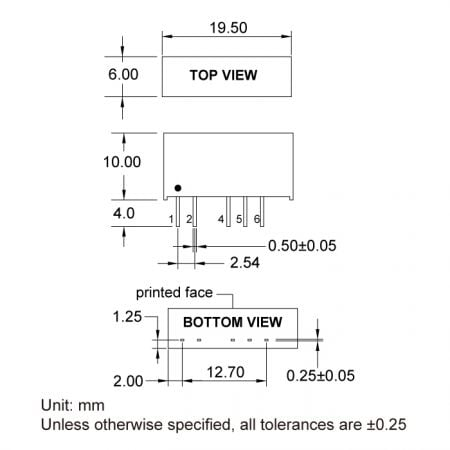

| Dimensions | 19.5 x 6.0 x 10.0 | mm | |||
