DC-DC Converter, 8:1 Ultra-Wide Input Range,30W Single & Dual Regulated Output Power,2250Vdc Isolated,Compact 2" X 1" Size,DIL6 Package

5 0 Reviews

DC-DC Converter, 8:1 Ultra-wide Input Range,30W Single & Dual Regulated Output Power,2250Vdc Isolated,Compact 2" x 1" Size,DIL6 Package

YNC30 Series

Reliable 30W DC to DC Power Conversion with 2.25KV Isolation for Industrial Automation and Energy Systems

The 30W DC-DC converter offers an ultra-wide 8:1 input voltage range in a compact 2" x 1" footprint. Featuring reinforced 2.25KV isolation, it is available in both single and dual output options. With efficiency up to 91%, it ensures dependable performance across -40°C to +70°C operating environments. They are widely applied in industrial control panels, telecom base stations, smart factory equipment, and renewable energy solutions.

Yuan Dean DC-DC converters are RoHS-compliant, customizable for different system requirements, and covered by a 3-year warranty. OEM and ODM projects are welcome, and we look forward to collaborating with you.

Quantity:
Inquire Add to Basket

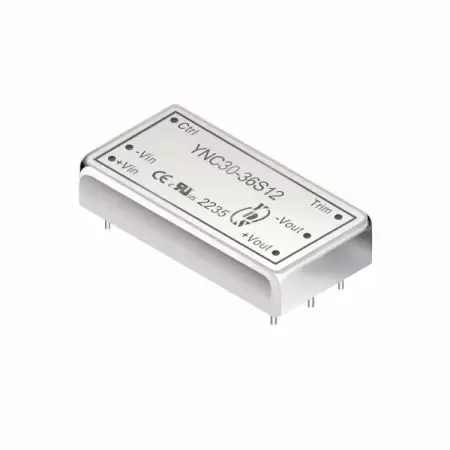

2.25KV Isolation 30W 8:1 DIP DC-DC Converter(YNC30 Series)
Features
  • 30W DIL Package.
  • 8:1 Wide Input Voltage Range.
  • High Efficiency Up To 91%.
  • Regulated Output Types.
  • No Minimum Load Required.
  • Over Power and Short Circuit Protection.
  • Over Temperature Protection.
  • Operating Temperature: -40°C To +70°C.
  • UL94V-0 Package Material.
  • UL/cUL/IEC/EN 62368-1 approved, CB-Report, CE Marking.
  • EMC standard of EMI EN55032:2015 approved.
  • EMC standard of EMS EN55035:2017 approved.
  • EMC standard of Canadian ICES-003 issue7(2020) approved.
  • EMC standard of 47CFR FCC Part 15 subpart B approved.
Applications
  • Industry equipment.
  • Sensing equipment.
  • Instruments.
  • Wireless Network.
  • Telecom/Datacom.
  • Measurement.
  • Aviation.
Specifications typical at TA = 25°C, nominal input voltage and rated output current unless otherwise specified
Part Number Input Voltage
Range		 Input Current Output Voltage Output Current Efficiency
(@36Vin)		 Maximum
Capacitor Load
No-Load Full Load
Vdc (mA TYP) (mA TYP) Vdc mA(TYP) %(TYP) μF
YNC30-36S05 9-75 10 916 5 6000 91 10200
YNC30-36S12 9-75 8 916 12 2500 91 1800
YNC30-36S15 9-75 8 916 15 2000 91 1125
YNC30-36S24 9-75 8 916 24 1250 91 450
YNC30-36S48 9-75 8 916 48 625 91 110
YNC30-36D12 9-75 8 916 ± 12 ± 1250 91 ± 900
YNC30-36D15 9-75 8 916 ± 15 ± 1000 91 ± 600
Input Specifications
Parameters Conditions Min Typ Max Units
Input Voltage 9 36 75 Vdc
Input Surge Voltage
(100 ms max.)		 -0.7 100 Vdc
Start-up Voltage 9 Vdc
Under Voltage Shutdown 7.5 Vdc
Start-up Time Constant Resistive Load,
Nominal Vin		 Power-up 35 ms
Remote ON/OFF 35
Input Filter All Models Internal Pi type
Remote ON/OFF
(Ctrl PIN Refer To –Vin PIN)		 Positive Logic
(Standard)		 DC/DC ON Open or 3.5 Vdc – 12 Vdc
DC/DC OFF Short or 0 Vdc – 1.2 Vdc
Input Current of Ctrl PIN -0.5 +0.5 mA
Remote Off Input Current 3
Output Specifications
Parameters Conditions Min Typ Max Units
Voltage Tolerance 100% Load -2 +2 %
Line Regulation Vin(min) to Vin(max) @100% Load -0.5 +0.5 %
Load Regulation 0% Load to 100% Load -0.5 +0.5 %
Ripple & Noise
(BW=20MHz)		 With an 1uF MLCC 5Vout 100 mVp-p
12Vout, ±12Vout 120
15Vout, ±15Vout 150
24Vout 150
48Vout 200
Transient Response Setting Time 25% Load Step Change 350 500 us
Transient Response Deviation 25% load step change -5 ±3 +5 %
Temperature Coefficient -0.02 +0.02 %/°C
Voltage Adjustability % of Vout -10 +10 %
Output Power Protection % of Io, Hiccup mode,
Auto-recovery		 115 155 190 %
Short Circuit Protection Continuous [Hiccup Mode], Auto-Recovery
Over Voltage Protection 5Vout 6.2 Vdc
12Vout, ±12Vout 15
15Vout, ±15Vout 18
24Vout 30
48Vout 60
General Specifications
Parameters Conditions Min Typ Max Units
Isolation Voltage Input to Output (60sec) 2250 Vdc
Input (Output) to Case (60sec) 1000 Vdc
Isolation Resistance 500Vdc 1000 MΩ
Isolation Capacitance 100kHz, 1V 2200 pF
Switching Frequency Full Load,
Nominal Input		 5Vout 180 KHz
Other 210
Operating Ambient Temperature
(Power Derating See Derating Graph)		 Nominal Vin,
100% Load		 All models -40 70 °C
Thermal Impedance 20LFM 11.6 °C/W
100LFM 10.5
200LFM 8.7
400LFM 5.1
Maximum Case Temperature 105 °C
Over Temperature Protection Case temperature 115 °C
Storage Temperature -55 125 °C
Humidity Non Condensing 5 95 %
Cooling Natural Convection
Case Material Copper
Potting Material Silicone (UL94-V0)
MTBF MIL-HDBK-217F@25℃ (calculated) 5.73X105 Hours
Weight 42 g
Dimensions 50.8 x 25.4 x 11.6 mm
Certification

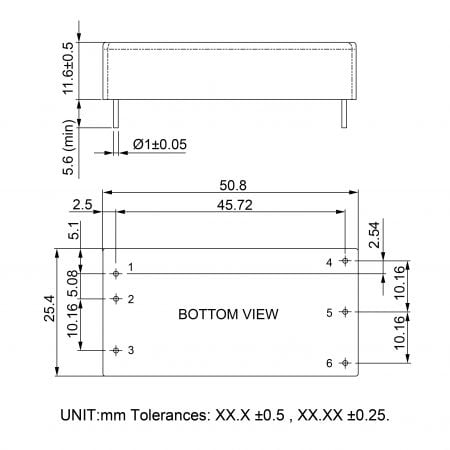

Markings and Dimensions Related Products Files Download
