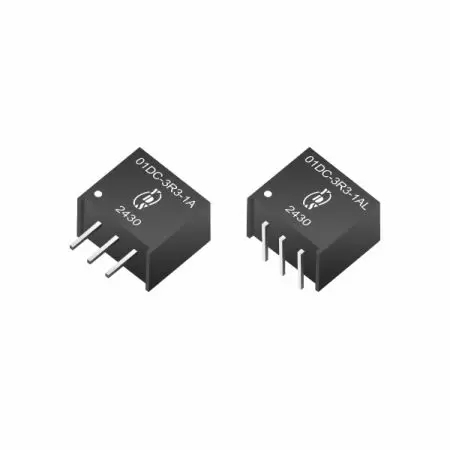

DC-DC Converter, Non-Isolated, SIP3 Package, Short Circuit Protection

5 0 Reviews

DC-DC Converter, Non-isolated, SIP3 Package, Short Circuit Protection

01DC-1A Series

DC to DC Switching Regulator for Consumer Electronics, IoT, and Communication Devices

Non-isolated DC-DC converter in SIP3 package with 1A output current, offering pin compatibility with LM78XX linear regulators. Efficiency reaches up to 95%, eliminating the need for a heatsink. The converter operates from -40°C to +85°C and includes short circuit protection with ultra-low no-load current.

Our 62368-1 Certified DC-DC Converter ensures top-tier safety for precision systems. This UL certified DC-DC converter and CE marked DC-DC converter with CB Report DC DC Converter status guarantees global compliance. Available as Isolated DC-DC Converter, High efficiency non-isolated DC-DC, or Board mount DC-DC converter, we provide reliable power for critical precision devices.

Yuan Dean DC-DC converters are RoHS-compliant, UL/cUL/IEC/EN 62368-1 certified, customizable, and backed by a 3-year warranty.

Quantity:



Inquire Add to Basket

Product Description1

Non-isolated SIP3 DC-DC Converters(01DC-1A Series) | Cost-effective DC-DC converter | Board mount Non-isolated DC to DC converter

Features

3PIN SIP package.
Pin-out Compatible with LM78XX Linear.
Efficiency up to 95%, non-isolated, no need for heatsinks.
UL94V-0 package material.
Operating temperature from -40°C to +85°C.
No-load input current as low as 0.3mA.
Short circuit protection.
L/cUL/IEC/EN 62368-1 approved, CB-Report
EMC Standard of EMI EN55032:2015 Approved
EMC Standard of EMS EN55035:2017 Approved

Applications

General Industrial.
Instruments.
Sensing Equipment.
E-Bike.
Customized.

Specifications typical at TA = 25°C, nominal input voltage and rated output current unless otherwise specified

Part Number	Input Range	Output Voltage	Output Current	Efficiency		Capacitive Load
Part Number	Vdc	Vdc	mA	Min. Vin (%)	Max. Vin (%)	μF max
01DC-1R2-1A(L)	4.75-36	1.2	1000	74	62	680
01DC-1R5-1A(L)	4.75-36	1.5	1000	78	65	680
01DC-1R8-1A(L)	4.75-36	1.8	1000	82	69	680
01DC-2R5-1A(L)	4.75-36	2.5	1000	87	75	680
01DC-3R3-1A(L)	4.75-36	3.3	1000	90	78	680
01DC-05-1A(L)	6.5-36	5.0	1000	92	84	680
01DC-05-1A(L)	6.5-27	-5.0	-500	85	81	330
01DC-6R5-1A(L)	9.0-36	6.5	1000	93	86	680
01DC-09-1A(L)	12-36	9.0	1000	95	90	680
01DC-12-1A(L)	15-36	12	1000	95	92	470
01DC-12-1A(L)	8-20	-12	-300	88	87	330
01DC-15-1A(L)	18-36	15	1000	95	93	470
01DC-15-1A(L)	8-18	-15	-300	87	88	330

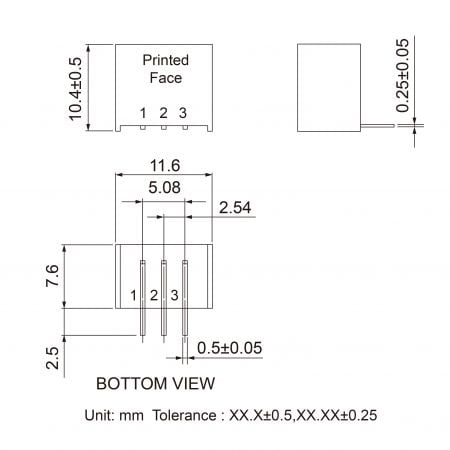

Note:(L) Add a suffix to bend the feet 90° , e.g, 01DC-05-1AL

Output Specifications

Parameters	Conditions	Typ	Max	Units
Voltage Tolerance		2	± 3	%
Short Circuit Protection	Continuous, automatic recovery
Line Regulation	1.2V to 1.5V		0.3	%
Line Regulation	1.8V to 15V		0.3	%
Load Regulation	1.2V to 1.5V (10% To 100% F.L)		0.6	%
Load Regulation	1.8V to 15V (10% To 100% F.L.)	0.4	0.6	%
Ripple & Noise (without Output Capacitor)	1.2V to 6.5V (BW = DC To 20MHz)		75	mVp-p
Ripple & Noise (without Output Capacitor)	9V to 15V (BW = DC To 20MHz)		100	mVp-p
Transient response setting time	50% load step change	250		us

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Switching Frequency			440		KHz
Operating Temperature		-40		+85	°C
Storage Temperature		-55		+125	°C
Humidity	Non Condensing			95	%
Cooling	Free air Convection
Case material	Non-Conductive Black Plastic
Weight			2.0		g

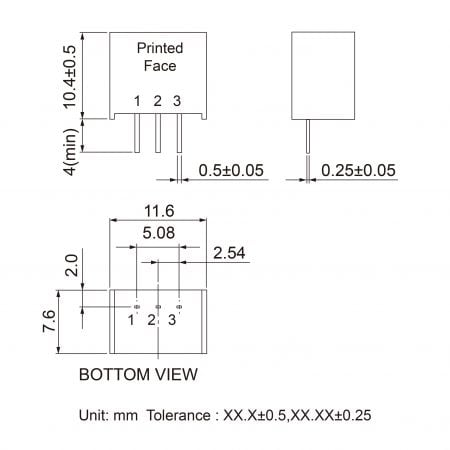

Dimensions		11.6 x 7.6 x 10.4			mm
MTBF (+25°C)	using MIL-HDBK 217F	5000 x 10³			hours
MTBF (+71°C)	using MIL-HDBK 217F	1000 x 10³			hours
