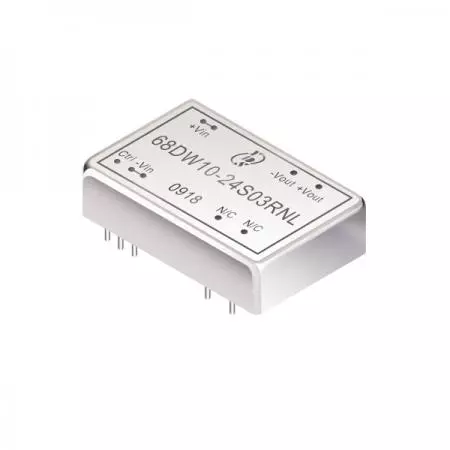

10 Watt DC to DC Power Module | 1.25"x0.8" Size | 87% Efficiency | Single & Dual Output | Short Circuit Protection For Industry and Instrument equipments
DC to DC power converter features 10 watt Power and 1.5KV isolation voltage. 68DW10 series has wide input 4:1 voltage range and 24 pin DIL package. It has single and dual output specifications. This product uses UL94V-0 packaging material. The operating environment temperature is from -40°C to +84°C. The efficiency can reach 87%. This product will test by 100% high temperature pre-burn before shipment.
Meeting your needs for advanced industrial equipment and aerospace, we offer a High Efficiency 10W DC-DC solution as a dedicated DC to DC converter manufacturer DIP module specialist. This industrial wide input DC-DC converter functions as a precise Switching regulator and safety isolated DC to DC converter, ensuring a stable Isolated DC-DC Converter environment for wireless networks and measurement technology. Our Board mount DC-DC converter is an Economical DC-DC Converter that remains RoHS & REACH Compliant Power certified, making it a trusted low power DC to DC converter module for electronic instruments. We also provide comprehensive DC-DC Converter OEM/ODM Service to customize this industrial DC-DC converter for any sensing device or telecommunications project.
The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Input Voltage | Input Current | Output Voltage | Output Current | Efficiency | |
|---|---|---|---|---|---|---|
| Vdc | No Load (mA TYP) | Full Load (mA TYP) | Vdc | Full Load (mA) | %Typ | |
| 68DW10-24S03RNL | 9-36 | 50 | 491 | 3.3 | 3000 | 84 |
| 68DW10-24S05RNL | 9-36 | 50 | 484 | 5 | 2000 | 86 |
| 68DW10-24S12RNL | 9-36 | 30 | 484 | 12 | 833 | 86 |
| 68DW10-24S15RNL | 9-36 | 30 | 487 | 15 | 665 | 86 |
| 68DW10-24D05RNL | 9-36 | 30 | 496 | ± 5 | ± 1000 | 84 |
| 68DW10-24D12RNL | 9-36 | 30 | 483 | ± 12 | ± 420 | 87 |
| 68DW10-24D15RNL | 9-36 | 30 | 489 | ± 15 | ± 335 | 87 |
| 68DW10-48S03RNL | 18-75 | 30 | 246 | 3.3 | 3000 | 84 |
| 68DW10-48S05RNL | 18-75 | 30 | 242 | 5 | 2000 | 86 |
| 68DW10-48S12RNL | 18-75 | 20 | 242 | 12 | 833 | 86 |
| 68DW10-48S15RNL | 18-75 | 20 | 243 | 15 | 665 | 86 |
| 68DW10-48D05RNL | 18-75 | 20 | 248 | ± 5 | ± 1000 | 84 |
| 68DW10-48D12RNL | 18-75 | 20 | 241 | ± 12 | ± 420 | 87 |
| 68DW10-48D15RNL | 18-75 | 20 | 244 | ± 15 | ± 335 | 87 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Types | 4:1 | ||||
| Filter | PI Network | ||||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | Full load@Vin(nom.) | ± 2 | % | ||
| Short Circuit Protection | Hiccup, automatic Recovery | ||||
| Line Regulation | ± 0.5 | % | |||
| Load Regulation | Single Dual(Balance Load) | ± 0.5 ± 0.5 | % | ||
| Cross Regulation | Dual (25% To 100% Load) | ± 5 | % | ||
| Ripple & Noise | Output:3-15V TYPES BW=DC To 20MHz | 100 | mVp-p | ||
| Output > 15V TYPES BW=DC To 20MHz | 1% of Vout | mVp-p | |||
| Transient response setting time | 25% load step change | 350 | us |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Voltage | 1500 | Vdc | |||
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | 400 | KHz | |||
| Operating Temperature | With derating | -40 | +84 | °C | |
| Storage Temperature | -55 | +125 | °C | ||
| Temperature Coefficient | 100% Load | ± 0.03 | %/°C | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Natural Convection (20LFM) | ||||
| Case Material | Nickel Coated Copper With Non-Conductive Base | ||||
| MTBF | MIL-HDBK-217F@25℃ | 900000 | Hours | ||
| Weight | 17.5 | g | |||
| Dimensions | 31.60 x 20.10 x 10.00 | mm | |||
