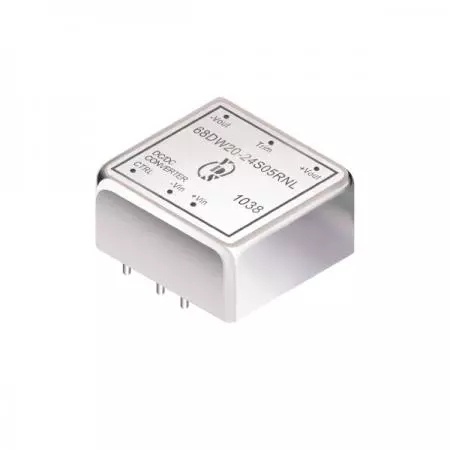

20 Watt DC to DC Power Module | 1"x1" Size | 1.5KVdc Isolated | Remote On/Off | EN55032 EN55035 Compliant For Industry and Measurement equipments
20 watt DC to DC power converter with wide input 4:1 voltage range. 68DW20 series has 1.5KV isolation voltage and DIL package. There are single output and dual output specifications to choose from. This product uses UL94V-0 packaging material. The operating environment temperature ranges is from -40°C to +85°C. The efficiency is up to 90%. This product will test by 100% high temperature pre-burn before shipment.
As a dedicated DC-DC converter manufacturer who understands your needs, we offer this 20W Isolated DC DC Converter 1x1 Inch 4:1 Input DIP Module for high-power industrial equipment and aerospace. This Compact DC-DC Converter features High Efficiency DC-DC performance and is designed as a PCB mount DC DC converter DIP for seamless integration into wireless networks and electronic instruments. Our industry standard DC to DC converter functions as a low EMI DC DC converter module, meeting EN55032 EN55035 DC DC converter module 1 inch and ICES-003 compliant DC DC converter standards. This Economical DC to DC Converter is fully RoHS & REACH Compliant Power certified. We also provide professional DC-DC Converter OEM/ODM Service to deliver a Customized DIL DC-DC Converter for your sensing devices and telecommunications.
The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Input Voltage | Input Current | Output Voltage | Output Current | Efficiency | Capacitor load | |
|---|---|---|---|---|---|---|---|
| Vdc | No Load (mA TYP) | Full Load (mA TYP) | Vdc | Full Load (mA) | %TYP | uF MAX | |
| 68DW20-24S03RNL | 9-36 | 70 | 719 | 3.3 | 4500 | 86 | 6600 |
| 68DW20-24S05RNL | 9-36 | 70 | 947 | 5 | 4000 | 88 | 6600 |
| 68DW20-24S12RNL | 9-36 | 25 | 938 | 12 | 1670 | 89 | 960 |
| 68DW20-24S15RNL | 9-36 | 25 | 924 | 15 | 1330 | 90 | 470 |
| 68DW20-24D12RNL | 9-36 | 25 | 936 | ± 12 | ± 833 | 89 | 470 |
| 68DW20-24D15RNL | 9-36 | 25 | 937 | ± 15 | ± 670 | 89 | 330 |
| 68DW20-48S03RNL | 18-75 | 30 | 360 | 3.3 | 4500 | 86 | 6600 |
| 68DW20-48S05RNL | 18-75 | 30 | 473 | 5 | 4000 | 88 | 6600 |
| 68DW20-48S12RNL | 18-75 | 15 | 474 | 12 | 1670 | 88 | 330 |
| 68DW20-48S15RNL | 18-75 | 15 | 472 | 15 | 1330 | 88 | 330 |
| 68DW20-48D12RNL | 18-75 | 25 | 468 | ± 12 | ± 833 | 89 | 330 |
| 68DW20-48D15RNL | 18-75 | 25 | 468 | ± 15 | ± 670 | 89 | 220 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Types | 4:1 | ||||
| Filter | LC Network | ||||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | Full load@Vin(nom.) | ± 2 | % | ||
| Short Circuit Protection | Hiccup, automatic Recovery | ||||
| Line Regulation | ± 0.5 | % | |||
| Load Regulation | Single Dual(Balance Load) | ± 0.5 ± 1 | % | ||
| Cross Regulation | Dual (25% To 100% Load) | ± 5 | % | ||
| Ripple & Noise | Output:3-15V TYPES BW=DC To 20MHz | 100 | mVp-p | ||
| Output > 15V TYPES BW=DC To 20MHz | 1% of Vout | mVp-p | |||
| Transient response setting time | 25% load step change | 300 | us |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Voltage | 1500 | Vdc | |||
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | 330 | KHz | |||
| Operating Temperature | With derating | -40 | +85 | °C | |
| Storage Temperature | -55 | +125 | °C | ||
| Temperature Coefficient | 100% Load | ± 0.03 | %/°C | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Natural Convection (20LFM) | ||||
| Case Material | Nickel Coated Copper With Non-Conductive Base | ||||
| MTBF | MIL-HDBK-217F@25℃ | 340000 | Hours | ||
| Weight | 16.5 | g | |||

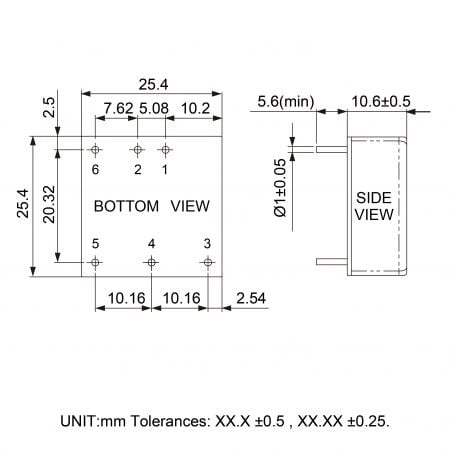

| Dimensions | 25.4 x 25.4 x 10.6 | mm | |||
