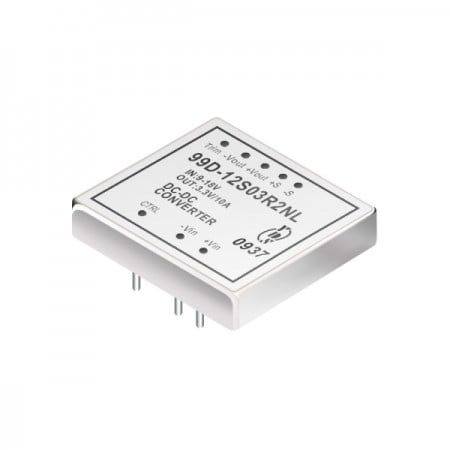

DC-DC Converter, 2'' x 2'' size, 2:1 Wide Input Range, 8PIN DIL Package, Single & Dual Regulated Output For Industry and Instruments equipment
40 watt DC to DC power converter with wide input 2:1 voltage range and 1.5KV isolation voltage. 99D-R2 series is available in DIL package and has remote control switch function. The operating environment temperature is from -40°C to +82°C. The efficiency can reach up to 91%, and the packaging material meets UL94V-0 specification. It is tested by 100% high temperature pre-burning before shipment.
As a professional manufacturer following the latest market trends, we deliver a High Efficiency DC-DC power Module and Wide Input DC-DC Converter optimized for aviation and wireless networks. This RoHS & REACH Compliant Power solution features a safety isolated DC-DC converter design in both PCB mount DC-DC converter and through hole DC DC converter formats. Whether you need a Customized DIL DC-DC Converter for sensing devices or a Cost-effective isolated DC-DC for electronic instruments, our industrial isolated DC-DC converter and DC-DC Converter OEM/ODM Service ensure reliability across all telecom and measurement technologies.
The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Input Voltage | Input Current | Output Voltage | Output Current | Efficiency | Capacitor Load | |
|---|---|---|---|---|---|---|---|
| Vdc | No-Load (mA TYP) | Full Load (mA TYP) | Vdc | Full Load (mA) | %TYP | uF Max | |
| 99D-12S03R2NL | 9-18 | 120 | 3125 | 3.3 | 10000 | 88 | 16000 |
| 99D-12S05R2NL | 9-18 | 130 | 3704 | 5 | 8000 | 90 | 10000 |
| 99D-12S12R2NL | 9-18 | 50 | 3750 | 12 | 3300 | 88 | 2000 |
| 99D-12S15R2NL | 9-18 | 50 | 3722 | 15 | 2650 | 89 | 1200 |
| 99D-12D12R2NL | 9-18 | 60 | 3752 | ± 12 | ± 1670 | 89 | ± 1000 |
| 99D-12D15R2NL | 9-18 | 60 | 3764 | ± 15 | ± 1340 | 89 | ± 680 |
| 99D-24S03R2NL | 18-36 | 70 | 1545 | 3.3 | 10000 | 89 | 16000 |
| 99D-24S05R2NL | 18-36 | 80 | 1832 | 5 | 8000 | 91 | 10000 |
| 99D-24S12R2NL | 18-36 | 30 | 1833 | 12 | 3300 | 90 | 2000 |
| 99D-24S15R2NL | 18-36 | 30 | 1840 | 15 | 2650 | 90 | 1200 |
| 99D-24D12R2NL | 18-36 | 30 | 1855 | ± 12 | ± 1670 | 90 | ± 1000 |
| 99D-24D15R2NL | 18-36 | 30 | 1861 | ± 15 | ± 1340 | 90 | ± 680 |
| 99D-48S03R2NL | 36-75 | 40 | 764 | 3.3 | 10000 | 90 | 16000 |
| 99D-48S05R2NL | 36-75 | 50 | 916 | 5 | 8000 | 91 | 10000 |
| 99D-48S12R2NL | 36-75 | 30 | 917 | 12 | 3300 | 90 | 2000 |
| 99D-48S15R2NL | 36-75 | 30 | 920 | 15 | 2650 | 90 | 1200 |
| 99D-48D12R2NL | 36-75 | 30 | 927 | ± 12 | ± 1670 | 90 | ± 1000 |
| 99D-48D15R2NL | 36-75 | 30 | 930 | ± 15 | ± 1340 | 90 | ± 680 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Types | 2:1 | ||||
| Filter | Pi Network | ||||
| Protection | Fuse Recommended |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | Full load@Vin(nom.) | ± 2 | % | ||
| Short Circuit Protection | Hiccup,automatic recovery | ||||
| Line Regulation | ± 0.5 | % | |||
| Load Regulation | Single Dual(Balance Load) | ± 0.5 ± 1 | % | ||
| Cross Regulation | Dual (25% to 100% load) | ± 5 | % | ||
| Ripple & Noise | Output:3-15V TYPES BW=DC To 20MHz | 100 | mVp-p | ||
| Ripple & Noise | Output >15V TYPES BW=DC To 20MHz | 1% of Vout | mVp-p | ||
| Transient response setting time | 25% load step change | 300 | us | ||
| External Trim Adj. Range | ± 10 | % |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | 300 | KHz | |||
| Operating Temperature | Refer to temperature derating graph (with derating) | -40 | +82 | °C | |
| Temperature Coefficient | 100% Load | ±0.02 | %/°C | ||
| Humidity | Non Condensing | 5 | 95 | % | |
| Cooling | Natural Convection (20LFM) | ||||
| Case Material | Nickel Coated with Non-Conductive Base | ||||
| Weight | 70 | g | |||

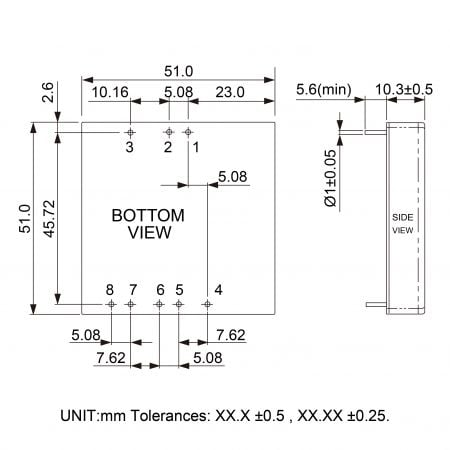

| Dimensions | 51.0 x 51.0 x 10.3 | mm | |||
| Potting Material | Epoxy (UL94V-0 rated) | ||||
| Remote ON/OFF | ON | Open | |||
| OFF | Short to -Vin | ||||
| Isolation Voltage | 1500 | VDC | |||
| MTBF | MIL-HDBK-217F @25℃ , Ground Benign | 151100 | Hours | ||
| Storage Temperature | -55 | +125 | °C | ||
| Case Temperature | +105 | °C | |||
| Isolation Capacitance | 2500 | pF | |||
