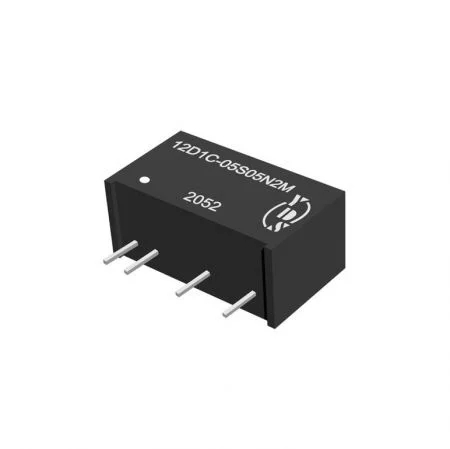

2W DC to DC Power Conversion for Medical Applications
Medical DC-DC power converter featuring 5KVac and 6KVdc isolation voltage with 2W output. The 12D1C-N2M series delivers stable and safe power conversion for medical equipment, using a 7-pin SIP package and unregulated output design. Certified to IEC/EN 60601-1, ANSI/AAMI ES 60601-1, and IEC/EN/UL 62368-1 standards. Operating temperature ranges from -40°C to +105°C with efficiency up to 84%.
Our Medical power supply solutions are engineered to meet the highest safety standards for healthcare applications. Featuring 2xMOPP (Means of Patient Protection) reinforced isolation, our products, including the specialized medical dc dc converter 60601-1, ensure maximum protection for both patients and operators. Each 2xMOPP DC-DC Converter is designed with high isolation and ultra-Low leakage power supply characteristics, making them ideal for sensitive diagnostic and monitoring equipment where safety and reliability are critical.
Yuan Dean DC-DC converters are RoHS compliant, customizable, and come with a 3-year warranty.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Output Voltage Vdc | Output Current mA | Efficiency %TYP | Capacitive Load(µF) Max. |
|---|---|---|---|---|
| 12D1C-05S05N2M | 5 | 400 | 80 | 1000 |
| 12D1C-05S09N2M | 9 | 222 | 80 | 680 |
| 12D1C-05S12N2M | 12 | 167 | 81 | 330 |
| 12D1C-05S15N2M | 15 | 133 | 81 | 330 |
| 12D1C-05S24N2M | 24 | 84 | 81 | 100 |
| 12D1C-05D05N2M | ±5 | ±200 | 80 | 470 |
| 12D1C-05D09N2M | ±9 | ±111 | 80 | 330 |
| 12D1C-05D12N2M | ±12 | ±84 | 81 | 100 |
| 12D1C-05D15N2M | ±15 | ±67 | 81 | 1000 |
| 12D1C-05D24N2M | ±24 | ±42 | 81 | 47 |
| 12D1C-XXS05N2M | 5 | 400 | 80 | 1000 |
| 12D1C-XXS09N2M | 9 | 222 | 82 | 680 |
| 12D1C-XXS12N2M | 12 | 167 | 84 | 470 |
| 12D1C-XXS15N2M | 15 | 133 | 84 | 470 |
| 12D1C-XXS24N2M | 24 | 84 | 84 | 100 |
| 12D1C-XXD05N2M | ±5 | ±200 | 80 | 470 |
| 12D1C-XXD09N2M | ±9 | ±111 | 82 | 330 |
| 12D1C-XXD12N2M | ±12 | ±84 | 84 | 220 |
| 12D1C-XXD15N2M | ±15 | ±67 | 84 | 220 |
| 12D1C-XXD24N2M | ±24 | ±42 | 84 | 47 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | Vo, Io Nom | ±10 | % | ||
| Filter | Capacitor |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% Full Load | ±5 | % | ||
| Short Circuit Protection | Continuous | ||||
| Line Regulation | For 1.0% of Vin | 1.2 | % | ||
| Load Regulation | 5V (10% To 100% F.L) | 20 | % | ||
| Other output (10% To 100% F.L) | 15 | % | |||
| Ripple & Noise | BW=DC To 20MHz@Vo:5V | 100 | 150 | mVp-p | |
| BW=DC To 20MHz@ Other | 80 | 120 | mVp-p | ||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | Full load, nominal input @5V Vin | 215 | KHz | ||
| Full load, nominal input @other Vin | 250 | KHz | |||
| Operating Temperature | -40 | +105 | °C | ||
| Patient Leakage Current | 250VAC, 50/60Hz | 1.5 | µA | ||
| Isolation Capacitance | Input-output, 100KHz/0.1V | 4 | pF | ||
| Storage Temperature | -55 | +125 | °C | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case material | DAP | ||||
| MTBF | MIL-HDBK-217F@25°C | 6800000 | Hours | ||
| Weight | 4 | g | |||

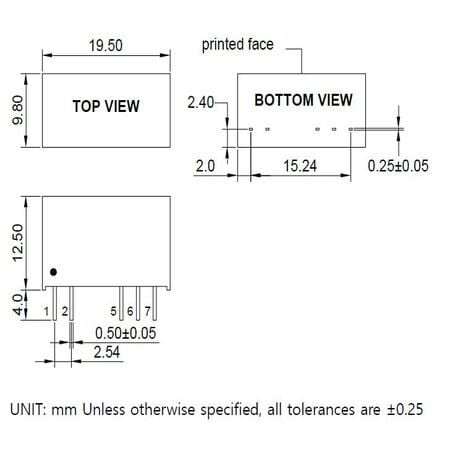

| Dimensions | 19.5 x 9.8 x 12.5 | mm | |||
