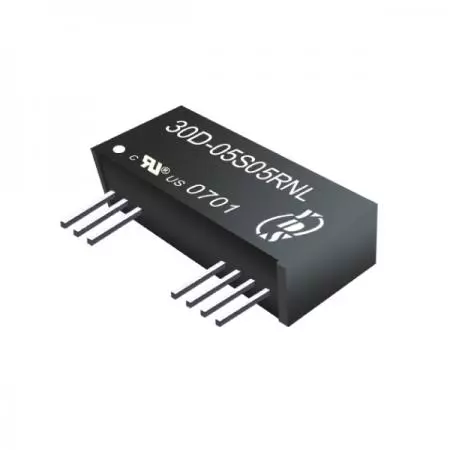

1.8W SIP12 Regulated Single/Dual Output DC to DC Converter For Industry and Sensing equipment
1.8 watt 0.5KV isolation SIP-12 DC to DC power converter. This power conversion is available in regulated output and unregulated output. The efficiency is up to 85%. The operating ambient temperature is from -40°C to +85°C. Some models of the 30D series have passed UL certification. It has industry standard pins and internal SMD construction. No external components are required.
Our company, a professional DC-DC converter manufacturer, provides DC-DC Converter OEM/ODM Service with the 30D series. This Industrial Grade Board mount isolated DC-DC converter offers both Regulated/Unregulated DC to DC Converter and Isolated DC to DC Converter options. As a Cost-effective DC-DC converter and Economical DC-DC Converter, it is a RoHS & REACH Compliant DC-DC Converter perfect for industrial equipment, sensing devices, electronic instruments, wireless networks, telecom/datacom, and measurement technology.
The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Output Voltage | Output Current | Efficiency | Recognized By UL 60950-1 |
|---|---|---|---|---|
| Vdc | mA | % TYP | ||
| 30D-XXS05RNL | 5 | 360 | 58 | 30D-05S05NNL 30D-05S05RNL 30D-05S24RNL 30D-12S24NNL 30D-15S15NNL 30D-24S05NNL 30D-24S05RNL |
| 30D-XXS05NNL | 5 | 360 | 70 | |
| 30D-XXD05NNL | ± 5 | ± 180 | 70 | |
| 30D-XXS09RNL | 9 | 200 | 60 | |
| 30D-XXS09NNL | 9 | 200 | 70 | |
| 30D-XXD09NNL | ± 9 | ± 100 | 70 | |
| 30D-XXS12RNL | 12 | 150 | 60 | |
| 30D-XXS12NNL | 12 | 150 | 75 | |
| 30D-XXD12RNL | ± 12 | ± 75 | 60 | |
| 30D-XXD12NNL | ± 12 | ± 75 | 75 | |
| 30D-XXS15RNL | 15 | 120 | 60 | |
| 30D-XXS15NNL | 15 | 120 | 75 | |
| 30D-XXD15RNL | ± 15 | ± 60 | 60 | |
| 30D-XXD15NNL | ± 15 | ± 60 | 75 | |
| 30D-XXS24RNL | 24 | 75 | 60 | |
| 30D-XXS24NNL | 24 | 75 | 80 | |
| 30D-XXD24RNL | ± 24 | ± 38 | 60 | |
| 30D-XXD24NNL | ± 24 | ± 38 | 80 |
Note:
1. "XX" Is Input Voltage: 05 = 5Vdc, 09 = 9Vdc, 12 = 12Vdc, 15 = 15Vdc, 24 = 24Vdc.
2. The input voltage increases, there will be an increase in efficiency.
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | Vo, Io Nom | ± 10 | % | ||
| Filter | Capacitor |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ± 5 | % | ||
| Short Circuit Protection | Regulated (Continuous) | ||||
| Short Circuit Protection | Unregulated (Short Trem) | 1 | Sec | ||
| Line Regulation | Regulated | ± 0.3 | % | ||
| Load Regulation | Regulated | ± 0.5 | % | ||
| Ripple & Noise | BW=DC To 20MHz | 50 | mVp-p | ||
| Line Regulation | Unregulated (For 1% of Vin) | 1.2 | % | ||
| Load Regulation | Unregulated (20% To 100% F.L) | 10 | % | ||
| Transient Response Setting Time | 50% load step change | 350 | us |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | Full load, nominal input | 100 | KHz | ||
| Operating Temperature | -40 | +85 | °C | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case Material | DAP | ||||
| MTBF | MIL-HDBK-217F @25°C (Unregulated) | 2500000 | Hours | ||
| MTBF | MIL-HDBK-217F @25°C (Regulated) | 1500000 | Hours | ||
| Weight | 8.3 | g | |||

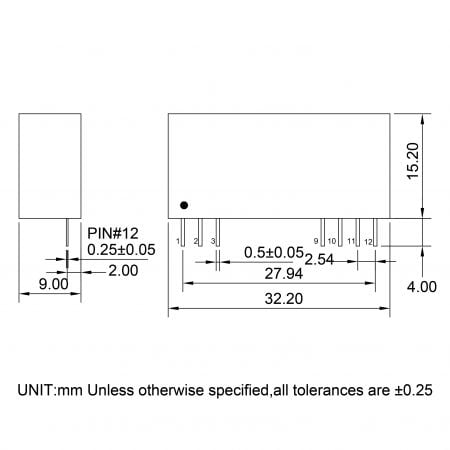

| Dimensions | 32.2 x 9.0 x 15.2 | mm | |||
