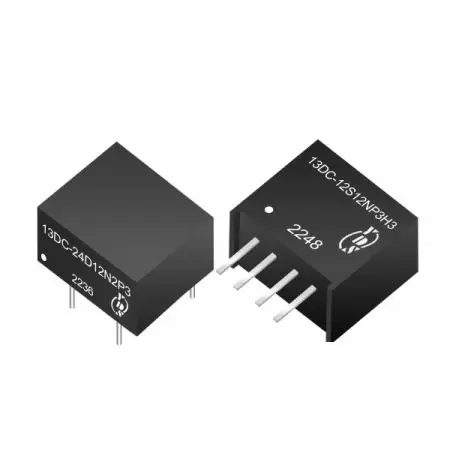

Dc to DC Converter 3W Economic benefits For Industry and Telecom/Datacom equipment
4PIN SIP and 8PIN DIL package 3W high efficient DC-DC converter is typically used in cost sensitive, general purpose power isolation and voltage matching applications. It is a fully specified converter with 1.5KVDC and 3KVDC isolation. The operating temperature is from -40°C to + 85°C. The efficiency is as high as 88%.
High Efficiency Isolated DC-DC Power Modules from a leading manufacturer. Our UL certified, CB Report, and economical PCB mount converters provide reliable power for industrial equipment, electronic instruments, wireless networks, and telecom.
Our DC-DC power converter products are RoHS compliant and can be customized, with a 3-year warranty on sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Output Voltage | Output Current | Efficiency | Capacitive Load(μF) | Package Style |
|---|---|---|---|---|---|
| Vdc | mA | %TYP | Max. | ||
| 13DC-12S05NXP3(H3) | 5 | 600 | 85 | 1000 | 1/2 |
| 13DC-12S12NXP3(H3) | 12 | 250 | 87 | 220 | 1/2 |
| 13DC-12S15NXP3(H3) | 15 | 200 | 88 | 220 | 1/2 |
| 13DC-12S24NXP3(H3) | 24 | 125 | 88 | 47 | 1/2 |
| 13DC-12D05N2P3(H3) | ± 5 | ± 300 | 86 | ± 560 | 2 |
| 13DC-12D12N2P3(H3) | ± 12 | ± 125 | 86 | ± 100 | 2 |
| 13DC-12D15N2P3(H3) | ± 15 | ± 100 | 88 | ± 100 | 2 |
| 13DC-12D24N2P3(H3) | ± 24 | ± 63 | 88 | ± 22 | 2 |
| 13DC-15S05NXP3(H3) | 5 | 600 | 85 | 1000 | 1/2 |
| 13DC-15S12NXP3(H3) | 12 | 250 | 87 | 220 | 1/2 |
| 13DC-15S15NXP3(H3) | 15 | 200 | 88 | 220 | 1/2 |
| 13DC-15S24NXP3(H3) | 24 | 125 | 88 | 47 | 1/2 |
| 13DC-15D05N2P3(H3) | ± 5 | ± 300 | 86 | ± 560 | 2 |
| 13DC-15D12N2P3(H3) | ± 12 | ± 125 | 86 | ± 100 | 2 |
| 13DC-15D15N2P3(H3) | ± 15 | ± 100 | 88 | ± 100 | 2 |
| 13DC-15D24N2P3(H3) | ± 24 | ± 63 | 88 | ± 22 | 2 |
| 13DC-24S05NXP3(H3) | 5 | 600 | 85 | 1000 | 1/2 |
| 13DC-24S12NXP3(H3) | 12 | 250 | 87 | 220 | 1/2 |
| 13DC-24S15NXP3(H3) | 15 | 200 | 88 | 220 | 1/2 |
| 13DC-24S24NXP3(H3) | 24 | 125 | 88 | 47 | 1/2 |
| 13DC-24D05N2P3(H3) | ± 5 | ± 300 | 86 | ± 560 | 2 |
| 13DC-24D12N2P3(H3) | ± 12 | ± 125 | 86 | ± 100 | 2 |
| 13DC-24D15N2P3(H3) | ± 15 | ± 100 | 88 | ± 100 | 2 |
| 13DC-24D24N2P3(H3) | ± 24 | ± 63 | 88 | ± 22 | 2 |
Note:
1. No suffix is standard isolation (1.5KVDC) e.g, 13DC-12S05NP3, *add suffix “H3”for 3KVDC isolation, e.g, 13DC-12S05NP3H3.
2. X = 1 or 2 package, No suffix X package1, When X=2, package2, and so on, e.g,13DC-12S05N2P3.
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Range | Vo,Io Nom | ± 10 | % | ||
| Filter | Capacitor |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ± 5 | % | ||
| Short Circuit Protection | Continuous | ||||
| Line Regulation | For 1.0% of Vin | 1.2 | % | ||
| Load Regulation | 5V(10% To 100% F.L) | 9 | 15 | % | |
| 12V(10% To 100% F.L) | 7 | 10 | % | ||
| 15V(10% To 100% F.L) | 6 | 10 | % | ||
| 24V(10% To 100% F.L) | 5 | 10 | % | ||
| Ripple & Noise | BW=DC To 20MHz | 100 | 150 | mVp-p | |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Isolation Capacitance | Input-output,100KHz/0.1V | 20 | pF | ||
| Switching Frequency | Full load, nominal input | 250 | KHz | ||
| Operating Temperature | -40 | +85 | °C | ||
| Storage Temperature | -55 | +125 | °C | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case material | DAP | ||||
| MTBF | MIL-HDBK-217F @25°C | 3500000 | Hours | ||
| Weight | Package 1 | 1.9 | g | ||
| Package 2 | 1.9 | g | |||

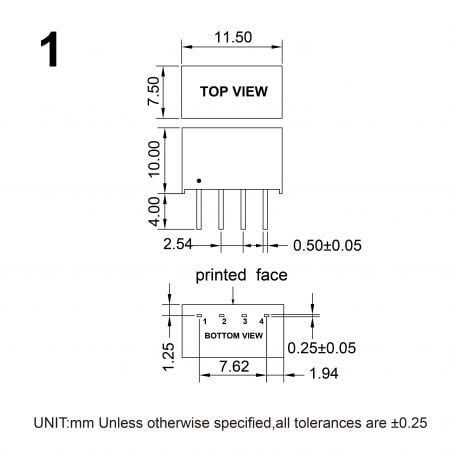

| Dimensions | Package 1 | 11.50x7.50x10.00 | mm | ||

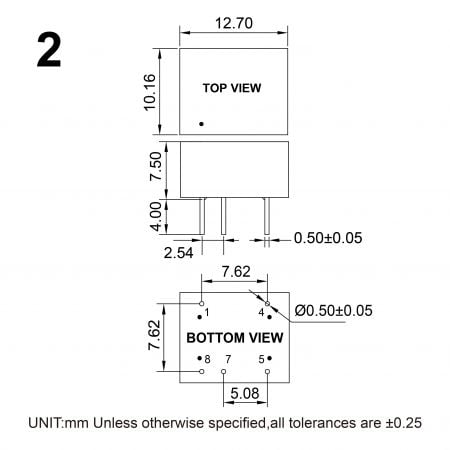

| Package 2 | 12.70x10.16x7.50 | mm | |||
