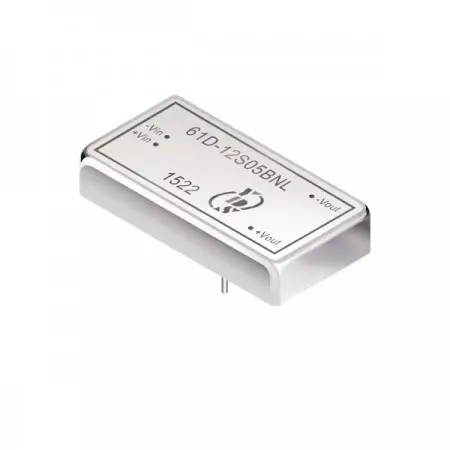

10 Watt Regulated Power Module | 9-18V, 18-36V, 36-72V Inputs | Single & Dual Output | 1.15cm DIL6 DIP6 For Industry and Instruments equipment
1.5KV isolated voltage 10 watt DC to DC power converter has a wide input 2:1 voltage range. There are single output and dual output specifications to choose from. 61D-BNL series is available in DIL package with 11.5mm Height. The operating environment temperature is from -40°C to +87°C. The highest efficiency can reach 82%. This product uses UL94V-0 packaging material. This power converter will test by 100% high temperature pre-burn before shipment.
Powering everything from sensing devices to aviation applications, our Isolated DC-DC Converter series ensures peak performance across diverse environments. As a professional manufacturer, we provide the Wide Input DC-DC Converter and Regulated DC-DC Converter as a reliable board mount DC to DC converter for electronic instruments. This industrial isolated DC-DC converter functions as an Economical DC to DC Converter with an integrated Short Circuit Protection DC-DC Module and efficient switching regulator. Whether you need an OEM DC-DC Power Module or RoHS & REACH Compliant Power for wireless networks, telecom/datacom, or measurement technology, our 61D-BNL series delivers the precision your industrial equipment requires.
The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!

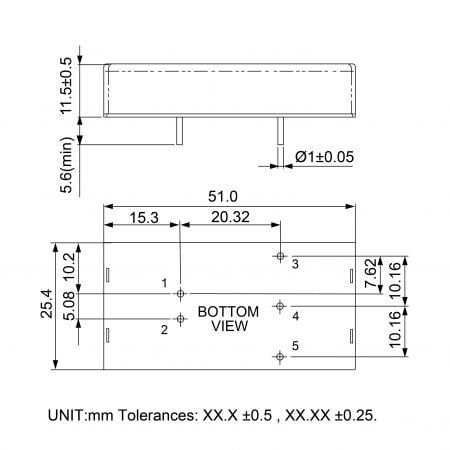

| Quantity: | |
|---|---|
| Part Number | Input Voltage | Input Current | Output Voltage | Output Current | Efficiency | Capacitor Load | |
|---|---|---|---|---|---|---|---|
| Vdc | No-Load (mA TYP) | Full Load (mA TYP) | Vdc | Full Load (mA) | %TYP | uF TYP | |
| 61D-12S03BNL | 9-18 | 30 | 733 | 3.3 | 2000 | 75 | 2200 |
| 61D-12S05BNL | 9-18 | 30 | 1054 | 5 | 2000 | 79 | 2200 |
| 61D-12S12BNL | 9-18 | 30 | 1041 | 12 | 833 | 80 | 1000 |
| 61D-12S15BNL | 9-18 | 30 | 1027 | 15 | 666 | 81 | 470 |
| 61D-12S24BNL | 9-18 | 30 | 1014 | 24 | 416 | 82 | 330 |
| 61D-12D05BNL | 9-18 | 30 | 1054 | ± 5 | ± 1000 | 79 | ± 1000 |
| 61D-12D12BNL | 9-18 | 30 | 1027 | ± 12 | ± 416 | 81 | ± 470 |
| 61D-12D15BNL | 9-18 | 30 | 1014 | ± 15 | ± 333 | 82 | ± 330 |
| 61D-12D24BNL | 9-18 | 30 | 1014 | ± 24 | ± 208 | 82 | ± 220 |
| 61D-24S03BNL | 18-36 | 25 | 366 | 3.3 | 2000 | 75 | 2200 |
| 61D-24S05BNL | 18-36 | 25 | 527 | 5 | 2000 | 79 | 2200 |
| 61D-24S12BNL | 18-36 | 25 | 514 | 12 | 833 | 81 | 680 |
| 61D-24S15BNL | 18-36 | 25 | 507 | 15 | 666 | 82 | 470 |
| 61D-24S24BNL | 18-36 | 25 | 507 | 24 | 416 | 82 | 470 |
| 61D-24D05BNL | 18-36 | 25 | 527 | ± 5 | ± 1000 | 79 | ± 1000 |
| 61D-24D12BNL | 18-36 | 25 | 514 | ± 12 | ± 416 | 81 | ± 470 |
| 61D-24D15BNL | 18-36 | 25 | 514 | ± 15 | ± 333 | 81 | ± 330 |
| 61D-24D24BNL | 18-36 | 25 | 507 | ± 24 | ± 208 | 82 | ± 220 |
| 61D-48S03BNL | 36-72 | 20 | 183 | 3.3 | 2000 | 75 | 2200 |
| 61D-48S05BNL | 36-72 | 20 | 263 | 5 | 2000 | 79 | 2200 |
| 61D-48S12BNL | 36-72 | 20 | 257 | 12 | 833 | 81 | 680 |
| 61D-48S15BNL | 36-72 | 20 | 257 | 15 | 666 | 81 | 470 |
| 61D-48S24BNL | 36-72 | 20 | 253 | 24 | 416 | 82 | 330 |
| 61D-48D05BNL | 36-72 | 20 | 263 | ± 5 | ± 1000 | 79 | ± 1000 |
| 61D-48D12BNL | 36-72 | 20 | 253 | ± 12 | ± 416 | 82 | ± 470 |
| 61D-48D15BNL | 36-72 | 20 | 253 | ± 15 | ± 333 | 82 | ± 330 |
| 61D-48D24BNL | 36-72 | 20 | 253 | ± 24 | ± 208 | 82 | ± 220 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Types | 2:1 | ||||
| Filter | Pi TYPE |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | ± 2 | % | |||
| Short Circuit Protection | Continuous | ||||
| Line Regulation | ± 0.5 | % | |||
| Load Regulation | Single (25% to 100%) | ± 0.5 | % | ||
| Load Regulation | Dual | ± 2.0 | % | ||
| Ripple & Noise | BW=DC To 20MHz | 100 | mVp-p | ||
| Transient response setting time | 25% load step change | 350 | us |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | 200 | KHz | |||
| Operating Temperature | -40 | +87 | °C | ||
| Temperature Coefficient | 100% Load | ±0.02 | %/°C | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Natural Convection (20LFM) | ||||
| Case Material | Copper | ||||
| Weight | 36.5 | g | |||
| Dimensions | 51.0 x 25.4 x 11.5 | mm | |||
| Potting Material | Silicone(UL94V-0 rated) | ||||
| Radiated Emissions | EN55022 | CLASS A | |||
| FCC 47 CFR Part 15 subpart A | CLASS A | ||||
%/°C |
