DC-DC Converter, 20W Single & Dual Regulated Output Power,1.6KV Isolation, 4:1 Wide Input Range, DIL24 Package

5 0 Reviews

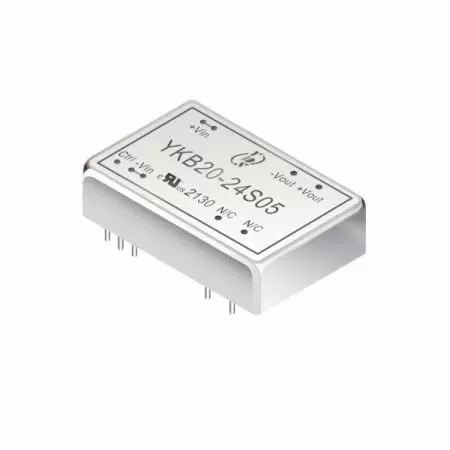

DC-DC Converter, 20W Single & Dual Regulated Output Power,1.6KV Isolation, 4:1 Wide Input Range, DIL24 package

YKB20 Series

DC-DC Converter, 1.25'' x 0.8'' size, 4:1 Wide Range Input, 24PIN DIL Package, Single & Dual Regulated Output For Industry and Instruments equipments

20 watt 4:1wide input voltage range DC to DC power converter with 24 pin DIL package. YKB20 series has a 1.6KV isolation voltage and single/dual output specifications. This product uses UL94V-0 packaging material. The operating environment temperature is from -40°C to +87°C. The efficiency is up to 91%. This product will test by 100% high temperature pre-burn before shipment.

Our High efficiency 20W isolated DC-DC solution delivers a Low EMI 20W DC-DC converter in a Compact 20W isolated converter design, perfect for sensitive measurement and telecom equipment. This industrial isolated DC-DC converter is UL/cUL/IEC/EN 62368-1 approved and EMC EMI EN55032/EMS EN55035/Canadian ICES-003 issue7(2020)/47CFR FCC Part 15 subpart B certified. As an OEM/ODM DC to DC Power Module specialist, we offer Customized DIL DC to DC Converter and PCB mount DC-DC converter options, ensuring every safety certified DC-DC converter is RoHS & REACH Compliant DC-DC Converter.

The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.

Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!

Quantity:
Inquire Add to Basket

20W 1.6KV Isolation 4:1 DIP DC-DC Converter(YKB20 Series)
Features
  • 20W DIL package.
  • 4:1 Wide Input Voltage Range.
  • High Efficiency Up to 91%.
  • Regulated Output Types.
  • No Minimum Load Required.
  • Over Power and Short Circuit Protection.
  • UL94V-0 package material.
  • Operating Temperature: -40°C to +87°C(with derating).
  • UL94V-0 Package Material.
  • 100% Burned In.
  • UL/cUL/IEC/EN 62368-1 approved, CB-Report, CE Marking.
  • EMC standard of EMI EN55032:2015 approved.
  • EMC standard of EMS EN55035:2017 approved.
  • EMC standard of Canadian ICES-003 issue7(2020) approved.
  • EMC standard of 47CFR FCC Part 15 subpart B approved.
Applications
  • Industry equipment.
  • Sensing equipment.
  • Instruments.
  • Wireless Network.
  • Telecom/Datacom.
  • Measurement.
  • Aviation.
Specifications typical at TA = 25°C, nominal input voltage and rated output current unless otherwise specified
Part Number Input
Voltage
Range		 Input Current Output Voltage Output Current Efficiency Maximum
Capacitor
Load
No Load Full Load
Vdc mA(TYP) mA(TYP) Vdc mA(TYP) %(TYP) μF
YKB20-24S05 9-36 7 958 5 4000 87 6800
YKB20-24S12 9-36 7 938 12 1670 89 1200
YKB20-24S15 9-36 7 934 15 1330 89 750
YKB20-24S24 9-36 7 915 24 833 91 300
YKB20-24D12 9-36 7 936 ± 12 ± 833 89 ± 820
YKB20-24D15 9-36 7 934 ± 15 ± 665 89 ± 560
YKB20-48S05 18-75 4 474 5 4000 88 6800
YKB20-48S12 18-75 4 469 12 1670 89 1200
YKB20-48S15 18-75 4 467 15 1330 89 750
YKB20-48S24 18-75 4 463 24 833 90 300
YKB20-48D12 18-75 7 468 ± 12 ± 833 89 ± 820
YKB20-48D15 18-75 7 467 ± 15 ± 665 89 ± 560
Input Specifications
Parameters Conditions Min Typ Max Units
Input Voltage 24V Models 9 36 Vdc
48V Models 18 75 Vdc
Input Surge Voltage
(100 ms max.)		 24V Models -0.7 50 Vdc
48V Models -0.7 100 Vdc
Start-up Voltage 24V Models 9 Vdc
48V Models 18 Vdc
Under Voltage Shutdown 24V Models 7.5 Vdc
48V Models 16 Vdc
Start-up Time Constant Resistive Load,
Nominal Vins		 Power-up 30 ms
Remote ON/OFF 30 ms
Input Filter All Models Internal Pi type
Remote ON/OFF
(Ctrl PIN Refer To –Vin PIN)		 Positive Logic DC/DC ON Open or 3.5 Vdc - 12 Vdc
DC/DC OFF Short or 0 Vdc – 1.2 Vdc
Input Current Of Ctrl PIN -0.5 0.5 mA
Remote Off Input Current 3 mA
Output Specifications
Parameters Conditions Min Typ Max Units
Voltage Tolerance 100% load -2 +2 %
Line Regulation Vin(min) to Vin(max) @100% Load -0.2 +0.2 %
Load Regulation 0% Load to 100% Load 5V Output -1 +1 %
Other Output -0.5 +0.5 %
Load Cross Regulation Asymmetrical Load
25% / 100% Load		 Dual Output -5.0 +5.0 %
Ripple & Noise
(BW=20MHz)		 With a 0.1uF MLCC 5Vout 100 mVp-p
12Vout, ± 12Vout 100
15Vout, ± 15Vout 100
24Vout 150
Transient Response Setting Time 25% Load Step Change 300 500 μs
Transient Response Deviation 25% Load Step Change -5 ± 3 +5 %
Temperature Coefficient -0.02 +0.02 %/°C
Output Power Protection % of Io, Hiccup mode,
Auto-recovery		 120 150 180 %
Short Circuit Protection Continuous [Hiccup Mode] ,Auto-Recovery
Over Voltage Protection 5Vout 6.2 Vdc
12Vout 15 Vdc
15Vout 18 Vdc
24Vout 30 Vdc
General Specifications
Parameters Conditions Min Typ Max Units
Isolation Voltage Input To Output (60sec) 1600 Vdc
Input(Output) To Case (60sec) 1000 Vdc
Isolation Resistance 500Vdc 1000 MΩ
Isolation Capacitance 100kHz, 1V 2200 pF
Switching Frequency 100% Load,
Nominal Input		 5V Output 250 KHz
Other Output 330 KHz
Operating Ambient Temperature
(Power Derating See Derating Graph)		 Nominal Vin,
100% Load		 YKB20-24S05 -40 51.2 °C
YKB20-48S05 55.9 °C
YKB20-24S12,
YKB20-24S15,
YKB20-24D12,
YKB20-24D15,
YKB20-48S12,
YKB20-48S15,
YKB20-48D12,
YKB20-48D15		 60.5 °C
YKB20-24S24 69.4 °C
YKB20-48S24 65 °C
Thermal Impedance 20LFM 18 °C/W
100LFM 14.7
200LFM 11.5
400LFM 8
Maximum Case Temperature 105 °C
Storage Temperature -55 125 °C
Humidity Non Condensing 5 95 %
Cooling Natural Convection
Case Material Copper
Potting Material Silicone (UL94-V0)
MTBF MIL-HDBK-217F@25°C (calculated) 4.47X105 Hours
Weight 18 g
Dimensions 31.6 x 20.1 x 10.0 mm
