3 Watt DC to DC Power Module | 1.25"x0.8" Size | 86% Efficiency | Single & Dual Output | Short Circuit Protection For Measurement and Instrument equipments

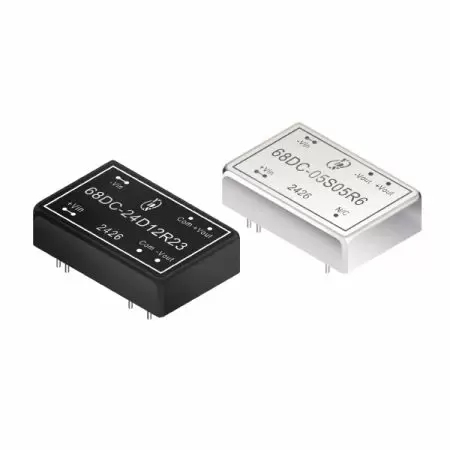

3watt 1.5KV~3KV isolation DC to DC power converter has wide input 4:1 voltage range. It has single output and dual output specifications. 68DC-3W series is available in a 24 pin DIL package. The efficiency is up to 88%. The operating ambient temperature is from -40°C to +85°C.
As a DC-DC converter manufacturer DIP module specialist who understands your needs, we provide a High Efficiency 3W DC-DC solution for industrial equipment and aerospace. This industrial wide input DC DC converter features a safety isolated DC-DC converter design and Short Circuit Protection DC-DC Module, ideal for PCB mount DC DC converter DIP integration. Our Cost-effective DC-DC converter is RoHS & REACH Compliant Power certified, ensuring reliable Isolated DC-DC Converter performance for wireless networks and measurement technology. Whether you need a low power DC DC converter module or a customized DC to DC Converter OEM/ODM Service, we deliver the perfect industrial DC DC converter.
The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Input Voltage | Output Voltage | Output Current | Input Current | Efficiency | Capacitive Load(μF) | Package Style | |
|---|---|---|---|---|---|---|---|---|
| No Load | Full Load | |||||||
| Vdc | Vdc | mA | mA | %TYP | %TYP | Max. | ||
| 68DC-05S03RX3 | 4.5-18 | 3.3 | 909 | 10 | 810.7 | 74 | 1000 | 1/2 |
| 68DC-05S05RX3 | 4.5-18 | 5 | 600 | 10 | 769.2 | 78 | 1000 | 1/2 |
| 68DC-05S09RX3 | 4.5-18 | 9 | 333 | 10 | 768.5 | 78 | 470 | 1/2 |
| 68DC-05S12RX3 | 4.5-18 | 12 | 250 | 10 | 750.0 | 80 | 330 | 1/2 |
| 68DC-05S15RX3 | 4.5-18 | 15 | 200 | 10 | 750.0 | 80 | 100 | 1/2 |
| 68DC-05S24RX3 | 4.5-18 | 24 | 125 | 10 | 750.0 | 80 | 100 | 1/2 |
| 68DC-05D05RX3 | 4.5-18 | ± 5 | ± 300 | 10 | 769.2 | 78 | 1000 | 1/2 |
| 68DC-05D12RX3 | 4.5-18 | ± 9 | ± 167 | 10 | 770.8 | 78 | 1000 | 1/2 |
| 68DC-05D12RX3 | 4.5-18 | ± 12 | ± 125 | 10 | 750.0 | 80 | 470 | 1/2 |
| 68DC-05D15RX3 | 4.5-18 | ± 15 | ± 100 | 10 | 750.0 | 80 | 330 | 1/2 |
| 68DC-24S03RX3 | 9-36 | 3.3 | 909 | 5 | 160.2 | 78 | 4700 | 1/2 |
| 68DC-24S05RX3 | 9-36 | 5 | 600 | 5 | 152.4 | 82 | 2200 | 1/2 |
| 68DC-24S09RX3 | 9-36 | 9 | 333 | 5 | 148.7 | 84 | 2200 | 1/2 |
| 68DC-24S12RX3 | 9-36 | 12 | 250 | 5 | 148.8 | 84 | 2700 | 1/2 |
| 68DC-24S15RX3 | 9-36 | 15 | 200 | 5 | 145.3 | 86 | 2200 | 1/2 |
| 68DC-24S24RX3 | 9-36 | 24 | 125 | 5 | 147.1 | 85 | 1800 | 1/2 |
| 68DC-24D05RX3 | 9-36 | ± 5 | ± 300 | 5 | 152.4 | 82 | 2200 | 1/2 |
| 68DC-24D09RX3 | 9-36 | ± 9 | ± 167 | 5 | 149.1 | 84 | 2200 | 1/2 |
| 68DC-24D12RX3 | 9-36 | ± 12 | ± 125 | 5 | 148.8 | 84 | 1800 | 1/2 |
| 68DC-24D15RX3 | 9-36 | ± 15 | ± 100 | 5 | 145.3 | 86 | 1000 | 1/2 |
| 68DC-48S03RX3 | 18-75 | 3.3 | 909 | 5 | 82.2 | 76 | 4700 | 1/2 |
| 68DC-48S05RX3 | 18-75 | 5 | 600 | 5 | 76.2 | 82 | 4700 | 1/2 |
| 68DC-48S09RX3 | 18-75 | 9 | 333 | 5 | 75.2 | 83 | 3300 | 1/2 |
| 68DC-48S12RX3 | 18-75 | 12 | 250 | 5 | 72.7 | 86 | 2700 | 1/2 |
| 68DC-48S15RX3 | 18-75 | 15 | 200 | 5 | 72.7 | 86 | 2200 | 1/2 |
| 68DC-48S24RX3 | 18-75 | 24 | 125 | 5 | 74.4 | 84 | 1000 | 1/2 |
| 68DC-48D05RX3 | 18-75 | ± 5 | ± 300 | 5 | 76.2 | 82 | 2200 | 1/2 |
| 68DC-48D12RX3 | 18-75 | ± 12 | ± 125 | 5 | 74.4 | 84 | 1800 | 1/2 |
| 68DC-48D15RX3 | 18-75 | ± 15 | ± 100 | 5 | 73.5 | 85 | 1000 | 1/2 |
Note:
1. X represents packaging. When there is no tail decoration, the CASE material is copper shell nickel plated with an isolation voltage of 1.5KVdc. When X=2, the CASE material is DAP with an isolation voltage of 3KVdc
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Types | input | 4:1 | |||
| Filter | Pi filter | ||||
| Surge Voltage | 5VDC (1sec. max.) | 25 | V | ||
| 24VDC (1sec. max.) | 50 | V | |||
| 48VDC (1sec. max.) | 100 | V | |||
| Start-up Voltage | 5VDC | 4.5 | V | ||
| 24VDC | 9 | V | |||
| 48VDC | 18 | V | |||
| Input Undervoltage Protection | 5VDC | 4 | V | ||
| 24VDC | 7 | V | |||
| 48VDC | 15 | V | |||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | ± 1 | ± 3 | % | ||
| Short Circuit Protection | Continuous | ||||
| Temperature Coefficient | Full load | ± 0.03 | %/℃ | ||
| Line Regulation | ± 0.5 | % | |||
| Load Regulation | Single (F.L To 10% Load) | ± 0.8 | % | ||
| Load Regulation | Dual (F.L To 10% Load) | ± 1.0 | % | ||
| Ripple & Noise | BW=DC To 20MHz | 100 | mVp-p | ||
| Transient response setting time | 50% load step change | 350 | us | ||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Isolation Capacitance | Input-output capacitance at 100kHz/0.1V | 1000 | pF | ||
| Switching Frequency | 330 | KHz | |||
| Operating Temperature | Temperature Derating Graph | -40 | +85 | °C | |
| Storage Temperature | -55 | +125 | °C | ||
| Pin Soldering Resistance Temperature | Soldering spot is 1.5mm away from case for 10 | +300 | °C | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case Material | Packing1 | Nickel Coated Copper With Non-Conductive Base | |||
| Packing2 | DAP | ||||
| Weight | Packing1/2 | 16.8/12.8 | g | ||

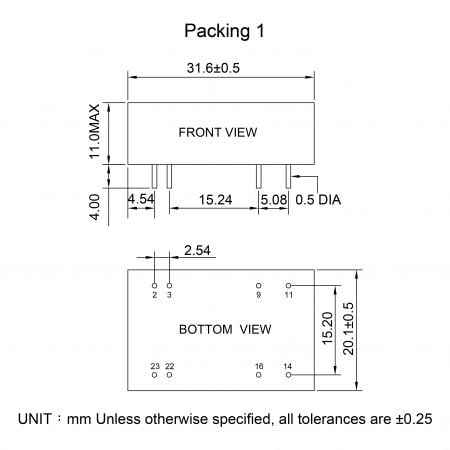

| Dimensions | Packing1 | 31.6x20.1x11.0 | mm | ||

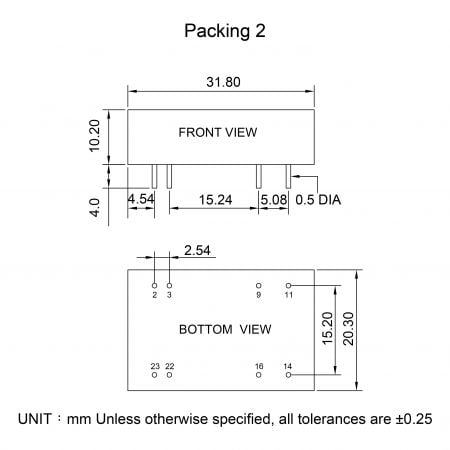

| Packing2 | 31.8x20.3x10.2 | mm | |||
