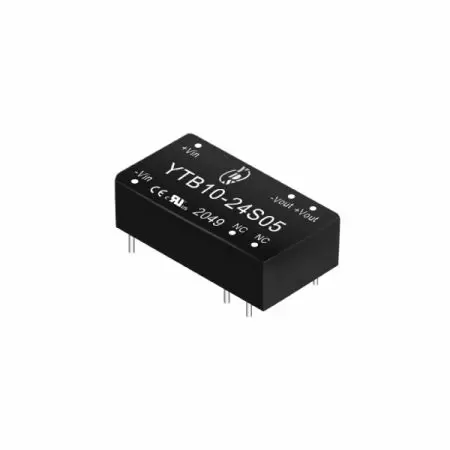

Space Saving DC-DC Converter Module For Portable Instrumentation and IoT & Sensor Networks
Space saving 10Watt DC-DC converter YTB10 series has a compact size of only 24.3 x 14.3 x 9.8mm and ultra-wide input voltage range for 9-36V, 18-75V. The operating temperature is up to 77°C at full load, and up to 91°C with 50% loading.
Its performance is not limited by its size, the efficiency is up to 88%. This model makes it possible to meet the demand for space critical project with high power density.
This ultra compact DC-DC converter is a high efficiency DC-DC converter 10W designed as an industrial wide input converter for space-critical applications. The miniature DC-DC converter 10W features a space saving DC DC converter design and PCB mount DC-DC converter DIP package, ideal for distributed power architecture module systems. As a reliable DC-DC converter module and IoT power module DC-DC, it meets EMC EMI EN55032/EMS EN55035/Canadian ICES-003 issue7(2020)/47CFR FCC Part 15 subpart B certified standards and RoHS/REACH compliant power module requirements. Suitable for industrial equipment, sensing, instrumentation, wireless, telecom/data communication, measurement, and aerospace applications.
The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Input Voltage Range | Input Current | Output Voltage | Output Current | Efficiency | Maximum Capacitor Load | |
|---|---|---|---|---|---|---|---|
| No-Load | Full-Load | ||||||
| Vdc | (mA TYP) | (mA TYP) | Vdc | (mA TYP) | %TYP | uF | |
| YTB10-24S05 | 9-36 | 9 | 496 | 5 | 2000 | 84 | 2200 |
| YTB10-24S12 | 9-36 | 9 | 479 | 12 | 833 | 87 | 660 |
| YTB10-24S15 | 9-36 | 9 | 473 | 15 | 666 | 88 | 470 |
| YTB10-24S24 | 9-36 | 9 | 483 | 24 | 416 | 88 | 240 |
| YTB10-24D12 | 9-36 | 9 | 473 | ± 12 | ± 416 | 88 | ± 470 |
| YTB10-24D15 | 9-36 | 9 | 473 | ± 15 | ± 333 | 88 | ± 270 |
| YTB10-48S05 | 18-75 | 6 | 248 | 5 | 2000 | 84 | 2200 |
| YTB10-48S12 | 18-75 | 6 | 239 | 12 | 833 | 87 | 660 |
| YTB10-48S15 | 18-75 | 6 | 237 | 15 | 666 | 88 | 470 |
| YTB10-48S24 | 18-75 | 6 | 236 | 24 | 416 | 88 | 240 |
| YTB10-48D12 | 18-75 | 6 | 236 | ± 12 | ± 416 | 88 | ± 470 |
| YTB10-48D15 | 18-75 | 6 | 237 | ± 15 | ± 333 | 88 | ± 270 |
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Input Voltage | 24V Models | 9 | 36 | Vdc | ||
| 48V Models | 18 | 75 | ||||
| Input Surge Voltage (100 ms max.) | 24V Models | -0.7 | 50 | |||
| 48V Models | -0.7 | 100 | ||||
| Start-up Voltage | 24V Models | 9 | Vdc | |||
| 48V Models | 18 | |||||
| Under Voltage Shutdown | 24V Models | 8 | Vdc | |||
| 48V Models | 15 | |||||
| Start-up Time | Constant Resistive Load, Nominal Vin | Power-up | 30 | ms | ||
| Input Filter | All Models | Internal Pi type | ||||
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Voltage Tolerance | 100% load | -2 | +2 | % | ||
| Line Regulation | Vin(min) to Vin(max) @100% Load | -0.5 | +0.5 | % | ||
| Load Regulation | 0% Load to 100% Load | -0.5 | +0.5 | % | ||
| Load Cross Regulation | Asymmetrical Load 25% / 100% Load | Dual Output | -5.0 | +5.0 | % | |
| Ripple & Noise (BW=20MHz) | All models | 60 | 100 | mVp-p | ||
| Transient Response Setting Time | 25% Load Step Change | 350 | 500 | us | ||
| Transient Response Deviation | 25% Load Step Change | -5 | ±3 | +5 | % | |
| Temperature Coefficient | -0.03 | +0.03 | %/°C | |||
| Output Power Protection | % of Io, Hiccup mode, Auto-recovery | 120 | 155 | 190 | % | |
| Short Circuit Protection | Continuous [Hiccup Mode] ,Auto-Recovery | |||||
| Over Voltage Protection | 5Vout | 6.2 | Vdc | |||
| 12Vout | 15 | |||||
| 15Vout | 18 | |||||
| 24Vout | 30 | |||||
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Isolation Voltage | Input To Output (60sec) | 1600 | Vdc | |||
| Isolation Resistance | 500Vdc | 1000 | MΩ | |||
| Isolation Capacitance | 100kHz,1V | 2200 | pF | |||
| Switching Frequency | 100% Load, Nominal Input | Other Output | 390 | KHz | ||
| Operating Temperature (Power Derating See Derating Graph) | Nominal Vin, 100% Load | YTB10-24S05, YTB10-48S05 | -40 | 66 | °C | |
| YTB10-24S12, YTB10-48S12 | 74 | |||||
| YTB10-24S15, YTB10-48S15, YTB10-24S24, YTB10-48S24, YTB10-24D12, YTB10-48D12, YTB10-24D15, YTB10-48D15 | 77 | |||||
| Thermal Impedance | 20LFM | 20.4 | °C/W | |||
| 100LFM | 18.1 | |||||
| 200LFM | 15.1 | |||||
| 400LFM | 10.5 | |||||
| Maximum Case Temperature | 105 | °C | ||||
| Storage Temperature | -55 | 125 | °C | |||
| Humidity | Non Condensing | 5 | 95 | % | ||
| Cooling | Natural Convection | |||||
| Case Material | Copper, Black Coating | |||||
| Potting Material | Silicone (UL94-V0) | |||||
| MTBF | MIL-HDBK-217F@25°C (calculated) | 1.1X106 | Hours | |||
| Weight | 10 | g | ||||

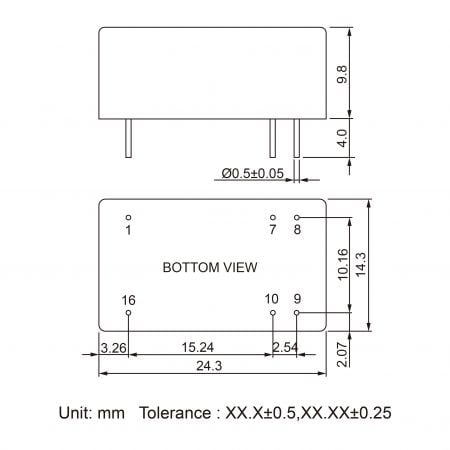

| Dimensions | 24.3 x 14.3 x 9.8 | mm | ||||
