3W DC-DC Converter In DIL24 Package With 4:1 Wide Input Range And 1500Vdc Isolation

5 0 Reviews

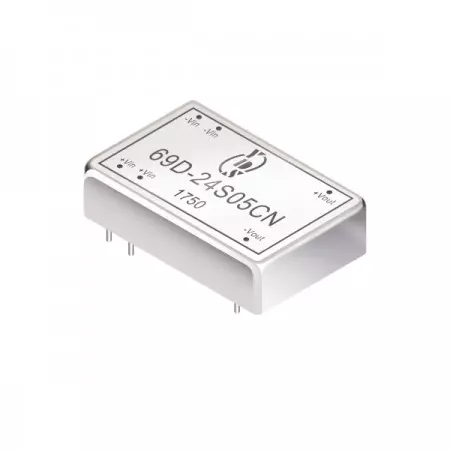

3W DC-DC Converter in DIL24 Package with 4:1 Wide Input Range and 1500Vdc Isolation

69D Series

3 Watt DC to DC Power Module | 1.25"x0.8" Size | 80% Efficiency | Single & Dual Output | Short Circuit Protection For Industry and Measurement equipments

Wide input 4:1 voltage range 3 watt DC-DC power converter has 1.5KV isolation. 69D series is available in 24 pin DIL package. It has single output and dual output specifications. The efficiency is up to 80%. The operating ambient temperature is from -40°C to +85°C.

As a DC-DC converter manufacturer with mature and proven technology, we offer this High Efficiency DC-DC solution for aerospace and sensing devices. Our Regulated DC-DC Converter ensures stable power for electronic instruments, serving as a reliable telecom DC-DC converter module. This Board mount DC-DC converter features an integrated Short Circuit Protection DC-DC Module and meets industry standard DC to DC converter specs. Each Cost-effective DC-DC converter is RoHS & REACH Compliant Power certified. We also provide DC-DC Converter OEM/ODM Service to deliver a Customized DIL DC-DC Converter for your wireless network and measurement technology.

The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.

Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!

Quantity:



Inquire Add to Basket

Product Description1

3W 1.5KV Isolation 4:1 DIP DC-DC Converter(69D Series)

Features

4:1 wide input voltage.
3 watt 24PIN DIL package.
Efficiency To 80%.
1500Vdc isolation.
MTBF:>1,500,000 hrs.
Operating temperature:-40°C to +85°C.

Applications

Industry equipment.
Sensing equipment.
Instruments.
Wireless Network.
Telecom/Datacom.
Measurement.
Aviation.

Specifications typical at TA = 25°C, nominal input voltage and rated output current unless otherwise specified

Part Number	Input Voltage	Output Voltage	Output Current	Efficiency
Part Number	Vdc	Vdc	mA	%Typ
69D-24S05CN	9-36	5	600	75
69D-24S12CN	9-36	12	250	80
69D-24S15CN	9-36	15	200	75
69D-24D05CN	9-36	± 5	± 300	75
69D-24D12CN	9-36	± 12	± 125	75
69D-24D15CN	9-36	± 15	± 100	75
69D-48S05CN	18-72	5	600	75
69D-48S12CN	18-72	12	250	80
69D-48S15CN	18-72	15	200	75
69D-48D05CN	18-72	± 5	± 300	75
69D-48D12CN	18-72	± 12	± 125	75
69D-48D15CN	18-72	± 15	± 100	75

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Types				4:1
Filter	Capacitor

Output Specifications

Parameters	Conditions	Typ	Max	Units
Voltage Tolerance			± 2	%
Short Circuit Protection	Continuous
Line Regulation			± 0.5	%
Load Regulation	Single		± 0.5	%
Load Regulation	Dual		± 2.0	%
Ripple & Noise	BW=DC To 20MHz		100	mVp-p
Transient response setting time	50% load step change	350		us

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency			200		KHz
Operating Temperature		-40		+85	°C
Humidity	Non Condensing			95	%
Cooling	Free air Convection
Case Material	Nickel Coated Copper With Non-Conductive Base
Weight		16.2			g

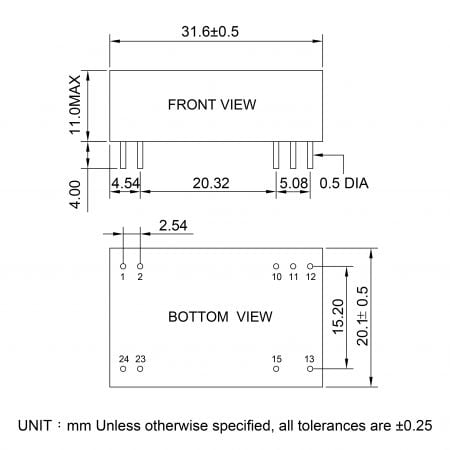

Dimensions		31.60 x 20.10 x 11.0			mm
