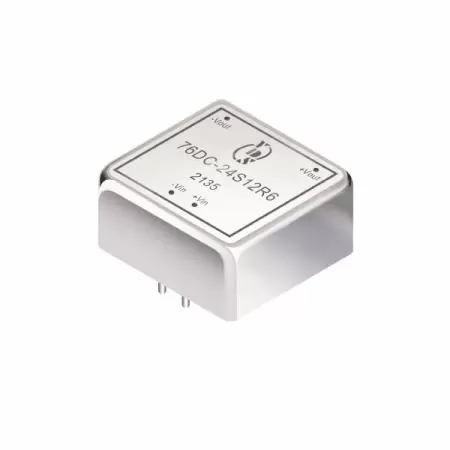

DC-DC Converter, 1'' x 1'' size, 4:1 Wide Range Input, 5PIN DIL Package, Single & Dual Regulated Output For Industry and Measurement equipments
3~6 watt DC to DC power converter with DIL package. 76DC-6W series has 1.5KV&3KV isolation voltage and wide input 4:1 voltage range. It is available in single output and dual output specifications. The operating temperatures range is from -40°C to +85°C. The efficiency is up to 88%.
As a professional manufacturer dedicated to pursuing more advanced technologies, we provide the high efficiency DC-DC converter for telecommunications and HUBs. This safety certified DC-DC converter meets EN IEC 62368-1 DC-DC converter and CE compliant DC DC converter standards, ensuring maximum reliability for VoIP equipment and cameras. Our regulated DC DC converter is designed as a compact DC to DC converter for wireless networks, serving as an ideal board mount DC-DC converter. Whether you need a through hole DC to DC converter or a robust industrial DC to DC converter, this isolated DC-DC converter functions as a high-performance DC-DC power module for all modern network hardware.
Our DC-DC power converter products are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Input Voltage | Output Voltage | Output Current | Input Current | Efficiency | Capacitive Load(μF) | |
|---|---|---|---|---|---|---|---|
| No Load | Full Load | ||||||
| Vdc | Vdc | mA | mA | mA | %TYP | Max. | |
| 76DC-24S03RX* | 9-36 | 3.3 | 1500 | 5 | 268 | 77 | 1800 |
| 76DC-24S05RX* | 9-36 | 5 | 1200 | 5 | 305 | 82 | 1000 |
| 76DC-24S09RX* | 9-36 | 9 | 667 | 5 | 298 | 84 | 680 |
| 76DC-24S12RX* | 9-36 | 12 | 500 | 5 | 294 | 85 | 470 |
| 76DC-24S15RX* | 9-36 | 15 | 400 | 5 | 291 | 86 | 220 |
| 76DC-24S24RX* | 9-36 | 24 | 250 | 5 | 291 | 86 | 100 |
| 76DC-24D05RX* | 9-36 | ± 5 | ± 600 | 5 | 305 | 82 | 470 |
| 76DC-24D12RX* | 9-36 | ± 12 | ± 250 | 5 | 294 | 85 | 220 |
| 76DC-24D15RX* | 9-36 | ± 15 | ± 200 | 5 | 291 | 86 | 100 |
| 76DC-24D24RX* | 9-36 | ± 24 | ± 125 | 5 | 291 | 86 | 100 |
| 76DC-48S03RX* | 18-75 | 3.3 | 1500 | 5 | 131 | 79 | 1800 |
| 76DC-48S05RX* | 18-75 | 5 | 1200 | 5 | 150 | 82 | 1000 |
| 76DC-48S12RX* | 18-75 | 12 | 500 | 5 | 144 | 87 | 470 |
| 76DC-48S15RX* | 18-75 | 15 | 400 | 5 | 142 | 88 | 220 |
| 76DC-48S24RX* | 18-75 | 24 | 250 | 5 | 144 | 87 | 100 |
| 76DC-48D05RX* | 18-75 | ± 5 | ± 600 | 5 | 150 | 82 | 470 |
| 76DC-48D12RX* | 18-75 | ± 12 | ± 250 | 5 | 144 | 87 | 220 |
| 76DC-48D15RX* | 18-75 | ± 15 | ± 200 | 5 | 142 | 88 | 100 |
Note:
1.X is the output power: 3=3W, 4=4W, 5=5W, 6=6W, for example, 76DC-24S05R3, 76DC-48S12R6
2. * No suffix is standard isolation (1.5KVDC) e.g, 76DC-24S15R5，*add suffix “H” for 3KVDC isolation, e.g, 76DC-24S03R5H
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Types | 4:1 | ||||
| Filter | Pi filter | ||||
| Surge Voltage | 24VDC (1sec. max.) | 50 | V | ||
| 48VDC (1sec. max.) | 100 | V | |||
| Start-up Voltage | 24VDC | 9 | V | ||
| 48VDC | 18 | V | |||
| Input Under-voltage Protection | 24VDC | 7 | V | ||
| 48VDC | 15 | V | |||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | ± 1 | ± 3 | % | ||
| Short Circuit Protection | Input voltage range | Continuous | |||
| Over-voltage Protection | 110 | 160 | %Vo | ||
| Over-current Protection | 110 | 140 | 210 | %Io | |
| Temperature Coefficient | Full load | ± 0.03 | %/℃ | ||
| Line Regulation | ± 0.5 | % | |||
| Load Regulation | Single (F.L To 10% Load) | ± 0.8 | % | ||
| Load Regulation | Dual (F.L To 10% Load) | ± 1.0 | % | ||
| Ripple & Noise | BW=DC To 20MHz | 85 | mVp-p | ||
| Transient response setting time | 50% load step change | 350 | us | ||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Isolation Capacitance | Input-output capacitance at 100kHz/0.1V | 1000 | pF | ||
| Switching Frequency | 330 | KHz | |||
| Operating Temperature | Temperature Derating Graph | -40 | +85 | °C | |
| Storage Temperature | -55 | +125 | °C | ||
| Pin Soldering Resistance Temperature | Soldering spot is 1.5mm away from case for 10 | +300 | °C | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case Material | Nickel Coated Copper With Non-Conductive Base | ||||
| Weight | 15.0 | g | |||

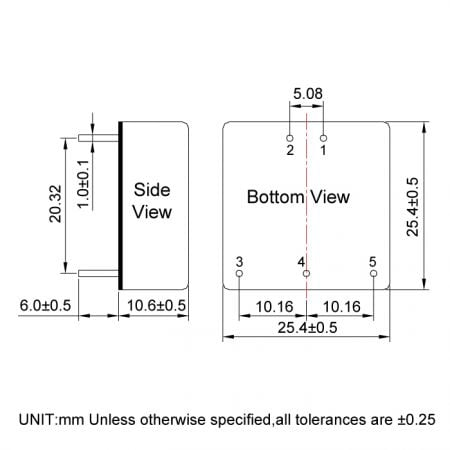

| Dimensions | 25.4 x 25.4 x 10.6 | mm | |||
