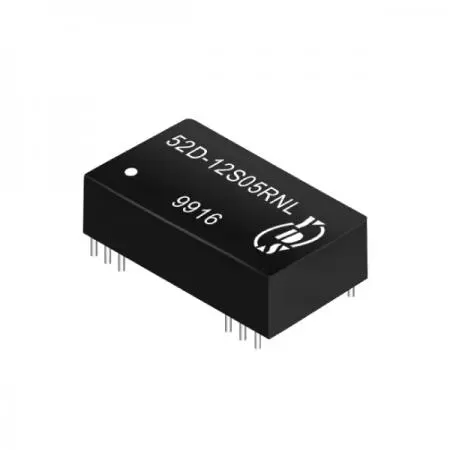

1.8W DIL24 Single/Dual Output DC-DC Converter, 0.5KV Isolation

‹ ›

Product Features

1.8W DIL24 Single/Dual Output DC-DC Converter, 0.5KV Isolation

52D Series

DIL24 DC to DC Converter, Single/Dual Output Module For Industry and Telecom/Datacom equipment.

0.5KV isolation voltage DC to DC power converter with 1.8 watt power. 52D series has both regulated and unregulated output types. It is available in 24 pin DIL package. The inside of the product is an SMD structure. The operating ambient temperature is from -40°C to +85°C, and the efficiency is up to 85%. This series features low ripple & noise. It has industry standard pins and no external components required.

As a professional DC-DC converter manufacturer, we provide the 52D Series featuring a high-performance Isolated DC-DC Converter and DC to DC Power Module. This industrial isolated DC-DC converter is a cost-effective Power Module designed as a board mount DC to DC converter for space-efficient layouts. Our industrial power supply DC-DC solutions support custom DC-DC converter design and DC-DC Converter OEM/ODM Service, ensuring reliable power for industrial equipment, sensing devices, electronic instruments, wireless networks, telecom/datacom, and measurement technology.

The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.

Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!

1.8W 0.5KV Isolation DIP DC-DC Converter(52D Series) | Cost-effective DC-DC converter | OEM/ODM DC-DC Power Module

Features

24PIN DIL package.
Low ripple & noise.
High efficiency up to 85%.
Unregulated & regulated output types.
Internal SMD construction.
No external component required.
Operating temperature:-40°C to +85°C.
Industry standard pinout.

Applications

Industry equipment.
Sensing equipment.
Instruments.
Wireless Network.
Telecom/Datacom.
Measurement.

Specifications typical at TA = 25°C, nominal input voltage and rated output current unless otherwise specified

Part Number	Output Voltage	Output Current	Efficiency
Part Number	Vdc	mA	%TYP
52D-XXS05RNL	5	360	58
52D-XXS05NNL	5	360	70
52D-XXD05NNL	± 5	± 180	70
52D-XXS09RNL	9	200	60
52D-XXS09NNL	9	200	70
52D-XXD09NNL	± 9	± 100	70
52D-XXS12RNL	12	150	60
52D-XXS12NNL	12	150	75
52D-XXD12RNL	± 12	± 75	60
52D-XXD12NNL	± 12	± 75	75
52D-XXS15RNL	15	120	60
52D-XXS15NNL	15	120	75
52D-XXD15RNL	± 15	± 60	60
52D-XXD15NNL	± 15	± 60	75
52D-XXS24RNL	24	75	60
52D-XXS24NNL	24	75	80
52D-XXD24RNL	± 24	± 38	60
52D-XXD24NNL	± 24	± 38	80

Note:
1. ”XX” Is Input Voltage:05=5Vdc,09=9Vdc,12=12Vdc,15=15Vdc.24=24Vdc.
2. The input voltage increases, there will be an increase in efficiency

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	Vo,Io Nom			± 10	%
Filter	Capacitor

Output Specifications

Parameters	Conditions	Typ	Max	Units
Voltage Tolerance	100% full load		± 5	%
Short Circuit Protection	Regulated (Continuous)
Short Circuit Protection	Unregulated (Short Trem)		1	Sec
Line Regulation	Regulated		± 0.3	%
Load Regulation	Regulated		± 0.5	%
Ripple & Noise	BW=DC To 20MHz		50	mVp-p
Line Regulation	Unregulated (For 1% of Vin)	1.2		%
Load Regulation	Unregulated (20% To 100% F.L)		10	%

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency	Full load, nominal input		50		KHz
Operating Temperature		-40		+85	°C
Humidity	Non Condensing			95	%
Cooling	Free air Convection
Case material	DAP
MTBF	MIL-HDBK-217F@25℃	2500000			Hours
MTBF	MIL-HDBK-217F@25℃ (Regulated)	1500000			Hours
Weight		12.8			g
Dimensions		31.80 x 20.30 x 10.20			mm

Certification

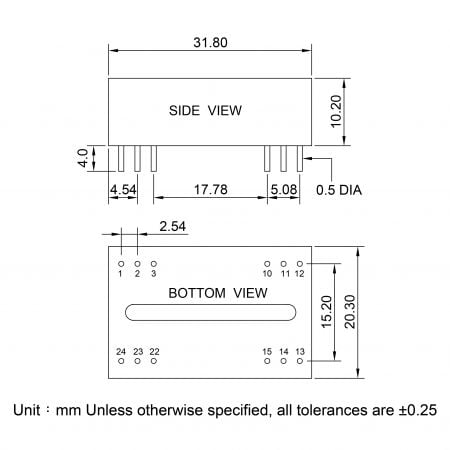

Markings and Dimensions Related Products Files Download
