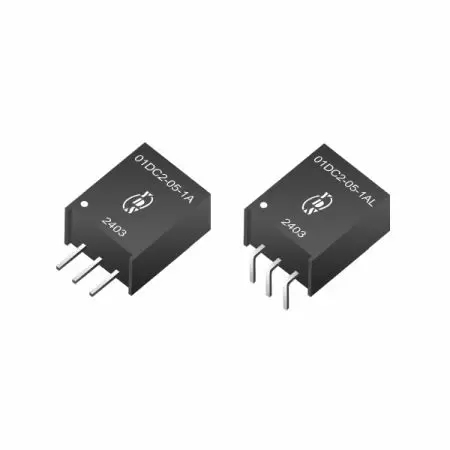

DC-DC Converter, Non-Isolated, 1A Current Output, SIP3 Package, Single Output

5 0 Reviews

DC-DC Converter, Non-isolated, 1A current output, SIP3 Package, Single Output

01DC2-1A Series

High-efficiency DC to DC Power Converter for Industrial Control and Power Module

Non-isolated DC-DC converter in a SIP3 package with 90° pins, providing 1A output current and pin compatibility with LM78XX linear regulators. It reaches up to 95% efficiency, operates from -40°C to +85°C without a heatsink, and integrates short circuit protection for safe operation.

Upgrade your LM78XX with our High efficiency non-isolated DC-DC series. Ideal for Industrial Power Supply DC-DC and 3C devices, this Compact DC-DC converter and Board mount DC-DC converter offer a superior POL converter solution. From High power DC-DC converter needs to Custom DC-DC converter design, we provide efficient, heat-reducing power alternatives.

Yuan Dean DC-DC converters are RoHS-compliant, customizable, and supported by a 3-year warranty. Common uses include industrial control boards, test instruments, automation modules, and power supply replacements.

Quantity:



Inquire Add to Basket

Product Description1

Non-isolated SIP3 DC-DC Converters(01DC2-1A Series) | Cost-effective DC-DC converter | Custom DC-DC converter design

Features

3PIN SIP package.
Pin-out Compatible with LM78XX Linear.
Efficiency up to 95%, non-isolated, no need for heatsinks.
UL94V-0 package material.
Operating temperature from -40°C to +85°C.
No-load input current as low as 0.1mA.
Short circuit protection.

Applications

General Industrial.
Instruments.
Sensing Equipment.
E-Bike.
Customized.

Specifications typical at TA = 25°C, nominal input voltage and rated output current unless otherwise specified

Part Number	Input Range	Output Voltage	Output Current	Efficiency		Capacitive Load
Part Number	Vdc	Vdc	mA	Min. Vin (%)	Max. Vin (%)	μF max
01DC2-3R3-1A(L)	4.75-36	3.3	1000	90	81	680
01DC2-05-1A(L)	6.5-36	5.0	1000	93	86	680
01DC2-05-1A(L)	6.5-27	-5.0	-500	86	82	330
01DC2-6R5-1A(L)	9.0-36	6.5	1000	93	86	680
01DC2-09-1A(L)	12-36	9.0	1000	95	90	680
01DC2-12-1A(L)	15-36	12	1000	96	93	470
01DC2-12-1A(L)	8-20	-12	-300	89	88	330
01DC2-15-1A(L)	18-36	15	1000	95	93	470
01DC2-15-1A(L)	8-18	-15	-300	89	89	330

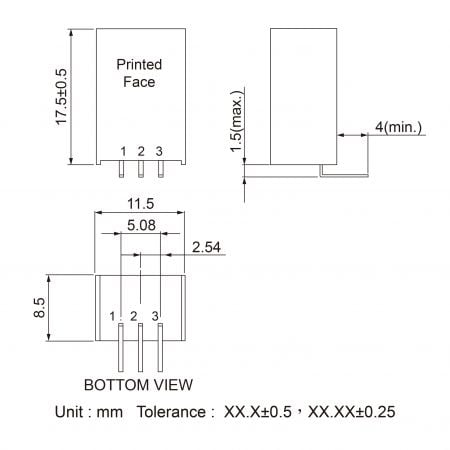

Note:(L) Add a suffix to bend the feet 90° , e.g, 01DC2-05-1AL

Output Specifications

Parameters	Conditions	Typ	Max	Units
Voltage Tolerance		2	± 3	%
Short Circuit Protection	Continuous, automatic recovery
Line Regulation	Full load, input voltage range	± 0.2	± 0.5	%
Load Regulation	Nominal input, 10% -100% load	± 0.3	± 0.6	%
Ripple & Noise (without Output Capacitor)	(BW = DC To 20MHz)		75	mVp-p
Transient response setting time	50% load step change	250		us

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Switching Frequency			440		KHz
Operating Temperature		-40		+85	°C
Storage Temperature		-55		+125	°C
Humidity	Non Condensing			95	%
Cooling	Free air Convection
Case material	Non-Conductive Black Plastic
Weight			2.0		g

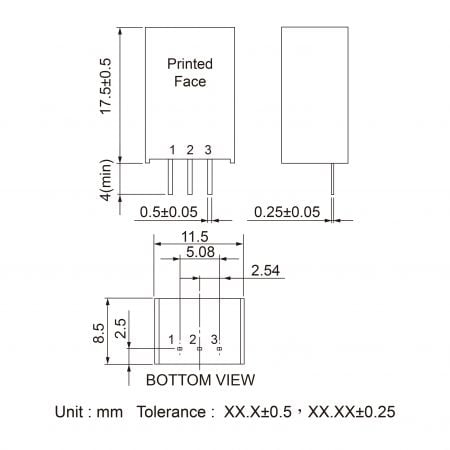

Dimensions		11.50 x 8.50 x 17.50			mm
Dimensions		19.00 x 11.50 x 8.50			mm
MTBF (+25°C)	using MIL-HDBK 217F	5000 x 10³			hours
MTBF (+71°C)	using MIL-HDBK 217F	1000 x 10³			hours
