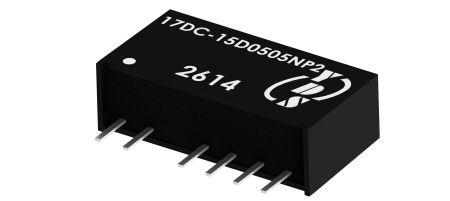

2W DC-DC Converter In SIP7 Package With 1500V To 3000V Isolation And 84% Efficiency

‹ ›

Product Features

2W DC-DC Converter in SIP7 Package with 1500V to 3000V Isolation and 84% Efficiency

17DC-2W Series

2 Watt Unregulated DC to DC Power Module | Dual Output | Continuous Short Circuit Protection | SIP 7-Pin

2W 7PIN SIP package Unregulated DC-DC converter is typically used in cost sensitive, general purpose power isolation and voltage matching applications.

Despite its low cost, it is a fully specified converter with 1.5KVDC & 3KVDC isolation. The operating temperature range is from -40°C to +105°C. It has a high efficiency of up to 84%.

As a specialist in industrial DC-DC converter technology, we deliver high-reliability board mount DC-DC converter solutions for industrial equipment and electronic instruments. This compact DC-DC converter features an unregulated DC-DC converter architecture with an isolated DC-DC converter design and a short circuit protection DC-DC module. Our economical DC-DC converter is the ideal embedded DC-DC power module for wireless networks, telecom/datacom, and measurement technology, also available as a customized SIP DC-DC converter.

Our DC-DC power converter products are RoHS/REACH compliant and can be customized, with a 3-year warranty on sale.

Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!

2W SIP7 1.5KV~3KV IsolationUnregulated DC-DC Power (17DC-2W Series) | Economical DC-DC Converter | Custom DC-DC converter design

Features

7PIN SIP Package
No-load input current as low as 5mA
Continuous short-circuit protection
High Efficiency up to 84%
Unregulated Output Types
1.5KVDC ~ 3KVDC Isolation
Operating Temperature:-40℃to +105℃
Industry Standard Pinout

Applications

Industry equipment.
Instruments.
Wireless Network.
Telecom/Datacom.
Measurement.

Specifications typical at TA = 25°C, nominal input voltage and rated output current unless otherwise specified

Part Number	Output2 Voltage	Output2 Current	Efficiency	Capacitive Load(µF)
Part Number	Vdc	mA	%TYP	Max.
17DC-XXDXX03NP2^(H3)	3.3	303	75	2400
17DC-XXDXX05NP2^(H3)	5	200	81	2400
17DC-XXDXX09NP2^(H3)	9	111	82	1000
17DC-XXDXX12NP2^(H3)	12	84	82	470
17DC-XXDXX15NP2^(H3)	15	67	83	330
17DC-XXDXX24NP2^(H3)	24	42	84	100

Note: 1. No suffix is standard isolation (1.5KVDC) e.g, 17DC-03D0505NP2, *add suffix “H3” for 3KVDC isolation, 2.”XX” is voltage : 03=3.3Vdc,05=5Vdc, 09=9Vdc 12=12Vdc 15=15Vdc.24=24Vdc； e.g, 17DC-03D0305NP2, 17DC-05D0512NP2H3, 17DC-09D0315NP2

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Range	3.3V Input Models	2.97	3.3	3.63	VDC
	5V Input Models	4.5	5	5.5
	9V Input Models	8.1	9	9.9
	12V Input Models	10.8	12	13.2
	15V Input Models	13.5	15	16.5
	24V Input Models	21.6	24	26.4
Filter	Capacitor

Output Specifications

Parameters	Conditions	Typ	Max	Units
Voltage Tolerance	100% full load		±5	%
Short Circuit Protection	Continuous
Line Regulation	For 1.0% OF Vin	1.2		%
Load Regulation	3.3V (10% To 100% F.L)	15	20	%
	5V (10% To 100% F.L)	8	15	%
	9V (10% To 100% F.L)	6	10	%
	12V (10% To 100% F.L)	5	10	%
	15V (10% To 100% F.L)	4	10	%
	24V (10% To 100% F.L)	3	10	%
Ripple & Noise	BW=DC To 20MHz	75	150	mVp-p

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Resistance	500Vdc	1000			MΩ
Isolation Capacitance	Input-output, 100KHz/0.1V		20		pF
Switching Frequency	Full load, nominal input @3.3V, 5V Vin		21		KHz
Switching Frequency	Full load, nominal input @other Vin		250		KHz
Operating Temperature		-40		+105	°C
Storage Temperature		-55		+125	°C
Humidity	Non Condensing			95	%
Cooling	Free air Convection
Case material	DAP
MTBF	MIL-HDBK-217F@25°C	3500000			Hours
Weight			2.1		g
Dimensions	19.5x6.0x10.0				mm

Certification

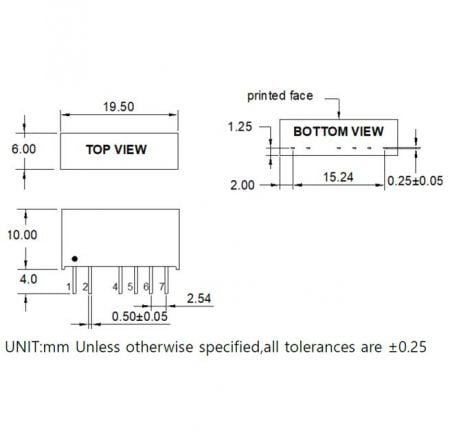

Markings and Dimensions Related Products Files Download
