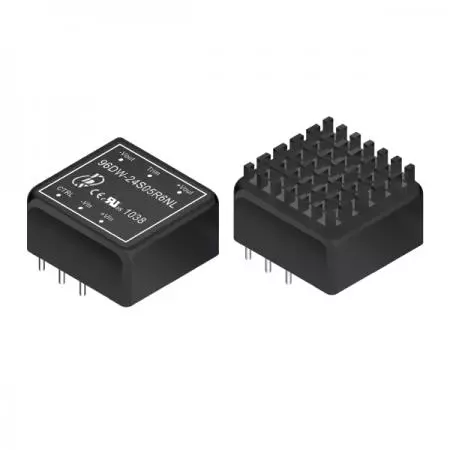

DC-DC Converter, 4:1, 1'' x 1'' size, 6PIN DIL Package, Single & Dual Regulated Output For Industry Control System and Instruments
DC to DC power converter is only 1x1 inch and has 30 watt power. 96DW-R6 series features 1.5KV isolation voltage and a wide input 4:1 voltage range. There are single output and dual output specifications to choose from. It is available in DIL package, and has remote switch function. This series is a regulated output type power conversion. The operating ambient temperatures range is from -40°C to +85°C and the efficiency is up to 92%. 96DW-R6 series has passed the EMI standard EN55032:2015 certification、EMS standard EN55035:2017 certification and has passed the international safety regulations UL/cUL/IEC/EN 62368-1 Certification.
As a professional manufacturer with a passion for advanced technology, we provide a 62368-1 Certified DC-DC Converter and CB Report DC-DC Converter specifically for semiconductor equipment and industrial control systems. This RoHS & REACH Compliant DC-DC Converter is a safety isolated DC-DC converter featuring a PCB mount DC-DC converter and encapsulated DC-DC converter design. From a UL certified DC-DC converter to a CE marked DC-DC converter, we offer an Economical DC to DC Converter through our OEM/ODM DC-DC Power Module service, ensuring every DIL DC-DC Converter and industrial DC-DC converter isolated meets peak measurement and telecom standards.
The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Input Voltage | Input Current | Output Voltage | Output Current | Efficiency | |
|---|---|---|---|---|---|---|
| Vdc | No Load (mA Typ) | Full Load (mA Typ) | Vdc | (mA) | %TYP | |
| 96DW-24S03R6NL | 9-36 | 10 | 1119 | 3.3 | 7000 | 86 |
| 96DW-24S05R6NL | 9-36 | 10 | 1420 | 5 | 6000 | 88 |
| 96DW-24S12R6NL | 9-36 | 10 | 1404 | 12 | 2500 | 89 |
| 96DW-24S15R6NL | 9-36 | 10 | 1404 | 15 | 2000 | 89 |
| 96DW-24S24R6NL | 9-36 | 10 | 1389 | 24 | 1250 | 90 |
| 96DW-48S03R6NL | 18-75 | 7 | 553 | 3.3 | 7000 | 87 |
| 96DW-48S05R6NL | 18-75 | 7 | 702 | 5 | 6000 | 89 |
| 96DW-48S12R6NL | 18-75 | 7 | 694 | 12 | 2500 | 90 |
| 96DW-48S15R6NL | 18-75 | 7 | 687 | 15 | 2000 | 91 |
| 96DW-48S24R6NL | 18-75 | 7 | 679 | 24 | 1250 | 92 |
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Voltage Types | 4:1 | |||||
| Surge Voltage (1 sec. max.) | 24V models 48V models | 50 100 | Vdc | |||
| Remote ON/OFF | Positive logic | DC-DC ON | Open or 3 ~ 15VDC | |||
| DC-DC OFF | Short or 0 ~ 1.2VDC | |||||
| Input current of Ctrl pin | -0.5 ~ +1.0 mA | |||||
| Remote off input current | 2.0 mA TYP | |||||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ± 2 | % | ||
| Short Circuit Protection | Continuous ,Auto-Recovery | ||||
| Output Power Protection | Continuous ,Auto-Recovery | 110 | 170 | % | |
| Over Voltage Protection | 3.3Vdc 5Vdc 12Vdc 15Vdc 24Vdc | 3.7 5.6 13.5 18.3 29.1 | 5.4 7.0 19.6 22.0 32.5 | Vdc | |
| Line Regulation | Nominal Input Voltage | ± 0.5 | % | ||
| Load Regulation | Single | ± 0.5 | % | ||
| Ripple & Noise | BW=DC To 20MHz Single : 3.3V & 5V with 22uF 12V & 15V with 2*22uF 24V with 2*6.8uF | 100 | mVp-p | ||
| Start up time | Nominal Input Voltage | 30 | ms | ||
| Transient response setting time | 25% load step change | 350 | us | ||
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Isolation Voltage | Input To Output | 1500 | Vdc | |||
| Input (Output) To Case | 1000 | |||||
| Isolation Resistance | 500Vdc | 1000 | MΩ | |||
| Switching Frequency | 3.3 & 5.0 Vout models | 245 | 275 | 305 | KHz | |
| other models | 300 | 330 | 360 | |||
| Operating Temperature | With derating | -40 | 85 | °C | ||
| Case Temperature | 105 | °C | ||||
| Temperature Coefficient | 100% Load | ±0.03 | %/°C | |||
| Humidity | Non Condensing | 5 | 95 | % | ||
| Cooling | Natural Convection (20LFM) | |||||
| Case material | Six-side shield case | |||||
| MTBF | MIL-HDBK-217F@25°C | 1200000 | Hours | |||

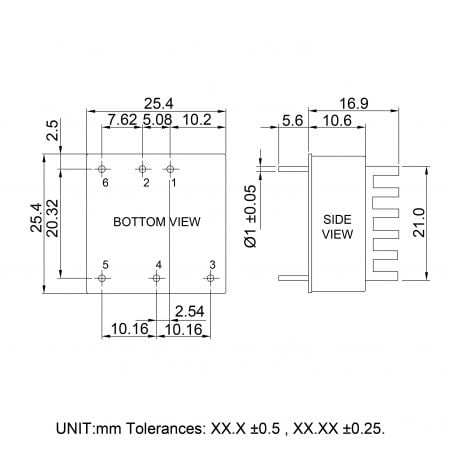

| Weight | without heatsink | 22 | g | |||
| with heatsink | 24.5 | |||||

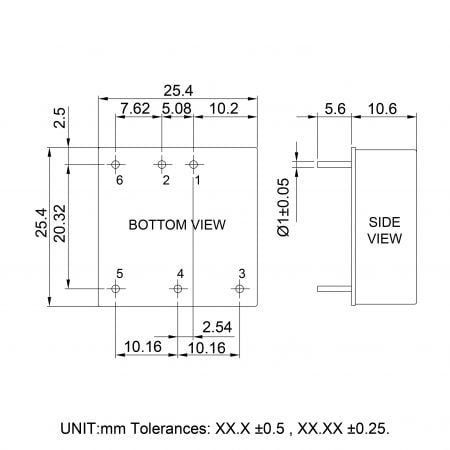

| Dimensions | 25.4X25.4X10.6 | mm | ||||
