3W DIL24 Single/Dual Regulated Output DC-DC Converter, 0.5KV Isolation
‹ › 3W DIL24 Single/Dual Regulated Output DC-DC Converter, 0.5KV Isolation

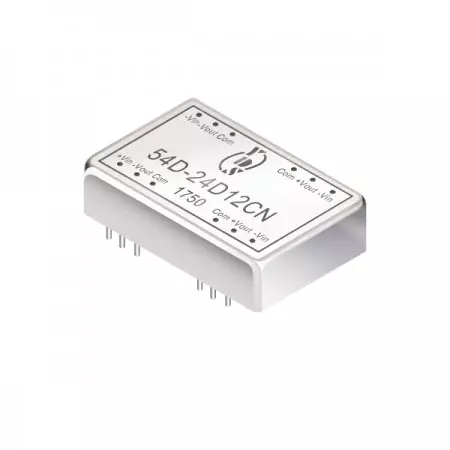

54D Series
DIL24 DC to DC Converter, Single/Dual Output Module For Industry and Sensing equipment
DC to DC power converter features 3 watt power and 0.5KV isolation voltage. 54D series is a regulated output type product and is available in 24 pin 1.25" x 0.8" dimention DIL package. The inside of the product is an SMD structure. The operating ambient temperature is from -40°C to +85°C, and the efficiency is up to 85%. This product has low ripple & noise and industry standard pins.
As a professional DC to DC converter manufacturer, we offer the 54D Series featuring a high-performance Regulated DC-DC Power Module and Isolated DC to DC Converter. This industrial DC-DC converter is an Economical DC to DC Converter designed as a PCB mount DC-DC converter with built-in Short Circuit Protection DC-DC Module. Our Industrial Power Supply DC-DC solutions support OEM DC to DC Power Module needs, ensuring reliable power for industrial equipment, sensing devices, electronic instruments, wireless networks, telecom/datacom, and measurement technology.
The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
Features
- 24PIN DIL package.
- Low ripple & noise.
- High efficiency up to 85%.
- Regulated output types.
- Internal SMD construction.
- Operating temperature:-40°C to +85°C.
- Industry standard pinout.
Applications
- Industry equipment.
- Sensing equipment.
- Instruments.
- Wireless Network.
- Telecom/Datacom.
- Measurement.
Specifications typical at TA = 25°C, nominal input voltage and rated output current unless otherwise specified
| Part Number | Output Voltage | Output Current | Efficiency |
|---|---|---|---|
| Vdc | mA | %TYP | |
| 54D-XXS05CN | 5 | 600 | 65 |
| 54D-XXS09CN | 9 | 333 | 70 |
| 54D-XXS12CN | 12 | 250 | 75 |
| 54D-XXS15CN | 15 | 200 | 80 |
| 54D-XXS24CN | 24 | 125 | 80 |
| 54D-XXD05CN | ± 5 | ± 300 | 65 |
| 54D-XXD09CN | ± 9 | ± 167 | 70 |
| 54D-XXD12CN | ± 12 | ± 125 | 75 |
| 54D-XXD15CN | ± 15 | ± 100 | 80 |
| 54D-XXD24CN | ± 24 | ± 63 | 80 |
Note:
1.”XX” Is Input Voltage:05=5Vdc,09=9Vdc,12=12Vdc,15=15Vdc,24=24Vdc,48=48Vdc.
2. The input voltage increases, there will be an increase in efficiency.
Input Specifications
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | Vo,Io Nom | ± 10 | % | ||
| Filter | Capacitor |
Output Specifications
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ± 3 | % | ||
| Short Circuit Protection | Continuous | ||||
| Line Regulation | Regulated | ± 0.5 | % | ||
| Load Regulation | Regulated | ± 0.8 | % | ||
| Ripple & Noise | Output:5-9V TYPES BW=DC To 20MHz | 100 | mVp-p | ||
| Ripple & Noise | Output:12-24V TYPES BW=DC To 20MHz | 1% of Vout | mVp-p | ||
| Transient response setting time | 50% load step change | 350 | us |
General Specifications
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | Full load, nominal input | 100 | KHz | ||
| Operating Temperature | -40 | +85 | °C | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case material | Nickel Coated Copper With Non-Conductive Base | ||||
| MTBF | MIL-HDBK-217F@25℃ | 1500000 | Hours | ||
| Weight | 16.8 | g | |||
| Dimensions | 31.6 x 20.10 x 11.0 | mm | |||
Certification

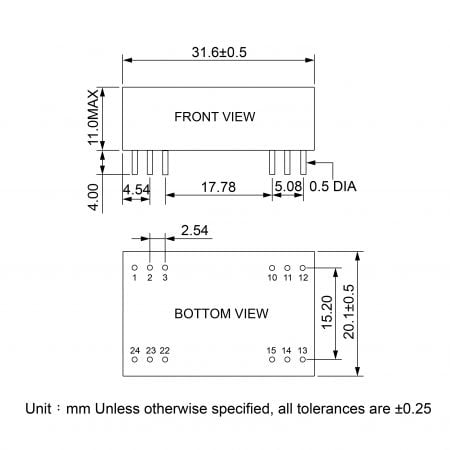

- Markings and Dimensions Related Products Files Download
-
-
