1W SIP7/DIL14 Single Output DC-DC Converter, 1KV Isolation
‹ › 1W SIP7/DIL14 Single Output DC-DC Converter, 1KV Isolation
15D Series

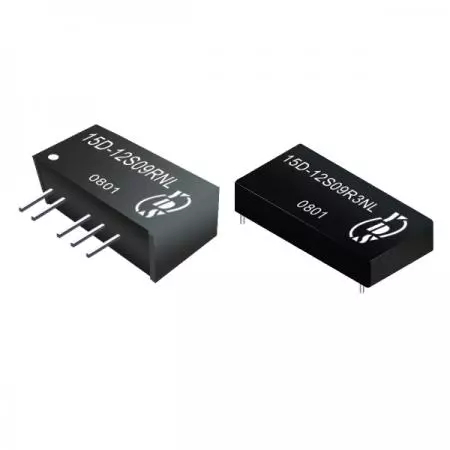

1W SIP7/DIL14 Single Regulated Output Dc to DC Converter, For Sensing and Measurement equipment
1 watt single output 1KV isolation DC to DC power converter. Its output regulation<1.5%. 15D series is available in 7-pin SIP and 14-pin DIL packages. The efficiency is up to 70%. The operating ambient temperature is from -40°C to +85°C. This power converter has industry standard pins and internal SMD construction. No external components are required.
Leading DC-DC converter manufacturer offering 1W DC-DC Power Modules in SIP and DIL packages. These economical unregulated DC-DC converters and switching regulators are high-quality board mount isolated DC-DC converters for industrial, electronic instruments, measurement, telecom, and aerospace applications.
Our DC-DC power converter products are RoHS compliant and can be customized. The products are guaranteed for 3 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
Features
- 7PIN SIP & 14PIN DIL package.
- High efficiency up to 70%.
- Output regulation < 1.5%.
- Internal SMD construction.
- No external component required.
- Industry standard pinout.
- Operating temperature: -40°C to +85°C.
Applications
- Industry equipment.
- Sensing equipment.
- Instruments.
- Wireless Network.
- Telecom/Datacom.
- Measurement.
- Aviation.
Specifications typical at TA = 25°C, nominal input voltage and rated output current unless otherwise specified
| Part Number | Output Voltage | Output Current | Efficiency | Package Style |
|---|---|---|---|---|
| Vdc | mA | % TYP | ||
| 15D-XXS03RNL | 3.3 | 100 | 45 | 1 |
| 15D-XXS05RNL | 5 | 100 | 45 | 1 |
| 15D-XXS09RNL | 9 | 100 | 55 | 1 |
| 15D-XXS12RNL | 12 | 84 | 55 | 1 |
| 15D-XXS15RNL | 15 | 67 | 60 | 1 |
| 15D-XXS03R2NL | 3.3 | 100 | 45 | 2 |
| 15D-XXS05R2NL | 5 | 100 | 45 | 2 |
| 15D-XXS09R2NL | 9 | 100 | 55 | 2 |
| 15D-XXS12R2NL | 12 | 84 | 55 | 2 |
| 15D-XXS15R2NL | 15 | 67 | 60 | 2 |
| 15D-XXS24R2NL | 24 | 42 | 60 | 2 |
| 15D-XXS03R3NL | 3.3 | 100 | 45 | 3 |
| 15D-XXS05R3NL | 5 | 100 | 45 | 3 |
| 15D-XXS09R3NL | 9 | 100 | 55 | 3 |
| 15D-XXS12R3NL | 12 | 84 | 55 | 3 |
| 15D-XXS15R3NL | 15 | 67 | 60 | 3 |
| 15D-XXS03R4NL | 3.3 | 100 | 45 | 4 |
| 15D-XXS05R4NL | 5 | 100 | 45 | 4 |
| 15D-XXS09R4NL | 9 | 100 | 55 | 4 |
| 15D-XXS12R4NL | 12 | 84 | 55 | 4 |
| 15D-XXS15R4NL | 15 | 67 | 60 | 4 |
| 15D-XXS24R4NL | 24 | 42 | 60 | 4 |
Note:
1. "XX" Is Input Voltage: 05 = 5Vdc, 09 = 9Vdc, 12 = 12Vdc, 15 = 15Vdc, 24 = 24Vdc.
2. Over 24Vdc input voltage, using the 2nd or 4nd package.
3. The input voltage increases, there will be an increase in efficiency.
4. Input 3.3V, then output will be 12V MAX Output 3.3V, then input will be 12V MAX.
Input Specifications
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | Vo, Io Nom | ± 5 | % | ||
| Filter | Capacitor |
Output Specifications
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ± 5 | % | ||
| Short Circuit Protection | Continuous | ||||
| Line Regulation | For 1.0% OF Vin | 0.25 | % | ||
| Load Regulation | 10% To 100% F.L | 1.5 | % | ||
| Ripple & Noise | BW=DC To 20MHz | 100 | mVp-p | ||
| Transient Response Setting Time | 50% load step change | 350 |
General Specifications
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | Full load, nominalinput | 100 | KHz | ||
| Operating Temperature | -40 | +85 | °C | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case Material | DAP | ||||
| MTBF | MIL-HDBK-217F @25°C | 1500000 | Hours | ||
| Weight | Package 1 / 2 / 3 / 4 | 2.1 / 2.7 / 2.3 / 3.0 | g | ||
| Dimensions | Package 1 | 19.50 x 6.00 x 10.00 | mm | ||
| Dimensions | Package 2 | 19.5 x 7.10 x 10.00 | mm | ||
| Dimensions | Package 3 | 20.32 x 10.16 x 6.80 | mm | ||
| Dimensions | Package 4 | 20.32 x 10.16 x 7.70 | mm | ||
Certification

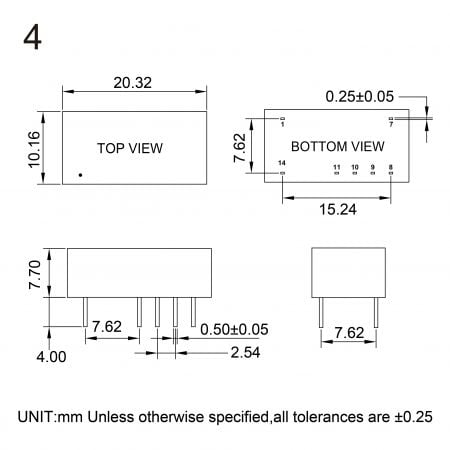

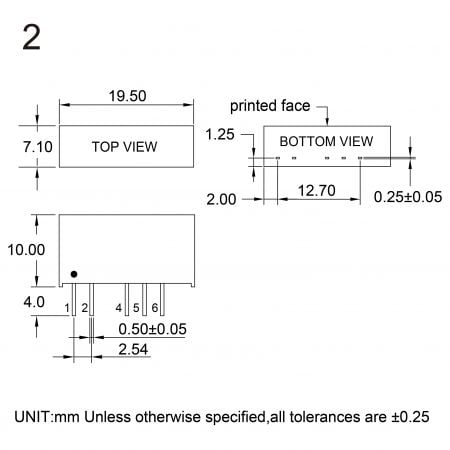

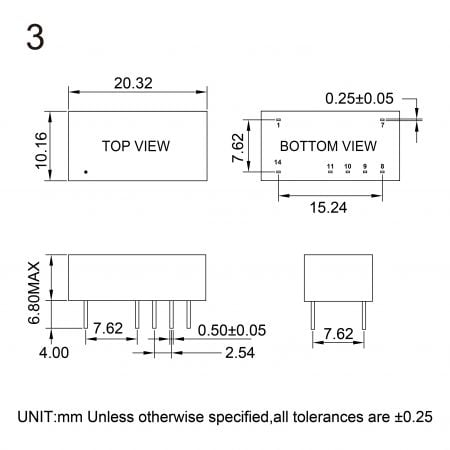

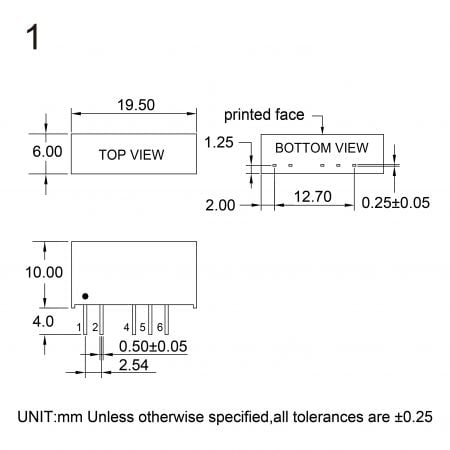

- Markings and Dimensions Related Products Files Download
-
-
