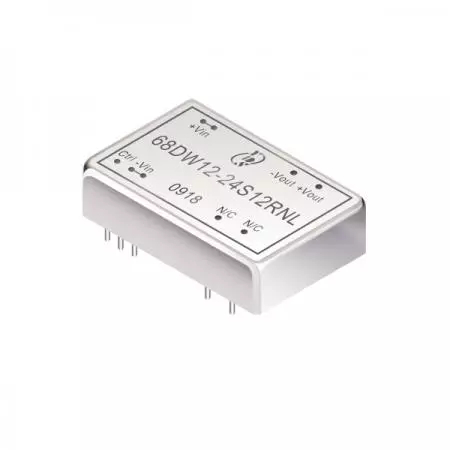

12 Watt DC to DC Power Module | 1.25"x0.8" Size | 87% Efficiency | Single/Dual Output | Short Circuit Protection For Industry and Telecom/Datacom equipments
12 watt 24 pin DIL package DC to DC power converter with wide input 4:1 voltage range. 68DW12 series has 1.5KV isolation voltage and single/dual output specifications. This product uses UL94V-0 packaging material. The operating environment temperature is from -40°C to +81°C. The efficiency is up to 87%. This product will test by 100% high temperature pre-burn before shipment.
As a DC-DC converter manufacturer DIP module specialist who understands your specific needs, we provide a High Efficiency DC-DC solution for telecommunications and aerospace. This 12W Isolated DC-DC Converter serves as a reliable telecom DC-DC converter module, designed as a versatile Board mount DC-DC converter for seamless integration into electronic instruments and sensing devices. Our industry standard DC-DC converter is a Cost-effective DC-DC converter that remains RoHS & REACH Compliant Power certified, ensuring a stable through hole DC DC converter performance for wireless networks. We also offer dedicated DC-DC Converter OEM/ODM Service to provide a Customized DIL DC-DC Converter for any industrial equipment or measurement technology project.
The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Input Voltage | Input Current | Output Voltage | Output Current | Efficiency | |
|---|---|---|---|---|---|---|
| Vdc | No Load (mA TYP) | Full Load (mA TYP) | Vdc | Full Load (mA) | %Typ | |
| 68DW12-24S03RNL | 9-36 | 50 | 573 | 3.3 | 3500 | 84 |
| 68DW12-24S05RNL | 9-36 | 50 | 588 | 5 | 2400 | 85 |
| 68DW12-24S12RNL | 9-36 | 30 | 575 | 12 | 1000 | 87 |
| 68DW12-24S15RNL | 9-36 | 30 | 575 | 15 | 800 | 87 |
| 68DW12-24D05RNL | 9-36 | 30 | 595 | ± 5 | ± 1200 | 84 |
| 68DW12-24D12RNL | 9-36 | 30 | 575 | ± 12 | ± 500 | 87 |
| 68DW12-24D15RNL | 9-36 | 30 | 575 | ± 15 | ± 400 | 87 |
| 68DW12-48S03RNL | 18-75 | 40 | 286 | 3.3 | 3500 | 84 |
| 68DW12-48S05RNL | 18-75 | 40 | 294 | 5 | 2400 | 85 |
| 68DW12-48S12RNL | 18-75 | 30 | 287 | 12 | 1000 | 87 |
| 68DW12-48S15RNL | 18-75 | 30 | 287 | 15 | 800 | 87 |
| 68DW12-48D05RNL | 18-75 | 30 | 298 | ± 5 | ± 1200 | 84 |
| 68DW12-48D12RNL | 18-75 | 30 | 287 | ± 12 | ± 500 | 87 |
| 68DW12-48D15RNL | 18-75 | 30 | 287 | ± 15 | ± 400 | 87 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Types | 4:1 | ||||
| Filter | PI Network | ||||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | Full load@Vin(nom.) | ± 2 | % | ||
| Short Circuit Protection | Hiccup, automatic Recovery | ||||
| Line Regulation | ± 0.5 | % | |||
| Load Regulation | Single Dual(Balance Load) | ± 0.5 ± 0.5 | % | ||
| Cross Regulation | Dual (25% To 100% Load) | ± 5 | % | ||
| Ripple & Noise | Output:3-15V TYPES BW=DC To 20MHz | 100 | mVp-p | ||
| Output > 15V TYPES BW=DC To 20MHz | 1% of Vout | mVp-p | |||
| Transient response setting time | 25% load step change | 350 | us |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Voltage | 1500 | Vdc | |||
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | 400 | KHz | |||
| Operating Temperature | With derating | -40 | +81 | °C | |
| Storage Temperature | -55 | +125 | °C | ||
| Temperature Coefficient | 100% Load | ±0.03 | %/°C | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Natural Convection (20LFM) | ||||
| Case Material | Nickel Coated Copper With Non-Conductive Base | ||||
| MTBF | MIL-HDBK-217F@25℃ | 900000 | Hours | ||
| Weight | 17.5 | g | |||
| Dimensions | 31.60 x 20.10 x 10.00 | mm | |||
