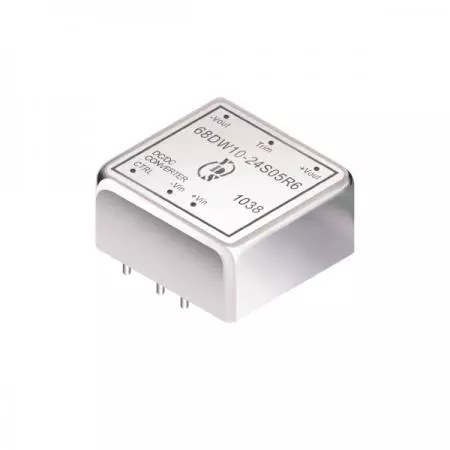

10 Watt DC to DC Power Module | 1"x1" Size | 1.5KVdc Isolated | Remote On/Off | EN55032 EN55035 Compliant For Instrument and Telecom/Datacom equipments
10 watt DC to DC power converter with single/dual output specifications. 68DW10-R6 series has 1.5KV isolation voltage and 4:1 wide input voltage range. ,and uses DIL package. This product uses UL94V-0 packaging material. The operating environment temperature ranges is from -40°C to +85°C. The efficiency is up to 87%. This product will test by 100% high temperature pre-burn before shipment.
68DW10-R6 series has passed the EMI standard EN55032:2015 certification、EMS standard EN55035:2017 certification.
As a professional DC to DC converter manufacturer DIP module specialist who understands your needs, we offer an industry standard 1x1 DC DC converter for aerospace and wireless networks. This 10W Isolated DC DC Converter 1x1 Inch 4:1 Input DIP Module EMC Certified features High Efficiency DC-DC performance and serves as a low EMI DC DC converter module for sensitive electronic instruments. Our Board mount DC-DC converter is an EN55032 EN55035 DC-DC converter module 1 inch and ICES-003 compliant DC DC converter, ensuring a stable through hole DC DC converter integration for telecommunications. Every RoHS & REACH Compliant Power unit is backed by our dedicated DC-DC Converter OEM/ODM Service for all industrial equipment and sensing devices.
The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Input Voltage | Input Current | Output Voltage | Output Current | Efficiency | |
|---|---|---|---|---|---|---|
| Vdc | No Load (mA TYP) | Full Load (mA TYP) | Vdc | Full Load (mA) | %TYP | |
| 68DW10-24S03R6 | 9-36 | 50 | 393 | 3.3 | 2400 | 84 |
| 68DW10-24S05R6 | 9-36 | 40 | 496 | 5 | 2000 | 84 |
| 68DW10-24S12R6 | 9-36 | 20 | 483 | 12 | 830 | 86 |
| 68DW10-24S15R6 | 9-36 | 20 | 474 | 15 | 660 | 87 |
| 68DW10-24D12R6 | 9-36 | 20 | 483 | ± 12 | ± 415 | 86 |
| 68DW10-24D15R6 | 9-36 | 20 | 474 | ± 15 | ± 330 | 87 |
| 68DW10-48S03R6 | 18-75 | 30 | 196 | 3.3 | 2400 | 84 |
| 68DW10-48S05R6 | 18-75 | 40 | 248 | 5 | 2000 | 84 |
| 68DW10-48S12R6 | 18-75 | 10 | 241 | 12 | 830 | 86 |
| 68DW10-48S15R6 | 18-75 | 10 | 237 | 15 | 660 | 87 |
| 68DW10-48D12R6 | 18-75 | 10 | 241 | ± 12 | ± 415 | 86 |
| 68DW10-48D15R6 | 18-75 | 10 | 237 | ± 15 | ± 330 | 87 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Types | 4:1 | ||||
| Filter | PI Network | ||||
| Protection | Fuse Recommended | ||||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | Full load@Vin(nom.) | ± 2 | % | ||
| Short Circuit Protection | Hiccup, automatic Recovery | ||||
| Line Regulation | ± 0.5 | % | |||
| Load Regulation | Single Dual(Balance Load) | ± 0.5 ± 1 | % | ||
| Cross Regulation | Dual (25% To 100% Load) | ± 5 | % | ||
| Ripple & Noise | Output:3-15V TYPES BW=DC To 20MHz | 100 | mVp-p | ||
| Output > 15V TYPES BW=DC To 20MHz | 1% of Vout | mVp-p | |||
| Transient response setting time | 25% load step change | 300 | us | ||
| External Trim Adj. Range | ± 10 | % |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Voltage | 1500 | Vdc | |||
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | 400 | KHz | |||
| Operating Temperature | With derating | -40 | +85 | °C | |
| Storage Temperature | -55 | +125 | °C | ||
| Case Temperature | +105 | °C | |||
| Temperature Coefficient | 100% Load | ±0.03 | %/°C | ||
| Humidity | Non Condensing | 5 | 95 | % | |
| Cooling | Natural Convection (20LFM) | ||||
| Case Material | Nickel Coated Copper With Non-Conductive Base | ||||
| MTBF | MIL-HDBK-217F@25℃ | 560000 | Hours | ||
| Weight | 16.5 | g | |||

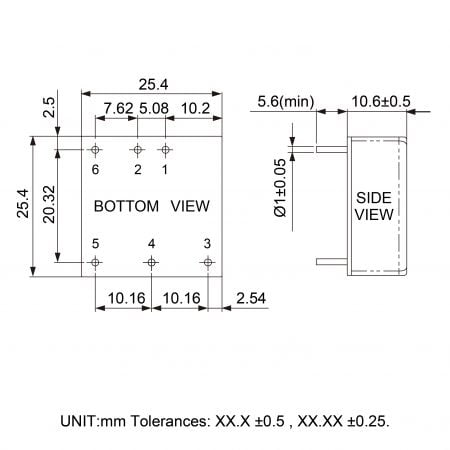

| Dimensions | 25.4 x 25.4 x 10.6 | mm | |||
