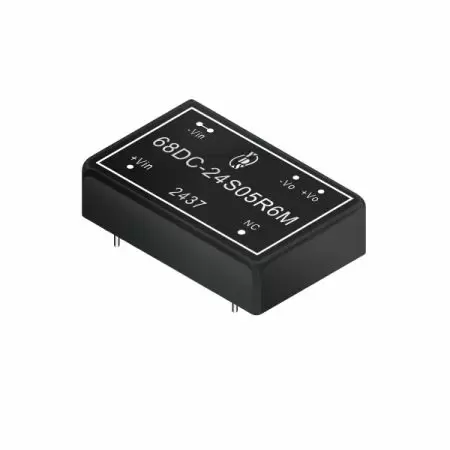

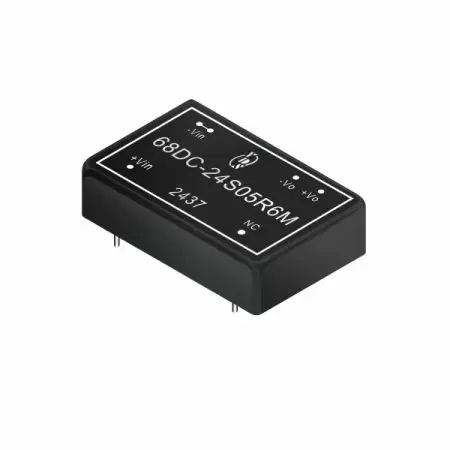

3-6 Watt Medical Grade DC to DC Power Module | 4:1 Ultra-wide Input | 6KVdc/5.2KVac Isolated | 1.25"x0.8" Size For Medical device and Industry equipment
Medical application 4:1 wide input voltage range 3~6 watt DC to DC power converter. It is available in 24 pin DIL package with 6KVdc/5.2KVac isolation voltage. The operating environment temperature is from - 40°C to +85°C, and the highest efficiency can reach 85%. The product is tested by 100% high temperature pre-burning before shipment. The packaging material meets the UL94V-0 specification.
Our professional medical grade isolated converter solutions are specifically engineered for critical healthcare environments. Featuring 2xMOPP reinforced insulation, each medical power module ensures the highest level of patient and operator safety. This high isolation dc dc converter series provides a robust 5200VAC / 6000VDC barrier, while our isolated medical dc dc converter designs guarantee low leakage and ultra-stable performance for diagnostic and imaging systems.
The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Input Voltage | Output Voltage | Output Current | Input Current | Efficiency | Capacitor load(μF) | Package Style | |
|---|---|---|---|---|---|---|---|---|
| No Load | Full Load | |||||||
| Vdc | Vdc | mA | mA | %TYP | %TYP | Max. | ||
| 68DC-24S03RXYM | 9-36 | 3.3 | 1500 | 5 | 271.4 | 76 | 2700 | 1/2 |
| 68DC-24S05RXYM | 9-36 | 5 | 1200 | 5 | 308.6 | 81 | 2700 | 1/2 |
| 68DC-24S09RXYM | 9-36 | 9 | 667 | 5 | 301.4 | 83 | 1800 | 1/2 |
| 68DC-24S12RXYM | 9-36 | 12 | 500 | 5 | 297.6 | 84 | 1000 | 1/2 |
| 68DC-24S15RXYM | 9-36 | 15 | 400 | 5 | 294.1 | 85 | 680 | 1/2 |
| 68DC-24S24RXYM | 9-36 | 24 | 250 | 5 | 297.6 | 84 | 470 | 1/2 |
| 68DC-24D05RXYM | 9-36 | ± 5 | ± 600 | 5 | 308.6 | 81 | ± 1000 | 1/2 |
| 68DC-24D09RXYM | 9-36 | ± 9 | ± 333 | 5 | 301.4 | 83 | ± 680 | 1/2 |
| 68DC-24D12RXYM | 9-36 | ± 12 | ± 250 | 5 | 294.1 | 85 | ± 470 | 1/2 |
| 68DC-24D15RXYM | 9-36 | ± 15 | ± 200 | 5 | 294.1 | 85 | ± 330 | 1/2 |
| 68DC-48S03RXYM | 18-75 | 3.3 | 1500 | 5 | 132.2 | 78 | 2700 | 1/2 |
| 68DC-48S05RXYM | 18-75 | 5 | 1200 | 5 | 152.4 | 82 | 2700 | 1/2 |
| 68DC-48S09RXYM | 18-75 | 9 | 667 | 5 | 150.7 | 83 | 1800 | 1/2 |
| 68DC-48S12RXYM | 18-75 | 12 | 500 | 5 | 148.8 | 84 | 1000 | 1/2 |
| 68DC-48S15RXYM | 18-75 | 15 | 400 | 5 | 147.1 | 85 | 680 | 1/2 |
| 68DC-48S24RXYM | 18-75 | 24 | 250 | 5 | 148.8 | 84 | 470 | 1/2 |
| 68DC-48D05RXYM | 18-75 | ± 5 | ± 600 | 5 | 152.4 | 82 | ± 1000 | 1/2 |
| 68DC-48D09RXYM | 18-75 | ± 9 | ± 333 | 5 | 150.7 | 83 | ± 680 | 1/2 |
| 68DC-48D12RXYM | 18-75 | ± 12 | ± 250 | 5 | 148.8 | 84 | ± 470 | 1/2 |
| 68DC-48D15RXYM | 18-75 | ± 15 | ± 200 | 5 | 147.1 | 85 | ± 330 | 1/2 |
Note: 1. X= 1 or 2 for package，No suffix x package1，When x =2，package2，and so on，e.g,68DC-48S05R26M. 2. Y indicates that the power can be 3~6: 3=3W, 4=4W, 5=5W, 6=6W.
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Types | Others input | 4:1 | |||
| Filter | Pi filter | ||||
| Surge Voltage | 24VDC (1sec. max.) | 50 | V | ||
| 48VDC (1sec. max.) | 80 | V | |||
| Start up Voltage | 24VDC | 9 | V | ||
| 48VDC | 18 | V | |||
| Input Under-voltage Protection | 24VDC | 7 | V | ||
| 48VDC | 15 | V | |||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | ± 1 | ± 3 | % | ||
| Short Circuit Protection | Input voltage range | Continuous | |||
| Over-voltage Protection | 110 | 160 | %Vo | ||
| Over-current Protection | 110 | 150 | 250 | %Io | |
| Temperature Coefficient | Full load | ± 0.03 | %/°C | ||
| Line Regulation | ± 0.5 | % | |||
| Load Regulation | Single (F.L To 10% Load) | ± 0.8 | % | ||
| Load Regulation | Dual (F.L To 10% Load) | ± 1.0 | % | ||
| Ripple & Noise | BW=DC To 20MHz | 100 | mVp-p | ||
| Transient response setting time | 50% load step change | 350 | us | ||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Voltage | Input to Output (60sec/0.5mA) | 6000 | Vdc | ||
| Isolation Voltage | Input to Output (60sec/0.5mA) | 5200 | Vac | ||
| Isolation Voltage | Input to Output (1sec/0.5mA) | 10000 | Vdc | ||
| Isolation Resistance | 500Vdc | 10000 | MΩ | ||
| Isolation Capacitance | Input-output capacitance at 100kHz/0.1V | 20 | pF | ||
| Leakage Current | 240VAC/60Hz | 4 | uA | ||
| Reinforced Isolation | Transformer creepage | 8 | |||
| Transformer clearance | 5 | ||||
| PCB creepage & clearance | 8 | ||||
| Optocoupler creepage | 8 | ||||
| Switching Frequency | 330 | KHz | |||
| Operating Temperature | Temperature Derating Graph | -40 | +85 | °C | |
| Storage Temperature | -55 | +125 | °C | ||
| Pin Soldering Resistance Temperature | Soldering spot is 1.5mm away from case for 10 | +300 | °C | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Safety Standard | EN60601-1：2006+A1：2013 | ||||
| Application Part | CF Type | ||||
| Insulation Protection Grade | 240VAC/60Hz | 2×MOPP | |||
| Case material | Packing1/2 | DAP | |||
| MTBF | MIL-HDBK-217F@25℃ | 1500000 | Hours | ||
| Weight | Packing1/2 | 12.8 | g | ||

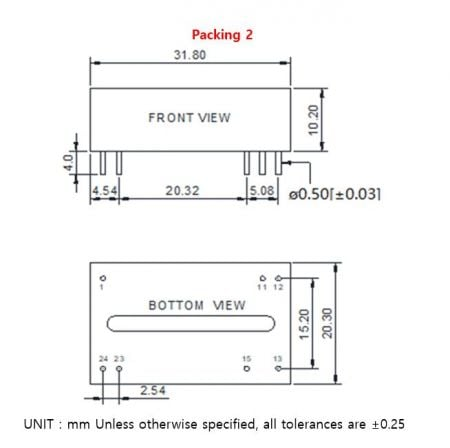

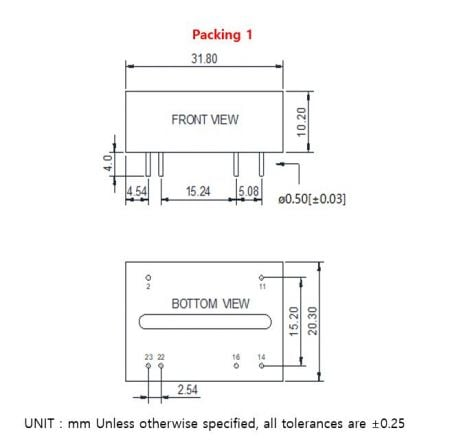

| Dimensions | Packing1/2 | 31.8 x 20.3 x 10.2 | mm | ||
