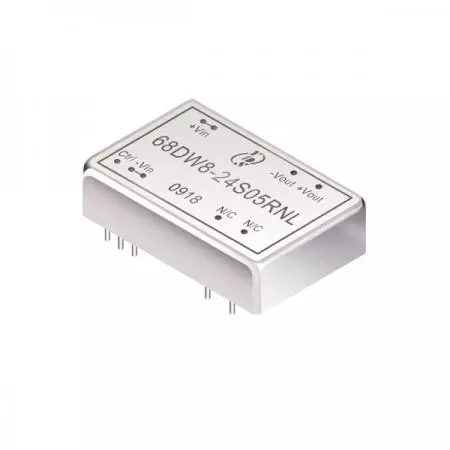

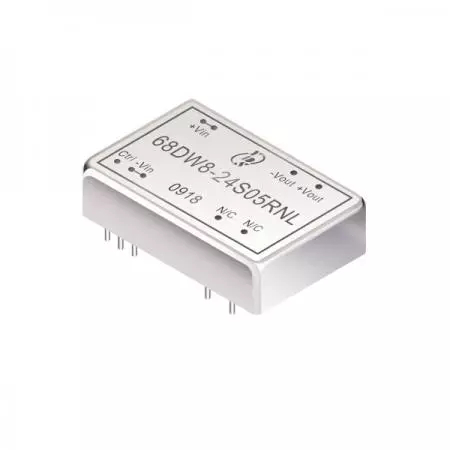

8W DC-DC Converter in DIL24 Package with 4:1 Wide Input Range 1600V Isolation and Remote On/Off

68DW8 Series

8 Watt DC to DC Power Module | 1.25"x0.8" Size | 87% Efficiency | Single/Dual Output | Short Circuit Protection For Industry and Sensing equipments

1.6KV isolation 8 watt DC to DC power converter has wide input 4:1 voltage range. 68DW8 series is available in 24 pin DIL package. This power converter has single output and dual output specifications. This product uses UL94V-0 packaging material. The operating environment temperature ranges is from -40°C to +87°C. The efficiency is up to 87%. This product will test by 100% high temperature pre-burn before shipment.

As a DC-DC converter manufacturer dedicated to pursuing advanced technology, we provide High Efficiency DC-DC solutions for aerospace and wireless networks. This Regulated DC-DC Converter ensures precision for measurement technology and serves as a robust telecom DC-DC converter module. Our Compact DC-DC converter is designed for easy PCB mount DC DC converter DIP integration, meeting industry standard DC to DC converter specs. Each Economical DC to DC Converter is RoHS & REACH Compliant Power certified. We also offer professional DC-DC Converter OEM/ODM Service to create your Customized DIL DC-DC Converter for various electronic instruments.

The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.

Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!

Quantity:



Inquire Add to Basket

Product Description1

8W 1.6KV Isolation 4:1 DIP DC-DC Converter(68DW8 Series)

Features

8W DIL package.
4:1 wide input range.
100% burned in.
High efficiency up to 87%.
Customized solutions available.
Remote control:on/off.
UL94V-0 package material.
Operating temperature from -40°C to +87°C.
3 years warranty.

Applications

Industry equipment.
Sensing equipment.
Instruments.
Wireless Network.
Telecom/Datacom.
Measurement.
Aviation.

Specifications typical at TA = 25°C, nominal input voltage and rated output current unless otherwise specified

Part Number	Input Voltage	Input Current		Output Voltage	Output Current	Efficiency
Part Number	Vdc	No Load (mA TYP)	Full Load (mA TYP)	Vdc	Full Load (mA)	%Typ
68DW8-24S03RNL	9-36	30	392	3.3	2424	85
68DW8-24S05RNL	9-36	30	388	5	1600	86
68DW8-24S12RNL	9-36	30	383	12	666	87
68DW8-24S15RNL	9-36	30	383	15	533	87
68DW8-24D05RNL	9-36	30	392	± 5	± 800	85
68DW8-24D12RNL	9-36	30	383	± 12	± 333	87
68DW8-24D15RNL	9-36	30	383	± 15	± 267	87
68DW8-48S03RNL	18-75	20	196	3.3	2424	85
68DW8-48S05RNL	18-75	20	194	5	1600	86
68DW8-48S12RNL	18-75	20	192	12	666	87
68DW8-48S15RNL	18-75	20	192	15	533	87
68DW8-48D05RNL	18-75	20	196	± 5	± 800	85
68DW8-48D12RNL	18-75	20	192	± 12	± 333	87

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Types	Vo, Io Nom			4:1
Filter	PI Network

Output Specifications

Parameters	Conditions	Typ	Max	Units
Voltage Tolerance	Full load@Vin(nom.)		± 2	%
Short Circuit Protection	Hiccup, automatic Recovery
Line Regulation			± 0.5	%
Load Regulation	Single Dual(Balance Load)		± 0.5 ± 1	%
Cross Regulation	Dual (25% To 100% Load)		± 5	%
Ripple & Noise	Output:3-15V TYPES BW=DC To 20MHz		100	mVp-p
Ripple & Noise	Output > 15V TYPES BW=DC To 20MHz		1% of Vout	mVp-p
Transient response setting time	25% load step change	350		us

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Voltage			1600		Vdc
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency			400		KHz
Operating Temperature	With derating	-40		+87	°C
Storage Temperature		-55		+125	°C
Temperature Coefficient	100% Load			±0.03	%/°C
Humidity	Non Condensing			95	%
Cooling	Natural Convection (20LFM)
Case Material	Nickel Coated Copper With Non-Conductive Base
MTBF	MIL-HDBK-217F@25℃	1500000			Hours
Weight		16.2			g
Dimensions		31.60 x 20.10 x 10.00			mm
