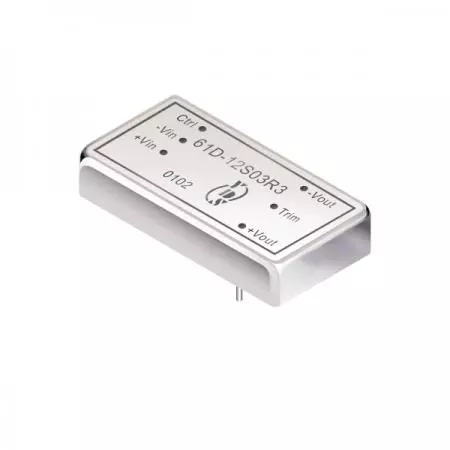

10 Watt DC to DC Power Module | 2x1 Inch Package | 1.5KV Isolated | Short Circuit Protection | DIL6 DIP6 For Industry and Instruments equipment
1.5KV isolation voltage DC to DC power converter features a wide input 2:1 voltage range and 10 watt power. There are single output and dual output specifications to choose from. 61D-R3 series is available in DIL package. The operating environment temperature is from -40°C to +87°C. The highest efficiency can reach 86%. This product uses UL94V-0 packaging material. This power converter will test by 100% high temperature pre-burn before shipment.
Achieve superior power management with our High Efficiency DC to DC series, engineered for demanding aviation and measurement technology. This industrial isolated DC to DC converter offers a Wide Input DC to DC Converter range, serving as a reliable PCB mount DC-DC converter for electronic instruments. As a Regulated DC to DC Converter, it includes an integrated Short Circuit Protection DC to DC Module, making it an Economical DC-DC Converter for sensing devices. Whether for wireless networks or telecom/datacom, our OEM DC to DC Power Module provides RoHS & REACH Compliant Power for all your industrial equipment needs.
The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Input Voltage | Input Current | Output Voltage | Output Current | Efficiency | Capacitor Load | |
|---|---|---|---|---|---|---|---|
| Vdc | No-Load (mA TYP) | Full Load (mA TYP) | Vdc | Full Load (mA) | %TYP | uF Max | |
| 61D-12S03R3 | 9-18 | 70 | 994 | 3.3 | 3000 | 83 | 1500 |
| 61D-12S05R3 | 9-18 | 70 | 980 | 5 | 2000 | 85 | 1500 |
| 61D-12S12R3 | 9-18 | 30 | 971 | 12 | 835 | 86 | 120 |
| 61D-12S15R3 | 9-18 | 30 | 967 | 15 | 665 | 86 | 120 |
| 61D-12D05R3 | 9-18 | 70 | 1004 | ± 5 | ± 1000 | 83 | ± 1000 |
| 61D-12D12R3 | 9-18 | 30 | 972 | ± 12 | ± 418 | 86 | ± 120 |
| 61D-12D15R3 | 9-18 | 30 | 968 | ± 15 | ± 333 | 86 | ± 120 |
| 61D-24S03R3 | 18-36 | 70 | 497 | 3.3 | 3000 | 83 | 3300 |
| 61D-24S05R3 | 18-36 | 70 | 490 | 5 | 2000 | 85 | 3300 |
| 61D-24S12R3 | 18-36 | 30 | 485 | 12 | 835 | 86 | 330 |
| 61D-24S15R3 | 18-36 | 30 | 483 | 15 | 665 | 86 | 330 |
| 61D-24D05R3 | 18-36 | 70 | 502 | ± 5 | ± 1000 | 83 | ± 2000 |
| 61D-24D12R3 | 18-36 | 30 | 486 | ± 12 | ± 418 | 86 | ± 330 |
| 61D-24D15R3 | 18-36 | 30 | 484 | ± 15 | ± 333 | 86 | ± 330 |
| 61D-48S03R3 | 36-75 | 40 | 248 | 3.3 | 3000 | 83 | 5600 |
| 61D-48S05R3 | 36-75 | 40 | 245 | 5 | 2000 | 85 | 5600 |
| 61D-48S12R3 | 36-75 | 30 | 243 | 12 | 835 | 86 | 680 |
| 61D-48S15R3 | 36-75 | 30 | 242 | 15 | 665 | 86 | 680 |
| 61D-48D05R3 | 36-75 | 40 | 251 | ± 5 | ± 1000 | 83 | ± 3300 |
| 61D-48D12R3 | 36-75 | 30 | 243 | ± 12 | ± 418 | 86 | ± 220 |
| 61D-48D15R3 | 36-75 | 30 | 242 | ± 15 | ± 333 | 86 | ± 220 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Types | 2:1 | ||||
| Filter | Pi TYPE |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | Full load@Vin(nom.) | ± 2 | % | ||
| Short Circuit Protection | Hiccup, automatic recovery | ||||
| Line Regulation | ± 0.5 | % | |||
| Load Regulation | Single Dual (Balance Load) | ± 0.5 ± 1.0 | % | ||
| Cross Regulation | Dual (25% to 100%) | ± 5 | % | ||
| Ripple & Noise | Output:3-15V TYPES BW=DC To 20MHz | 100 | mVp-p | ||
| Ripple & Noise | Output >15V TYPES BW=DC To 20MHz | 1% of Vout | mVp-p | ||
| Transient response setting time | 25% load step change | 300 | us |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Voltage | 1500 | Vdc | |||
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | 300 | KHz | |||
| Operating Temperature | With derating | -40 | +87 | °C | |
| Storage Temperature | -55 | +125 | °C | ||
| Temperature Coefficient | 100% Load | ±0.03 | %/°C | ||
| Humidity | Non Condensing | 5 | 95 | % | |
| Cooling | Natural Convection (20LFM) | ||||
| Case Material | Nickel Coated With Non-Conductive Base | ||||
| MTBF | MIL-HDBK-217F@25℃ | 3.342x106 | Hours | ||
| Weight | 32.6 | g | |||

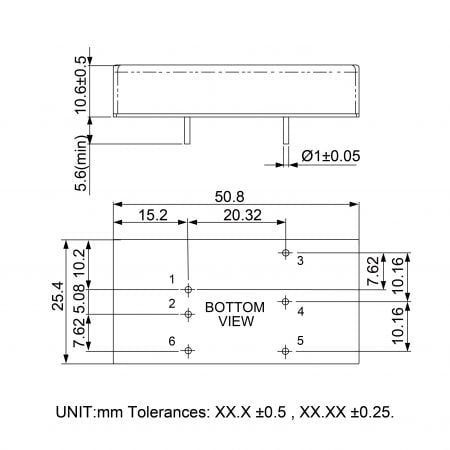

| Dimensions | 50.8 x 25.4 x 10.6 | mm | |||
