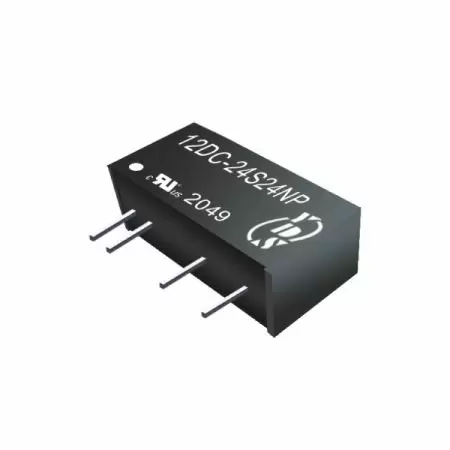

Isolated DC to DC Power Conversion 1W for Communication and Industrial Systems
The 1W DC-DC converter in a SIP7 package offers isolation from 1.5KVDC up to 6KVDC, ensuring safe and stable power conversion. With efficiency up to 87% and an operating range of -40°C to +105°C, it is suitable for communication equipment, industrial control systems, and general-purpose isolation needs.
Isolated & Unregulated DC-DC Converters for PCB mount. UL Listed, CE marked, and CB Report certified. RoHS & REACH Compliant Power for instruments, industrial equipment, telecom, wireless, and measurement devices.
All Yuan Dean DC-DC converters are RoHS-compliant, customizable, and backed by a 3-year warranty. OEM/ODM projects are welcome.
| Quantity: | |
|---|---|
| Part Number | Output Voltage | Output Current | Efficiency | Capacitive Load(μF) |
|---|---|---|---|---|
| Vdc | mA | %TYP | Max. | |
| 12DC-YYS03NP(H3) | 3.3 | 303 | 76 | 2400 |
| 12DC-YYS05NP(H3) | 5 | 200 | 82 | 2400 |
| 12DC-YYS09NP(H3) | 9 | 112 | 83 | 1000 |
| 12DC-YYS12NP(H3) | 12 | 84 | 84 | 470 |
| 12DC-YYS15NP(H3) | 15 | 67 | 84 | 330 |
| 12DC-YYS24NP(H3) | 24 | 42 | 85 | 100 |
| 12DC-YYD03NP(H3) | ± 3.3 | ± 151 | 76 | ± 1200 |
| 12DC-YYD05NP(H3) | ± 5 | ± 100 | 82 | ± 1200 |
| 12DC-YYD09NP(H3) | ± 9 | ± 56 | 83 | ± 470 |
| 12DC-YYD12NP(H3) | ± 12 | ± 42 | 84 | ± 220 |
| 12DC-YYD15NP(H3) | ± 15 | ± 34 | 84 | ± 220 |
| 12DC-YYD24NP(H3) | ± 24 | ± 21 | 85 | ± 47 |
| 12DC-XXS03NP(H3) | 3.3 | 303 | 78 | 2400 |
| 12DC-XXS05NP(H3) | 5 | 200 | 82 | 2400 |
| 12DC-XXS09NP(H3) | 9 | 112 | 85 | 1000 |
| 12DC-XXS12NP(H3) | 12 | 84 | 85 | 680 |
| 12DC-XXS15NP(H3) | 15 | 67 | 87 | 330 |
| 12DC-XXS24NP(H3) | 24 | 42 | 85 | 220 |
| 12DC-XXD03NP(H3) | ± 3.3 | ± 151 | 78 | ± 1200 |
| 12DC-XXD05NP(H3) | ± 5 | ± 100 | 82 | ± 1200 |
| 12DC-XXD09NP(H3) | ± 9 | ± 56 | 85 | ± 680 |
| 12DC-XXD12NP(H3) | ± 12 | ± 42 | 85 | ± 330 |
| 12DC-XXD15NP(H3) | ± 15 | ± 34 | 87 | ± 220 |
| 12DC-XXD24NP(H3) | ± 24 | ± 21 | 85 | ± 100 |
Note:
1. No suffix is standard isolation (1.5KVDC) e.g, 12DC-05S05NP,
*add suffix “H3” for 3KVDC isolation, *add suffix “H4” for 4KVDC isolation,
*add suffix “H5” for 5.2KVDC isolation, *add suffix “H6” for 6KVDC isolation.
2. ”YY” is input voltage : 03=3.3Vdc,05=5Vdc, 09=9Vdc
e.g, 12DC-03S05NP, 12DC-05S12NPH3, 12DC-09S15NP
3. ”XX” is input voltage : 12=12Vdc,15=15Vdc, 24=24Vdc
e.g, 12DC-12S05NP, 12DC-15S12NPH3, 12DC-24S15NP

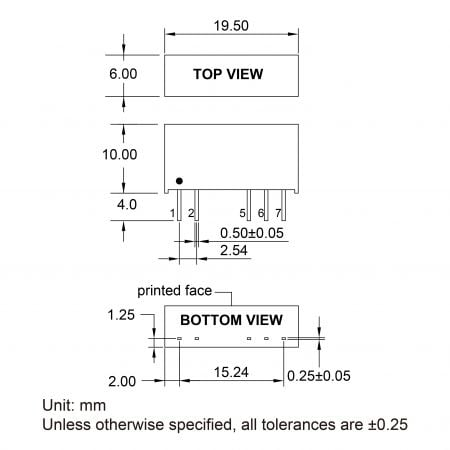

| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Range | 3.3V Input Models | 2.97 | 3.3 | 3.63 | VDC |
| 5V Input Models | 4.5 | 5 | 5.5 | ||
| 9V Input Models | 8.1 | 9 | 9.9 | ||
| 12V Input Models | 9.6 | 12 | 14.4 | ||
| 15V Input Models | 12 | 15 | 18 | ||
| 24V Input Models | 19.2 | 24 | 28.8 | ||
| Filter | Capacitor |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ± 5 | % | ||
| Short Circuit Protection | Continuous | ||||
| Line Regulation | For 1.0% of Vin | 1.2 | % | ||
| Load Regulation | 3.3V(10% To 100% F.L) | 15 | 20 | % | |
| 5V(10% To 100% F.L) | 10 | 15 | % | ||
| 9V(10% To 100% F.L) | 8 | 10 | % | ||
| 12V(10% To 100% F.L) | 7 | 10 | % | ||
| 15V(10% To 100% F.L) | 6 | 10 | % | ||
| 24V(10% To 100% F.L) | 5 | 10 | % | ||
| Ripple & Noise | BW=DC To 20MHz @Vo:3.3V,5V,9V,12V,15V | 30 | 75 | mVp-p | |
| BW=DC To 20MHz @Vo:24V | 50 | 100 | mVp-p | ||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Isolation Capacitance | Input-output,100KHz/0.1V | 20 | pF | ||
| Switching Frequency | Full load, nominal input @3.3V, 5V Vin | 215/370 | KHz | ||
| Full load, nominal input @other Vin | 250 | KHz | |||
| Operating Temperature | -40 | +105 | °C | ||
| Storage Temperature | -55 | +125 | °C | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case material | DAP | ||||
| MTBF | MIL-HDBK-217F @25°C | 3500000 | Hours | ||
| Weight | 2.1 | g | |||
| Dimensions | 19.5 x 6.0 x 10.0 | mm | |||
