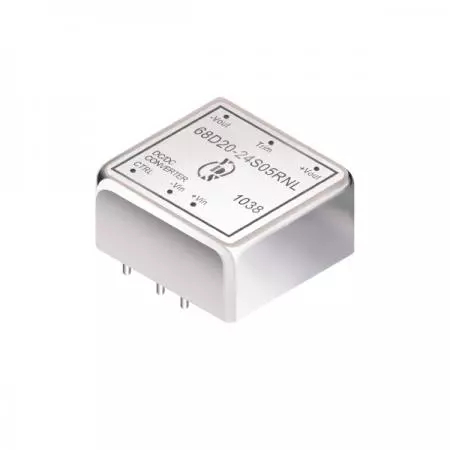

20 Watt DC to DC Power Module | 1"x1" Size | 90% Efficiency | Single & Dual Output | Short Circuit Protection For Industry and Measurement equipments
20 watt DC to DC power converter with 1.5KV isolation voltage and wide input 2:1 voltage range. 68D20 series has single/dual output and DIL package. This product uses UL94V-0 packaging material. The operating environment temperature ranges is from -40°C to +85°C. The efficiency is up to 90%. This product will test by 100% high temperature pre-burn before shipment.
Elevate your electronic instruments and aviation applications with our High Efficiency 20W DC-DC series, designed for peak performance. This industrial DC-DC power module acts as a robust telecom DC-DC converter module for wireless networks, featuring a Wide Input DC-DC Converter range. As a specialized DC-DC converter manufacturer DIP module, we offer a PCB mount DC-DC converter that functions as a safety isolated DC-DC converter with an integrated Short Circuit Protection DC-DC Module. Our DC-DC Converter OEM/ODM Service ensures a Cost-effective DC-DC converter that delivers RoHS & REACH Compliant Power for sensing devices, measurement technology, and industrial equipment.
The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Input Voltage | Input Current | Output Voltage | Output Current | Efficiency | Capacitor load | |
|---|---|---|---|---|---|---|---|
| Vdc | No Load (mA TYP) | Full Load (mA TYP) | Vdc | Full Load (mA) | %TYP | uF MAX | |
| 68D20-12S03RNL | 9-18 | 120 | 1456 | 3.3 | 4500 | 85 | 6600 |
| 68D20-12S05RNL | 9-18 | 120 | 1894 | 5 | 4000 | 88 | 6600 |
| 68D20-12S12RNL | 9-18 | 40 | 1898 | 12 | 1670 | 88 | 960 |
| 68D20-12S15RNL | 9-18 | 40 | 1889 | 15 | 1330 | 88 | 470 |
| 68D20-12D12RNL | 9-18 | 40 | 1871 | ± 12 | ± 833 | 89 | 470 |
| 68D20-12D15RNL | 9-18 | 40 | 1873 | ± 15 | ± 670 | 89 | 330 |
| 68D20-24S03RNL | 18-36 | 70 | 719 | 3.3 | 4500 | 86 | 6600 |
| 68D20-24S05RNL | 18-36 | 70 | 936 | 5 | 4000 | 89 | 6600 |
| 68D20-24S12RNL | 18-36 | 25 | 938 | 12 | 1670 | 89 | 960 |
| 68D20-24S15RNL | 18-36 | 25 | 934 | 15 | 1330 | 89 | 470 |
| 68D20-24D12RNL | 18-36 | 25 | 935 | ± 12 | ± 833 | 89 | 470 |
| 68D20-24D15RNL | 18-36 | 25 | 926 | ± 15 | ± 670 | 90 | 330 |
| 68D20-48S03RNL | 36-75 | 30 | 356 | 3.3 | 4500 | 87 | 6600 |
| 68D20-48S05RNL | 36-75 | 30 | 473 | 5 | 4000 | 88 | 6600 |
| 68D20-48S12RNL | 36-75 | 15 | 469 | 12 | 1670 | 89 | 330 |
| 68D20-48S15RNL | 36-75 | 15 | 467 | 15 | 1330 | 89 | 330 |
| 68D20-48D12RNL | 36-75 | 25 | 478 | ± 12 | ± 833 | 87 | 330 |
| 68D20-48D15RNL | 36-75 | 25 | 473 | ± 15 | ± 670 | 88 | 220 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Types | 2:1 | ||||
| Filter | LC Network | ||||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | Full load@Vin(nom.) | ± 2 | % | ||
| Short Circuit Protection | Hiccup, automatic Recovery | ||||
| Line Regulation | ± 0.5 | % | |||
| Load Regulation | Single Dual(Balance Load) | ± 0.5 ± 1 | % | ||
| Cross Regulation | Dual (25% To 100% Load) | ± 5 | % | ||
| Ripple & Noise | Output:3-15V TYPES BW=DC To 20MHz | 100 | mVp-p | ||
| Output > 15V TYPES BW=DC To 20MHz | 1% of Vout | mVp-p | |||
| Transient response setting time | 25% load step change | 300 | us |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Voltage | 1500 | Vdc | |||
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | 330 | KHz | |||
| Operating Temperature | With derating | -40 | +85 | °C | |
| Storage Temperature | -55 | +125 | °C | ||
| Temperature Coefficient | 100% Load | ± 0.03 | %/°C | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Natural Convection (20LFM) | ||||
| Case Material | Nickel Coated Copper With Non-Conductive Base | ||||
| MTBF | MIL-HDBK-217F@25℃ | 340000 | Hours | ||
| Weight | 16.5 | g | |||

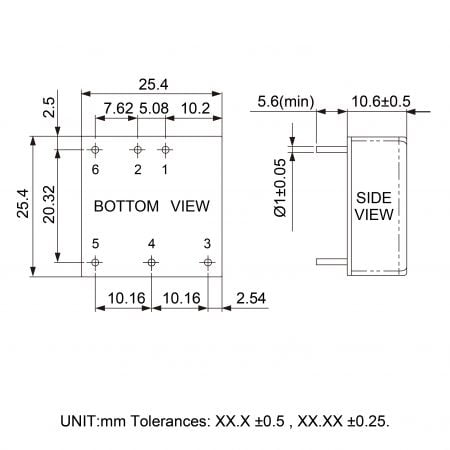

| Dimensions | 25.4 x 25.4 x 10.6 | mm | |||
