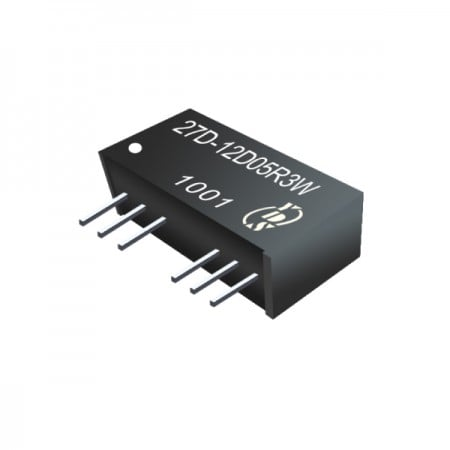

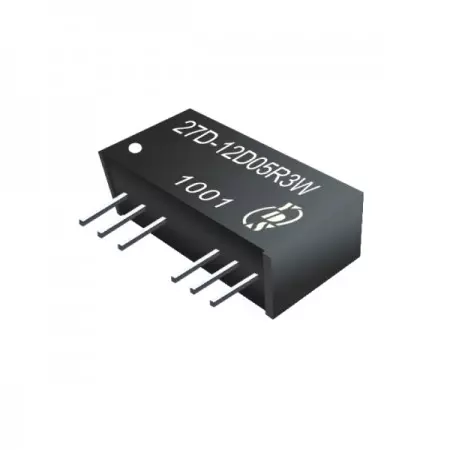

27D-3W Series Dual Output
DC to DC Converter, Regulated Dual Output Power For Industry and Measurement equipment
Wide input 2:1 voltage range dual output 3 watt DC to DC power converter. It has 1.5KV and 3KV isolation. 27D-3W-Dual series is a regulated output SIP-8 power conversion. The efficiency is up to 80%. The operating ambient temperature is from -40°C to +85°C. This power converter has continuous short circuit protection with current foldback. It has industry standard pins and internal SMD construction.
As a DC to DC Converter Manufacturer at the forefront of industry trends, we offer the 27D-3W Dual Series including Regulated DC to DC Converter and Isolated DC to DC Converter solutions. This 3KVDC Isolated SIP Converter and SIP DC-DC converter features a Short Circuit Protection DC to DC Module design. These cost-effective DC to DC converters are RoHS & REACH Compliant Power in a board mount DC to DC converter package, serving as high-quality DC to DC Power Modules for industrial power supply DC to DC in sensing, wireless, and aerospace.
The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
Features
- 2:1 wide input voltages range.
- High efficiency up to 80%.
- Regulated output types.
- Low ripple and noise.
- Internal SMD construction.
- 1.5KVdc & 3KVdc isolation.
- Operating temperature:-40°C to +85°C.
- Industry standard pinout.
- Continuous short circuit protection with current foldback.
Applications
- Industry equipment.
- Sensing equipment.
- Instruments.
- Wireless Network.
- Telecom/Datacom.
- Measurement.
- Aviation.
Specifications typical at TA = 25°C, nominal input voltage and rated output current unless otherwise specified
| Part Number | Input Voltage | Output Voltage | Output Current | Efficiency |
|---|---|---|---|---|
| Vdc | Vdc | mA | %Typ | |
| 27D-12D05R3W (3KV) | 9-18 | ± 5 | ± 300 | 70 |
| 27D-12D09R3W (3KV) | 9-18 | ± 9 | ± 167 | 75 |
| 27D-12D12R3W (3KV) | 9-18 | ± 12 | ± 125 | 78 |
| 27D-12D15R3W (3KV) | 9-18 | ± 15 | ± 100 | 80 |
| 27D-24D05R3W (3KV) | 18-36 | ± 5 | ± 300 | 70 |
| 27D-24D09R3W (3KV) | 18-36 | ± 9 | ± 167 | 75 |
| 27D-24D12R3W (3KV) | 18-36 | ± 12 | ± 125 | 78 |
| 27D-24D15R3W (3KV) | 18-36 | ± 15 | ± 100 | 80 |
| 27D-48D05R3W (3KV) | 36-72 | ± 5 | ± 300 | 70 |
| 27D-48D09R3W (3KV) | 36-72 | ± 9 | ± 167 | 75 |
| 27D-48D12R3W (3KV) | 36-72 | ± 12 | ± 125 | 78 |
| 27D-48D15R3W (3KV) | 36-72 | ± 15 | ± 100 | 80 |
Note:
1. No suffix is standard isolation (1.5KVDC) e.g, 27D-12D05R3W.
2. *add suffix /3KV for 3KVDC isolation, e.g, 27D-12D05R3W3KV.
Input Specifications
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Types | Vo,Io Nom | 2:1 | |||
| Filter | Capacitor |
Output Specifications
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ± 3 | % | ||
| Short Circuit Protection | Continuous | ||||
| Line Regulation | Regulated | ± 0.5 | % | ||
| Load Regulation | Regulated | ± 0.8 | % | ||
| Ripple & Noise | Output:5-9V Types BW=DC To 20MHz | 100 | mVp-p | ||
| Ripple & Noise | Output:12-15V Types BW=DC To 20MHz | 1% of Vout | mVp-p | ||
| Transient response setting time | 50% load step change | 350 | us |
General Specifications
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | Full load, nominal input | 100 | KHz | ||
| Operating Temperature | -40 | +85 | °C | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case Material | DAP | ||||
| MTBF | MIL-HDBK-217F @25°C | 1500000 | Hours | ||
| Weight | 4.5 | g | |||
| Dimensions | 21.8 x 9.2 x 11.1 | mm | |||
Certification

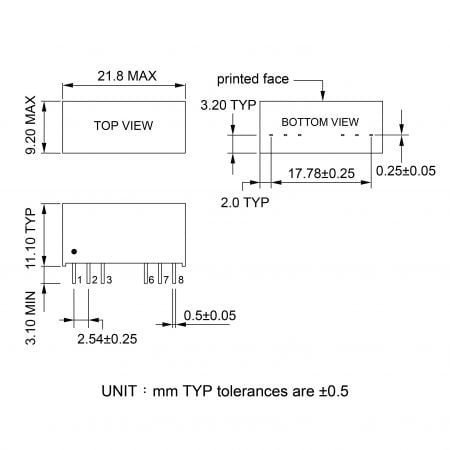

- Markings and Dimensions Related Products Files Download
-
-
