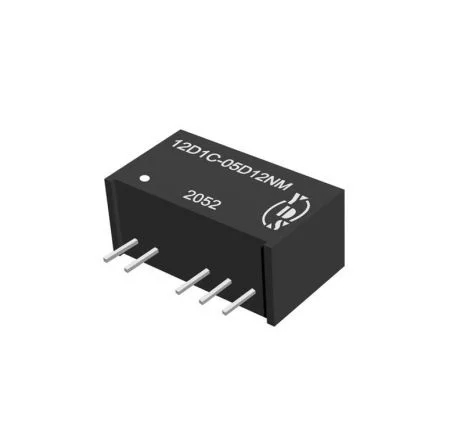

1W SIP7 DC-DC Converter, Medical Application, 5KV/6KV Isolation

‹ ›

Product Features

1W SIP7 DC-DC Converter, Medical Application, 5KV/6KV Isolation

12D1C-NM Series

1W DC to DC Power Conversion for Medical Equipments and Patient Systems

Medical DC-DC power converter with 5KVac to 6KVdc isolation voltage and 1W output. The 12D1C-NM series provides reliable power conversion for medical devices, available in 7-pin SIP package. Certified with IEC/EN 60601-1, ANSI/AAMI ES 60601-1, and IEC/EN/UL 62368-1 standards. Operating temperature ranges from -40°C to +105°C, with efficiency up to 83%.

Our 2xMOPP power solutions are specifically designed for medical electronic equipment, strictly complying with the IEC 60601-1 safety standards. By integrating high-performance 2xMOPP power supply units and 2xMOPP DC-DC Converter modules, we provide reinforced isolation of up to 4000VAC to ensure absolute safety for both patients and operators.

These products feature ultra-Low Leakage Current, meeting the stringent requirements for Type CF (cardiac floating) applications with leakage levels often below 10μA. Choosing a Low leakage power supply not only minimizes the risk of electric shock but also enhances electromagnetic compatibility (EMC), making it a core component for ventilators, patient monitors, and home healthcare devices.

Yuan Dean DC-DC converters are RoHS compliant, customizable, and backed by a 3-year warranty.

Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!

1W 5KV/6KV Isolation SIP7 Medical DC-DC Converter(12D1C-NM Series) | Customized SIP DC to DC Converter | Board mount isolated DC-DC converter

Features

7 PIN SIP package
Continuous short-circuit protection
The leakage current < 1.5μA
Isolation capacitance as low as 4pF
Creepage &clearance distance > 5mm
High efficiency up to 83%
Unregulated output types
5000Vac or 6000Vdc isolation
Operating temperature:-40℃ to +105℃
Industry standard pinout
UL/cUL/IEC/EN 62368-1 approved, CB-Report
L/cUL/IEC/EN 60601-1 approved, CB-Report
EMC Standard of EMI EN55032:2015 Approved
EMC Standard of EMS EN55035:2017 Approved
Medical EMC Standard of EMI EN 60601-1-2:2014+A1:2020 Approved.
Medical EMC Standard of EMS EN 60601-1-2:2015+A1:2021 Approved.

Applications

Industry equipment.
Sensing equipment.
Instruments.
Wireless Network.
Telecom/Datacom.
Measurement.
Aviation.
Medical device.

Specifications typical at TA = 25°C, nominal input voltage and rated output current unless otherwise specified

Part Number	Output Voltage Vdc	Output Current mA	Efficiency %TYP	Capacitive Load(µF) Max.
12D1C-YYS03NM	3.3	303	75	2200
12D1C-YYS05NM	5	200	80	2200
12D1C-YYS09NM	9	112	80	1000
12D1C-YYS12NM	12	84	81	470
12D1C-YYS15NM	15	67	81	330
12D1C-YYS24NM	24	42	81	100
12D1C-YYD03NM	±3.3	±151	75	±1200
12D1C-YYD05NM	±5	±100	80	±1200
12D1C-YYD09NM	±9	±56	80	±470
12D1C-YYD12NM	±12	±42	81	±220
12D1C-YYD15NM	±15	±34	81	±220
12D1C-YYD24NM	±24	±21	81	±47
12D1C-XXS03NM	3.3	303	75	2200
12D1C-XXS05NM	5	200	80	2200
12D1C-XXS09NM	9	112	80	1000
12D1C-XXS12NM	12	84	83	680
12D1C-XXS15NM	15	67	83	330
12D1C-XXS24NM	24	42	82	220
12D1C-XXD03NM	±3.3	±151	75	±1200
12D1C-XXD05NM	±5	±100	80	±1200
12D1C-XXD09NM	±9	±56	80	±680
12D1C-XXD12NM	±12	±42	83	±330
12D1C-XXD15NM	±15	±34	83	±220
12D1C-XXD24NM	±24	±21	81	±100

Note: 1: ”YY” is input voltage : 03=3.3Vdc,05=5Vdc, e.g, 12D1C-03S05NM, 12D1C-05S12NM. 2: ”XX” is input voltage : 12=12Vdc,15=15Vdc, 24=24Vdc e.g, 12D1C-12S05NM, 12D1C-15S12NM, 12D1C-24S15NM

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	Vo, Io Nom		±10		%
Filter	Capacitor

Output Specifications

Parameters	Conditions	Typ	Max	Units
Voltage Tolerance	100% Full Load		±5	%
Short Circuit Protection	Continuous
Temperature Coefficient	100% load	±0.02		%/°C
Line Regulation	For 1.0% of Vin	1.2		%
Load Regulation	3.3V, 5V (10% To 100% F.L)		20	%
Load Regulation	Other output (10% To 100% F.L)		15	%
Ripple & Noise	BW=DC To 20MHz@Vo:3.3V	100	150	mVp-p
Ripple & Noise	BW=DC To 20MHz@ Other	80	120	mVp-p

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency	Full load, nominal input @3.3V, 5V Vin		215/370		KHz
Switching Frequency	Full load, nominal input @other Vin		250		KHz
Operating Temperature		-40		+105	°C
Patient Leakage Current	250VAC, 50/60Hz			1.5	µA
Isolation Capacitance	Input-output, 100KHz/0.1V		4		pF
Storage Temperature		-55		+125	°C
Humidity	Non Condensing			95	%
Cooling	Free air Convection
Case material	DAP
MTBF	MIL-HDBK-217F@25°C		6800000		Hours
Weight			4		g
Dimensions		19.5 x 9.8 x 12.5			mm
Altitude rating	5000M

Certification

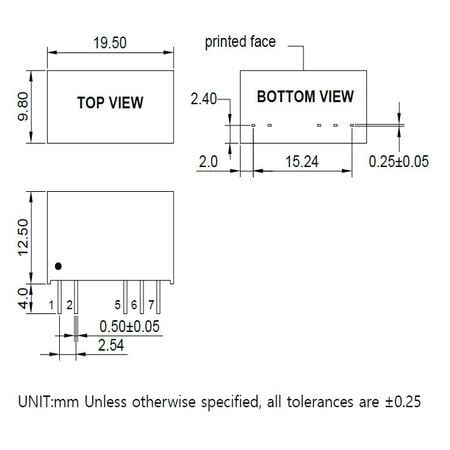

Markings and Dimensions Related Products Files Download
