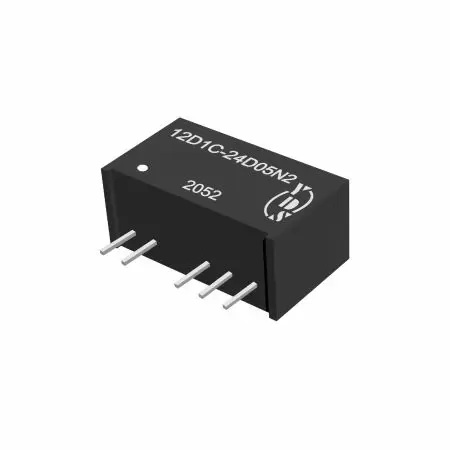

SIP7 2W DC to DC Converter For Industry and Wireless Network equipment
2W SIP7 package 6.4KVDC strengthen isolation high efficient DC-DC converter is typically used in cost sensitive, general purpose power isolation and voltage matching applications. The operating temperature range is from -40°C to +105°C. It has a high efficiency of up to 89%.
Cost-effective isolated & unregulated DC-DC converters in SIP packages. Ideal for instruments, networking, telecom, wireless, and measurement equipment. These economical power modules are RoHS & REACH compliant, providing a reliable and cost-effective power solution.
Our DC-DC power converter products are RoHS compliant and can be customized, with a 3-year warranty on sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Output Voltage | Output Current | Efficiency | Capacitive Load(μF) |
|---|---|---|---|---|
| Vdc | mA | %TYP | Max. | |
| 12D1C-05S03N2 | 3.3 | 600 | 78 | 2400 |
| 12D1C-05S05N2 | 5 | 400 | 84 | 2400 |
| 12D1C-05S09N2 | 9 | 223 | 85 | 820 |
| 12D1C-05S12N2 | 12 | 167 | 85 | 470 |
| 12D1C-05S15N2 | 15 | 133 | 86 | 220 |
| 12D1C-05S24N2 | 24 | 84 | 87 | 100 |
| 12D1C-05D03N2 | ± 3.3 | ± 300 | 78 | ± 1200 |
| 12D1C-05D05N2 | ± 5 | ± 200 | 82 | ± 1200 |
| 12D1C-05D09N2 | ± 9 | ± 112 | 85 | ± 330 |
| 12D1C-05D12N2 | ± 12 | ± 84 | 85 | ± 330 |
| 12D1C-05D15N2 | ± 15 | ± 67 | 87 | ± 220 |
| 12D1C-05D24N2 | ± 24 | ± 42 | 88 | ± 47 |
| 12D1C-XXS03N2 | 3.3 | 600 | 80 | 2400 |
| 12D1C-XXS05N2 | 5 | 400 | 85 | 2400 |
| 12D1C-XXS09N2 | 9 | 223 | 87 | 820 |
| 12D1C-XXS12N2 | 12 | 167 | 87 | 470 |
| 12D1C-XXS15N2 | 15 | 133 | 88 | 220 |
| 12D1C-XXS24N2 | 24 | 84 | 89 | 100 |
| 12D1C-XXD03N2 | ± 3.3 | ± 300 | 80 | ± 1200 |
| 12D1C-XXD05N2 | ± 5 | ± 200 | 82 | ± 1200 |
| 12D1C-XXD09N2 | ± 9 | ± 112 | 85 | ± 330 |
| 12D1C-XXD12N2 | ± 12 | ± 84 | 87 | ± 330 |
| 12D1C-XXD15N2 | ± 15 | ± 67 | 88 | ± 100 |
| 12D1C-XXD24N2 | ± 24 | ± 42 | 89 | ± 47 |
Note:
”XX” is input voltage : 12=12Vdc,15=15Vdc, 24=24Vdc e.g, 12D1C-12S05N2,12D1C-15S12N2, 12D1C-24S15N2
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | Vo,Io Nom | ± 10 | % | ||
| Filter | Capacitor |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ± 5 | % | ||
| Short Circuit Protection | Continuous, self-recovery | ||||
| Line Regulation | For 1.0% of Vin | 1.2 | % | ||
| Load Regulation | 3.3V(10% To 100% F.L) | 15 | 20 | % | |
| 5V(10% To 100% F.L) | 8 | 15 | % | ||
| 9V(10% To 100% F.L) | 6 | 10 | % | ||
| 12V(10% To 100% F.L) | 5 | 10 | % | ||
| 15V(10% To 100% F.L) | 4 | 10 | % | ||
| 24V(10% To 100% F.L) | 3 | 10 | % | ||
| Ripple & Noise | BW=DC To 20MHz | 75 | 150 | mVp-p | |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Isolation Capacitance | Input-output,100KHz/0.1V | 20 | pF | ||
| Switching Frequency | Full load, nominal input @5V Vin | 215 | KHz | ||
| Full load, nominal input @other Vin | 250 | KHz | |||
| Operating Temperature | -40 | +105 | °C | ||
| Storage Temperature | -55 | +125 | °C | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case material | DAP | ||||
| MTBF | MIL-HDBK-217F @25°C | 3500000 | Hours | ||
| Weight | 4 | g | |||

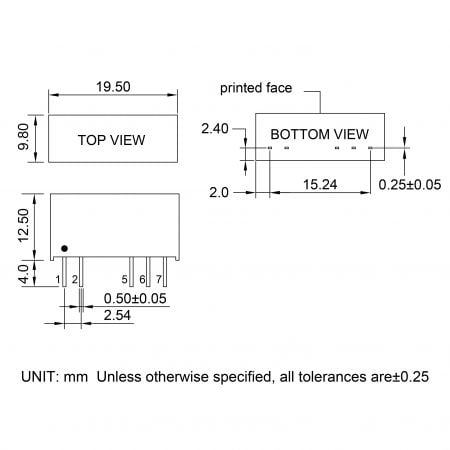

| Dimensions | 19.5 x 9.8 x 12.5 | mm | |||
