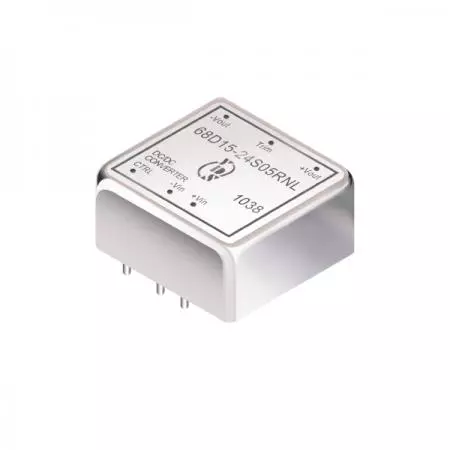

15 Watt DC to DC Power Module | 1"x1" Size | 89% Efficiency | Single & Dual Output | 1.5KVdc Isolated For Industry and Telecom/Datacom equipments
15 watt DC to DC power converter with 1.5KV isolation voltage and wide input 2:1 voltage range. 68D15 has single output and dual output specifications. This product uses UL94V-0 packaging material. The operating environment temperature ranges is from -40°C to +85°C. The efficiency is up to 89%. This product will test by 100% high temperature pre-burn before shipment.
As a DC-DC converter manufacturer who understands your needs, we offer an industry standard DC to DC converter for electronic instruments. This 15W Isolated DC DC Converter 1x1 Inch 2:1 Input DIP Module delivers High Efficiency DC-DC performance and is EN55032 EN55035 DC DC converter module 1 inch and ICES-003 compliant DC DC converter. Our Compact DC-DC converter is ideal for PCB mount DC DC converter DIP in wireless networks, offering an Economical DC to DC Converter that is RoHS & REACH Compliant Power certified. We also provide DC-DC Converter OEM/ODM Service for Customized DIL DC-DC Converter in aerospace and telecommunications.
The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Input Voltage | Input Current | Output Voltage | Output Current | Efficiency | |
|---|---|---|---|---|---|---|
| Vdc | No Load (mA TYP) | Full Load (mA TYP) | Vdc | Full Load (mA) | %TYP | |
| 68D15-12S03RNL | 9-18 | 60 | 1294 | 3.3 | 4000 | 85 |
| 68D15-12S05RNL | 9-18 | 60 | 1453 | 5 | 3000 | 86 |
| 68D15-12S12RNL | 9-18 | 30 | 1420 | 12 | 1250 | 88 |
| 68D15-12S15RNL | 9-18 | 30 | 1420 | 15 | 1000 | 88 |
| 68D15-12D12RNL | 9-18 | 30 | 1420 | ± 12 | ± 625 | 88 |
| 68D15-12D15RNL | 9-18 | 30 | 1420 | ± 15 | ± 500 | 88 |
| 68D15-24S03RNL | 18-36 | 50 | 647 | 3.3 | 4000 | 85 |
| 68D15-24S05RNL | 18-36 | 50 | 718 | 5 | 3000 | 87 |
| 68D15-24S12RNL | 18-36 | 20 | 702 | 12 | 1250 | 89 |
| 68D15-24S15RNL | 18-36 | 20 | 702 | 15 | 1000 | 89 |
| 68D15-24D12RNL | 18-36 | 20 | 710 | ± 12 | ± 625 | 88 |
| 68D15-24D15RNL | 18-36 | 20 | 710 | ± 15 | ± 500 | 88 |
| 68D15-48S03RNL | 36-75 | 40 | 323 | 3.3 | 4000 | 85 |
| 68D15-48S05RNL | 36-75 | 40 | 363 | 5 | 3000 | 86 |
| 68D15-48S12RNL | 36-75 | 20 | 359 | 12 | 1250 | 87 |
| 68D15-48S15RNL | 36-75 | 20 | 351 | 15 | 1000 | 89 |
| 68D15-48D12RNL | 36-75 | 20 | 355 | ± 12 | ± 625 | 88 |
| 68D15-48D15RNL | 36-75 | 20 | 355 | ± 15 | ± 500 | 88 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Types | 2:1 | ||||
| Filter | PI Network | ||||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | Full load@Vin(nom.) | ± 2 | % | ||
| Short Circuit Protection | Hiccup, automatic Recovery | ||||
| Line Regulation | ± 0.5 | % | |||
| Load Regulation | Single Dual(Balance Load) | ± 0.5 ± 1 | % | ||
| Cross Regulation | Dual (25% To 100% Load) | ± 5 | % | ||
| Ripple & Noise | Output:3-15V TYPES BW=DC To 20MHz | 100 | mVp-p | ||
| Ripple & Noise | Output > 15V TYPES BW=DC To 20MHz | 1% of Vout | mVp-p | ||
| Transient response setting time | 25% load step change | 250 | us | ||
| External Trim Adj. Range | ± 10 | % |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Voltage | 1500 | Vdc | |||
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | 400 | KHz | |||
| Operating Temperature | With derating | -40 | +85 | °C | |
| Storage Temperature | -55 | +125 | °C | ||
| Temperature Coefficient | 100% Load | ± 0.03 | %/°C | ||
| Case Temperature | +105 | °C | |||
| Humidity | Non Condensing | 5 | 95 | % | |
| Cooling | Natural Convection (20LFM) | ||||
| Case Material | Nickel Coated Copper With Non-Conductive Base | ||||
| MTBF | MIL-HDBK-217F@25℃ | 560000 | Hours | ||
| Weight | 16.5 | g | |||

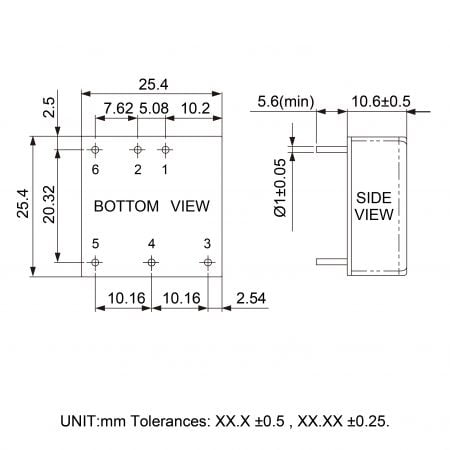

| Dimensions | 25.4 x 25.4 x 10.6 | mm | |||
