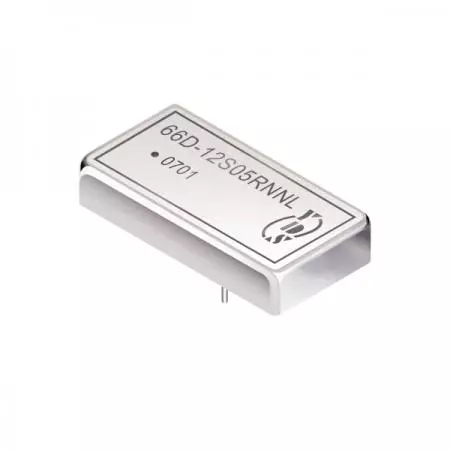

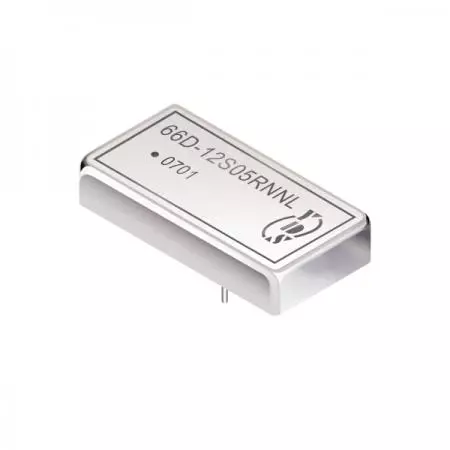

5W DC-DC Converter In DIL5 Package With 2:1 Wide Input Range 1500V Isolation And 80% Efficiency

5 0 Reviews

5W DC-DC Converter in DIL5 Package with 2:1 Wide Input Range 1500V Isolation and 80% Efficiency

66D Series

5 Watt DC to DC Power Module | 2" x 1" Size | 1.5KV Isolated | Single & Dual Output | Short Circuit Protection For Industry and Sensing equipment

5 watt DC to DC power converter features 1.5KV isolation voltage and wide input 2:1 voltage range. There are single output and dual output specifications to choose from. 66D series is available in a DIL package. The operating ambient temperature from -40°C to +85°C. The efficiency is up to 80%. It is a regulated output power conversion.

Elevate your electronic instruments and aviation applications with our industrial DC-DC power module, designed for ultimate reliability. This Board mount isolated DC-DC converter offers a Wide Input DC to DC Converter range, featuring a Regulated DC-DC Converter with an integrated Short Circuit Protection DC-DC Module. As a Cost-effective DC-DC converter, our Isolated DC to DC Converter provides RoHS & REACH Compliant Power for wireless networks and telecom/datacom. We also offer specialized OEM/ODM DC-DC Power Module services for sensing devices and measurement technology.

The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.

Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!

Quantity:



Inquire Add to Basket

Product Description1

5W 1.5KV Isolation 2:1 DIP DC-DC Converter(66D Series)

Features

2:1 wide input voltage.
Efficiency to 80%.
1500Vdc isolation.
MTBF:>1,500,000 hrs.
Operating temperature:-40°C to +85°C.

Applications

Industry equipment.
Sensing equipment.
Instruments.
Wireless Network.
Telecom/Datacom.
Measurement.
Aviation.

Specifications typical at TA = 25°C, nominal input voltage and rated output current unless otherwise specified

Part Number	Input Voltage	Output Voltage	Output Current	Efficiency
Part Number	Vdc	Vdc	mA	%TYP
66D-12S05RNNL	9-18	5	1000	75
66D-12S12RNNL	9-18	12	470	80
66D-12S15RNNL	9-18	15	400	80
66D-12D12RNNL	9-18	± 12	± 230	80
66D-12D15RNNL	9-18	± 15	± 190	80
66D-24S05RNNL	18-36	5	1000	75
66D-24S12RNNL	18-36	12	470	80
66D-24S15RNNL	18-36	15	400	80
66D-24D12RNNL	18-36	± 12	± 230	80
66D-24D15RNNL	18-36	± 15	± 190	80
66D-48S05RNNL	36-72	5	1000	80
66D-48S12RNNL	36-72	12	470	80
66D-48S15RNNL	36-72	15	400	80
66D-48D12RNNL	36-72	± 12	± 230	80
66D-48D15RNNL	36-72	± 15	± 190	80

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Types				2:1
Filter	Capacitor

Output Specifications

Parameters	Conditions	Typ	Max	Units
Voltage Tolerance			± 2	%
Short Circuit Protection	Continuous
Line Regulation			± 0.5	%
Load Regulation	Single		± 0.5	%
Load Regulation	Dual		± 2.0	%
Ripple & Noise	BW=DC To 20MHz		100	mVp-p
Transient response setting time	50% load step change	350		us

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency			200		KHz
Operating Temperature		-40		+85	°C
Humidity	Non Condensing			95	%
Cooling	Free air Convection
Case Material	Nickel Coated With Non-Conductive Base
Weight		36.5			g

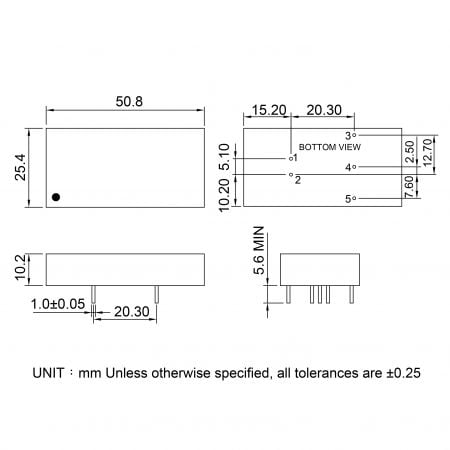

Dimensions		50.8 x 25.4 x 10.2			mm
