6 Watt DC to DC Power Module | 1.25"x0.8" Size | 88% Efficiency | Single & Dual Output | Short Circuit Protection For Measurement and Industry equipment

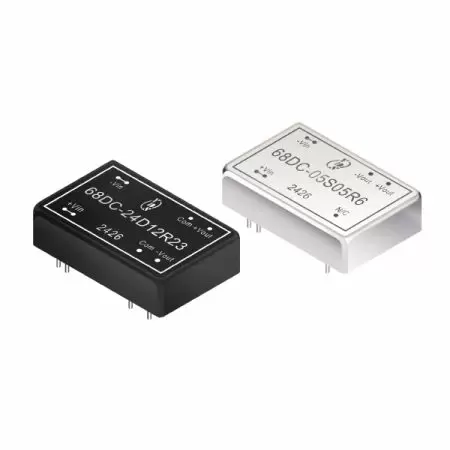

6watt 1.5KV~3KV isolation DC to DC power converter has wide input 2:1/4:1 voltage range. It has single output and dual output specifications. 68DC-6W series is available in a 24 pin DIL package. The efficiency is up to 88%. The operating ambient temperature is from -40°C to +85°C.
For demanding industrial equipment and aerospace needs, our industrial wide input DC DC converter provides a safety isolated DC to DC converter solution. As a professional DC-DC converter manufacturer DIP module who understands your needs, we offer this High Efficiency 6W DC-DC unit featuring a Short Circuit Protection DC-DC Module. This PCB mount DC to DC converter DIP is ideal for wireless networks and measurement technology, ensuring reliable Isolated DC-DC Converter performance. Our Cost-effective DC-DC converter is fully RoHS & REACH Compliant Power certified, making this low power DC to DC converter module a top choice. We also provide dedicated DC-DC Converter OEM/ODM Service for any customized industrial DC DC converter requirements.
The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Input Voltage | Output Voltage | Output Current | Input Current | Efficiency | Capacitive Load(μF) | Package Style | |
|---|---|---|---|---|---|---|---|---|
| No Load | Full Load | |||||||
| Vdc | Vdc | mA | mA | %TYP | %TYP | Max. | ||
| 68DC-05S03RX6 | 4.5-9 | 3.3 | 1500 | 10 | 1320 | 75 | 1800 | 1/2 |
| 68DC-05S05RX6 | 4.5-9 | 5 | 1200 | 10 | 1538 | 78 | 1000 | 1/2 |
| 68DC-05S09RX6 | 4.5-9 | 9 | 667 | 10 | 1464 | 82 | 680 | 1/2 |
| 68DC-05S12RX6 | 4.5-9 | 12 | 500 | 10 | 1429 | 84 | 470 | 1/2 |
| 68DC-05S15RX6 | 4.5-9 | 15 | 400 | 10 | 1429 | 84 | 220 | 1/2 |
| 68DC-05S24RX6 | 4.5-9 | 24 | 250 | 10 | 1429 | 84 | 100 | 1/2 |
| 68DC-05D05RX6 | 4.5-9 | ± 5 | ± 600 | 10 | 1538 | 78 | 680 | 1/2 |
| 68DC-05D12RX6 | 4.5-9 | ± 12 | ± 250 | 10 | 1429 | 84 | 470 | 1/2 |
| 68DC-05D15RX6 | 4.5-9 | ± 15 | ± 200 | 10 | 1429 | 84 | 220 | 1/2 |
| 68DC-05D24RX6 | 4.5-9 | ± 24 | ± 125 | 10 | 1429 | 84 | 100 | 1/2 |
| 68DC-24S03RX6 | 9-36 | 3.3 | 1500 | 5 | 268 | 77 | 1800 | 1/2 |
| 68DC-24S05RX6 | 9-36 | 5 | 1200 | 5 | 305 | 82 | 1000 | 1/2 |
| 68DC-24S09RX6 | 9-36 | 9 | 667 | 5 | 298 | 84 | 680 | 1/2 |
| 68DC-24S12RX6 | 9-36 | 12 | 500 | 5 | 294 | 85 | 470 | 1/2 |
| 68DC-24S15RX6 | 9-36 | 15 | 400 | 5 | 291 | 86 | 220 | 1/2 |
| 68DC-24S24RX6 | 9-36 | 24 | 250 | 5 | 291 | 86 | 100 | 1/2 |
| 68DC-24D05RX6 | 9-36 | ± 5 | ± 600 | 5 | 305 | 82 | 680 | 1/2 |
| 68DC-24D12RX6 | 9-36 | ± 12 | ± 250 | 5 | 294 | 85 | 470 | 1/2 |
| 68DC-24D15RX6 | 9-36 | ± 15 | ± 200 | 5 | 291 | 86 | 220 | 1/2 |
| 68DC-24D24RX6 | 9-36 | ± 24 | ± 125 | 5 | 291 | 86 | 100 | 1/2 |
| 68DC-48S03RX6 | 18-75 | 3.3 | 1500 | 5 | 131 | 79 | 1800 | 1/2 |
| 68DC-48S05RX6 | 18-75 | 5 | 1200 | 5 | 150 | 82 | 1000 | 1/2 |
| 68DC-48S09RX6 | 18-75 | 9 | 667 | 5 | 147 | 85 | 680 | 1/2 |
| 68DC-48S12RX6 | 18-75 | 12 | 500 | 5 | 144 | 87 | 470 | 1/2 |
| 68DC-48S15RX6 | 18-75 | 15 | 400 | 5 | 142 | 88 | 220 | 1/2 |
| 68DC-48S24RX6 | 18-75 | 24 | 250 | 5 | 144 | 87 | 100 | 1/2 |
| 68DC-48D05RX6 | 18-75 | ± 5 | ± 600 | 5 | 150 | 83 | 680 | 1/2 |
| 68DC-48D12RX6 | 18-75 | ± 12 | ± 250 | 5 | 144 | 87 | 470 | 1/2 |
| 68DC-48D15RX6 | 18-75 | ± 15 | ± 200 | 5 | 144 | 88 | 220 | 1/2 |
Note:
1. X represents packaging. When there is no tail decoration, the CASE material is copper shell nickel plated with an isolation voltage of 1.5KVdc. When X=2, the CASE material is DAP with an isolation voltage of 3KVdc
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Types | Others input | 4:1 | |||
| 5VDC input | 2:1 | ||||
| Filter | Pi filter | ||||
| Surge Voltage | 5VDC (1sec. max.) | 12 | V | ||
| 24VDC (1sec. max.) | 50 | V | |||
| 48VDC (1sec. max.) | 100 | V | |||
| Start-up Voltage | 5VDC | 4.5 | V | ||
| 24VDC | 9 | V | |||
| 48VDC | 18 | V | |||
| Input Undervoltage Protection | 5VDC | 4 | V | ||
| 24VDC | 7 | V | |||
| 48VDC | 15 | V | |||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | ± 1 | ± 3 | % | ||
| Short Circuit Protection | Input voltage range | Continuous | |||
| Over-voltage Protection | 110 | 160 | %Vo | ||
| Over-current Protection | 110 | 140 | 210 | %Io | |
| Temperature Coefficient | Full load | ± 0.03 | %/℃ | ||
| Line Regulation | ± 0.5 | % | |||
| Load Regulation | Single (F.L To 10% Load) | ± 0.8 | % | ||
| Load Regulation | Dual (F.L To 10% Load) | ± 1.0 | % | ||
| Ripple & Noise | BW=DC To 20MHz | 100 | mVp-p | ||
| Transient response setting time | 50% load step change | 350 | us | ||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Voltage | Input to Output ( 60sec/0.5mA ) | 1500 | Vdc | ||
| 3000 | Vdc | ||||
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Isolation Capacitance | Input-output capacitance at 100kHz/0.1V | 1000 | pF | ||
| Switching Frequency | 330 | KHz | |||
| Operating Temperature | Temperature Derating Graph | -40 | +85 | °C | |
| Storage Temperature | -55 | +125 | °C | ||
| Pin Soldering Resistance Temperature | Soldering spot is 1.5mm away from case for 10 | +300 | °C | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Safety Standard | EN62368-1 | ||||
| MTBF | MIL-HDBK-217F@25℃, Ground Benign. | 1500*103 | Hours | ||
| Case Material | Packing1 | Nickel Coated Copper With Non-Conductive Base | |||
| Packing2 | DAP | ||||
| Weight | Packing1/2 | 16.8/12.8 | g | ||

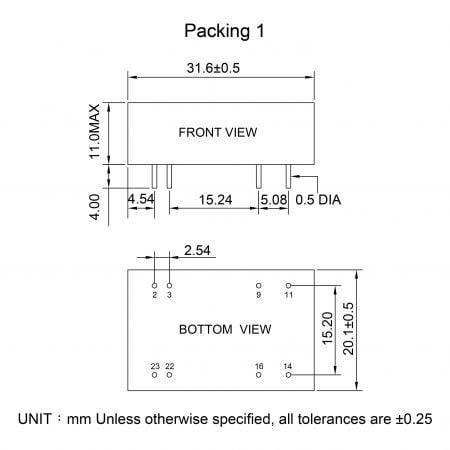

| Dimensions | Packing1 | 31.6x20.1x11.0 | mm | ||

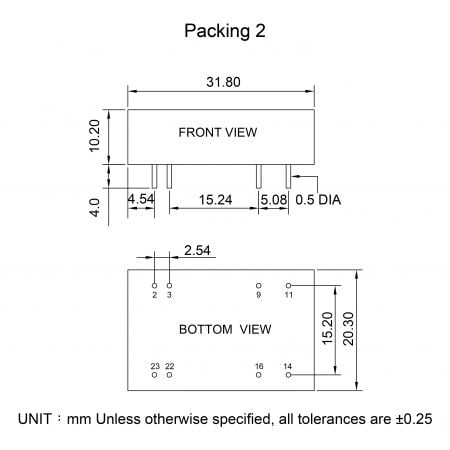

| Packing2 | 31.8x20.3x10.2 | mm | |||
