1W DIL14 Twin Output DC-DC Converter, 1KV Isolation

5 0 Reviews

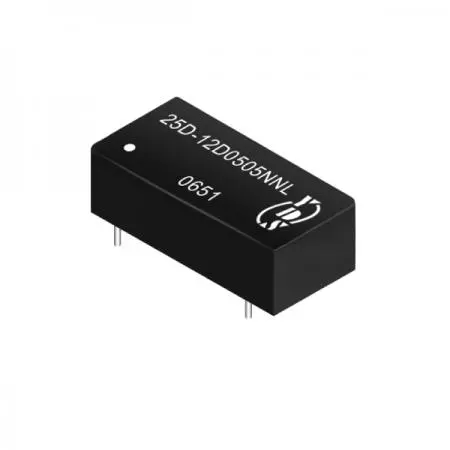

1W DIL14 Twin Output DC-DC Converter, 1KV Isolation

25D Series

DIL14 Dual Output DC to DC Converter For Industry and Telecom/Datacom equipment

1 watt unregulated output type DC to DC power converter with 1KV isolation voltage. 25D series is available in DIL package. The internal is SMD structure. The operating ambient temperatures is from -40°C to +85°C, and the efficiency is up to 85%. This product has industry-standard pins and no external components required.

This Series provides cost-effective power modules including unregulated DC-DC converters and isolated DC to DC converters. These RoHS & REACH compliant power solutions in a DIL DC-DC converter or board mount DC-DC converter package are ideal compact DC to DC converters for industrial power supply DC-DC needs in sensing, wireless, telecom, and measurement technology.

The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.

Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!

Quantity:



Inquire Add to Basket

Product Description1

1W 1KV Isolation DIP DC-DC Converter(25D Series) | PCB mount DC to DC converter DIL14 | industrial isolated DC-DC converter

Features

14PIN DIL package.
High efficiency up to 85%.
Internal SMD construction.
Unregulated output types.
Operating temperature:-40℃ to +85℃.
No external component required.
Industry standard pinout.

Applications

Industry equipment.
Sensing equipment.
Instruments.
Wireless Network.
Telecom/Datacom.
Measurement.

Specifications typical at TA = 25°C, nominal input voltage and rated output current unless otherwise specified

Part Number	Output2		Efficiency
Part Number	Voltage (VDC)	Current (mA)	%TYP
25D-XXDXX03NNL	3.3	150	70
25D-XXDXX05NNL	5	100	75
25D-XXDXX09NNL	9	56	75
25D-XXDXX12NNL	12	42	75
25D-XXDXX15NNL	15	34	75
25D-XXDXX24N2NL	24	21	75

Note:
1.”XX” Is Voltage:03＝3.3Vdc,05=5Vdc,09=9Vdc 12=12Vdc,15=15Vdc,24=24Vdc.
2. 3.3V for output only, not for input.
3. The input voltage increases, there will be an increase in efficiency.
4. Over 24Vdc input voltage or Output voltage, using the 2nd package

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	Vo,Io Nom			± 5	%
Filter	Capacitor

Output Specifications

Parameters	Conditions	Typ	Max	Units
Voltage Tolerance	100% full load		± 5	%
Short Circuit Protection	Short Term		1	Sec
Line Regulation	For 1.0% of Vin	1.2		%
Load Regulation	3.3V,5V (10% To 100% F.L)		15	%
Load Regulation	9V,12V,15V,24V (10% To 100% F.L)		10	%
Ripple & Noise	BW=DC To 20MHz		100	mVp-p
Transient response setting time	50% load step change	350		us

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency	Full load, nominal input		100		KHz
Operating Temperature		-40		+85	°C
Humidity	Non Condensing			95	%
Cooling	Free air Convection
Case material	DAP
MTBF	MIL-HDBK-217F@25℃	3500000			Hours
Weight		2.3 or 2.8			g

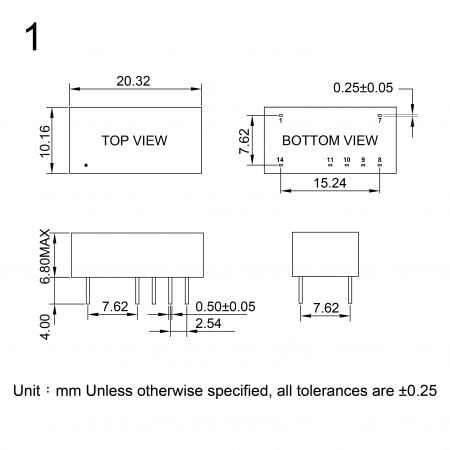

Dimensions		20.32 x 10.16 x 6.80			mm

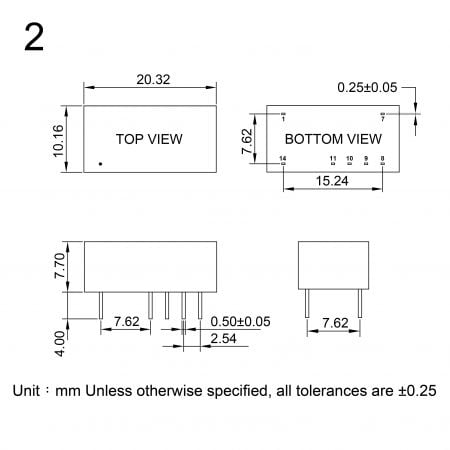

Dimensions		20.32 x 10.16 x 7.70			mm
