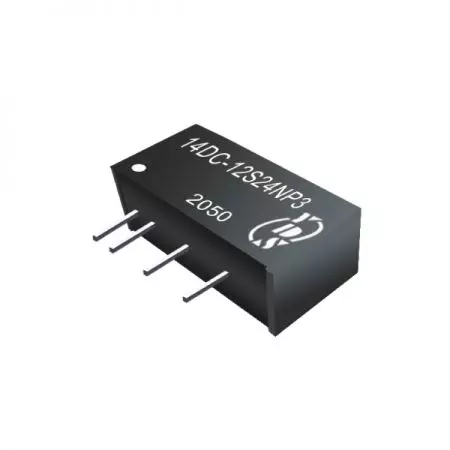

3W SIP7 Single/Dual Output DC to DC Converter For Industry and Telecom/Datacom equipment
3W high efficient SIP7 package DC-DC converter-14DC-3W series is typically used in cost sensitive, general purpose power isolation and voltage matching applications. Despite its low cost, it is a fully specified converter with 1.5KVDC & 3KVDC isolation. The operating temperature range is from -40°C to +85°C. It has a high efficiency of up to 88%.
Our DC-DC power converter products are RoHS compliant and can be customized, with a 3-year warranty on sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Output Voltage | Output Current | Efficiency | Capacitive Load(μF) |
|---|---|---|---|---|
| Vdc | mA | %TYP | Max. | |
| 14DC-12S05NP3(H3) | 5 | 600 | 85 | 1000 |
| 14DC-12S12NP3(H3) | 12 | 250 | 87 | 220 |
| 14DC-12S15NP3(H3) | 15 | 200 | 88 | 220 |
| 14DC-12S24NP3(H3) | 24 | 125 | 88 | 47 |
| 14DC-12D05NP3(H3) | ± 5 | ± 300 | 86 | ± 560 |
| 14DC-12D12NP3(H3) | ± 12 | ± 125 | 86 | ± 100 |
| 14DC-12D15NP3(H3) | ± 15 | ± 100 | 88 | ± 100 |
| 14DC-12D24NP3(H3) | ± 24 | ± 63 | 88 | ± 22 |
| 14DC-15S05NP3(H3) | 5 | 600 | 85 | 1000 |
| 14DC-15S12NP3(H3) | 12 | 250 | 87 | 220 |
| 14DC-15S15NP3(H3) | 15 | 200 | 88 | 220 |
| 14DC-15S24NP3(H3) | 24 | 125 | 88 | 47 |
| 14DC-15D05NP3(H3) | ± 5 | ± 300 | 86 | ± 560 |
| 14DC-15D12NP3(H3) | ± 12 | ± 125 | 86 | ± 100 |
| 14DC-15D15NP3(H3) | ± 15 | ± 100 | 88 | ± 100 |
| 14DC-15D24NP3(H3) | ± 24 | ± 63 | 88 | ± 22 |
| 14DC-24S05NP3(H3) | 5 | 600 | 85 | 1000 |
| 14DC-24S12NP3(H3) | 12 | 250 | 87 | 220 |
| 14DC-24S15NP3(H3) | 15 | 200 | 88 | 220 |
| 14DC-24S24NP3(H3) | 24 | 125 | 88 | 47 |
| 14DC-24D05NP3(H3) | ± 5 | ± 300 | 86 | ± 560 |
| 14DC-24D12NP3(H3) | ± 12 | ± 125 | 86 | ± 100 |
| 14DC-24D15NP3(H3) | ± 15 | ± 100 | 88 | ± 100 |
| 14DC-24D24NP3(H3) | ± 24 | ± 63 | 88 | ± 22 |
Note：
1:No suffix is standard isolation (1.5KVDC) e.g, 14DC-12S05NP3,
*add suffix “H3” for 3KVDC isolation, e.g, 14DC-12S05NP3H3.
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Range | Vo,Io Nom | ± 10 | % | ||
| Filter | Capacitor |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ±5 | % | ||
| Short Circuit Protection | Continuous | ||||
| Line Regulation | For 1.0% of Vin | 1.2 | % | ||
| Load Regulation | 5V(10% To 100% F.L) | 9 | 15 | % | |
| 12V(10% To 100% F.L) | 7 | 10 | % | ||
| 15V(10% To 100% F.L) | 6 | 10 | % | ||
| 24V(10% To 100% F.L) | 5 | 10 | % | ||
| Ripple & Noise | BW=DC To 20MHz | 100 | 150 | mVp-p | |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Isolation Capacitance | Input-output,100KHz/0.1V | 20 | pF | ||
| Switching Frequency | Full load, nominal input | 250 | KHz | ||
| Operation Temperature | -40 | +85 | °C | ||
| Storage Temperature | -55 | +125 | °C | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case material | DAP | ||||
| MTBF | MIL-HDBK-217F @25°C | 3500000 | Hours | ||
| Weight | 2.7 | g | |||

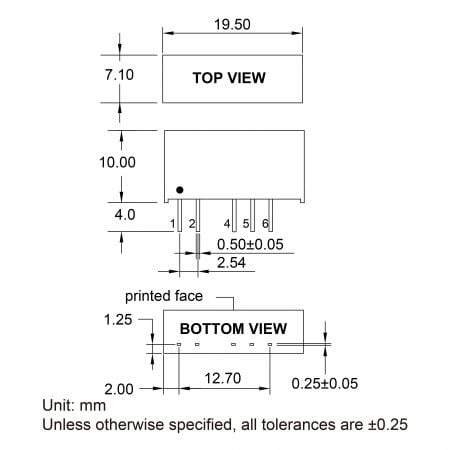

| Dimensions | 19.5 x 7.1 x 10.0 | mm | |||
