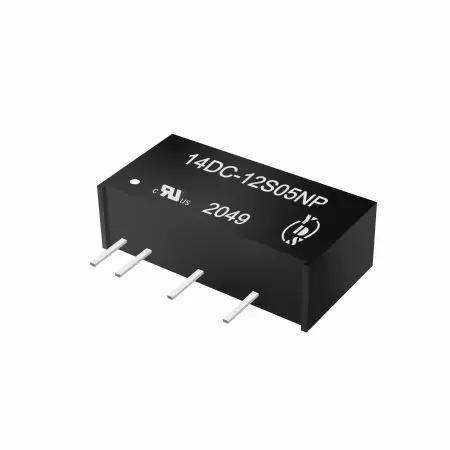

1W SIP7 Single/Dual Output DC to DC Converter For Industry and Telecom/Datacom equipment
1W high efficient 7PIN SIP package DC-DC converter is typically used in cost sensitive, general purpose power isolation and voltage matching applications. Despite its low cost, it is a fully specified converter with 1.5KVDC & 3KVDC isolation. The operating temperature range is from -40°C to +105°C. It has a high efficiency of up to 87%.
High-quality Industrial power supply DC-DC and Board mount DC-DC converter for industrial equipment, wireless networking, telecom/datacom, and measurement equipment. We provide Isolated DC to DC Converter solutions with CE marked DC-DC converter, UL certified DC-DC converter, 62368-1 Certified DC-DC Converter, and CB Report DC DC Converter.
Our DC-DC power converter products are RoHS compliant and can be customized, with a 3-year warranty on sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Output Voltage | Output Current | Efficiency | Capacitive Load(μF) |
|---|---|---|---|---|
| Vdc | mA | %TYP | Max. | |
| 14DC-YYS03NP(H3) | 3.3 | 303 | 76 | 2400 |
| 14DC-YYS05NP(H3) | 5 | 200 | 82 | 2400 |
| 14DC-YYS09NP(H3) | 9 | 112 | 83 | 1000 |
| 14DC-YYS12NP(H3) | 12 | 84 | 84 | 470 |
| 14DC-YYS15NP(H3) | 15 | 67 | 84 | 330 |
| 14DC-YYS24NP(H3) | 24 | 42 | 85 | 100 |
| 14DC-YYD03NP(H3) | ± 3.3 | ± 151 | 76 | ± 1200 |
| 14DC-YYD05NP(H3) | ± 5 | ± 100 | 82 | ± 1200 |
| 14DC-YYD09NP(H3) | ± 9 | ± 56 | 83 | ± 470 |
| 14DC-YYD12NP(H3) | ± 12 | ± 42 | 84 | ± 220 |
| 14DC-YYD15NP(H3) | ± 15 | ± 34 | 84 | ± 220 |
| 14DC-YYD24NP(H3) | ± 24 | ± 21 | 85 | ± 47 |
| 14DC-XXS03NP(H3) | 3.3 | 303 | 78 | 2400 |
| 14DC-XXS05NP(H3) | 5 | 200 | 82 | 2400 |
| 14DC-XXS09NP(H3) | 9 | 112 | 85 | 1000 |
| 14DC-XXS12NP(H3) | 12 | 84 | 85 | 680 |
| 14DC-XXS15NP(H3) | 15 | 67 | 87 | 330 |
| 14DC-XXS24NP(H3) | 24 | 42 | 85 | 220 |
| 14DC-XXD03NP(H3) | ± 3.3 | ± 151 | 78 | ± 1200 |
| 14DC-XXD05NP(H3) | ± 5 | ± 100 | 82 | ± 1200 |
| 14DC-XXD09NP(H3) | ± 9 | ± 56 | 85 | ± 680 |
| 14DC-XXD12NP(H3) | ± 12 | ± 42 | 85 | ± 330 |
| 14DC-XXD15NP(H3) | ± 15 | ± 34 | 87 | ± 220 |
| 14DC-XXD24NP(H3) | ± 24 | ± 21 | 85 | ± 100 |
Note：
1. No suffix is standard isolation (1.5KVDC) e.g, 14DC-05S05N, *add suffix “H3” for 3KVDC isolation.
2. ” YY ” is input voltage : 03=3.3Vdc, 05=5Vdc, 09=9Vdc. e.g, 14DC-03S05NP, 14DC-05S12NPH3, 14DC-09S15NP.
3. ” XX ” is input voltage : 12=12Vdc, 15=15Vdc, 24=24Vdc. e.g, 14DC-12S05NP, 14DC-15S12NPH3, 14DC-24S15NP.
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Range | Vo,Io Nom @Vin:3.3V, 5V, 9V | ± 10 | % | ||
| Vo,Io Nom @Vin:12V,15V,24V | ± 20 | % | |||
| Filter | Capacitor |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ±5 | % | ||
| Short Circuit Protection | Continuous | ||||
| Line Regulation | For 1.0% of Vin | 1.2 | % | ||
| Load Regulation | 3.3V(10% To 100% F.L) | 15 | 20 | % | |
| 5V(10% To 100% F.L) | 10 | 15 | % | ||
| 9V(10% To 100% F.L) | 8 | 10 | % | ||
| 12V(10% To 100% F.L) | 7 | 10 | % | ||
| 15V(10% To 100% F.L) | 6 | 10 | % | ||
| 24V(10% To 100% F.L) | 5 | 10 | % | ||
| Ripple & Noise | BW=DC To 20MHz @Vo:3.3V,5V,9V,12V,15V | 30 | 75 | mVp-p | |
| BW=DC To 20MHz @ Vo:24V | 50 | 100 | mVp-p | ||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Isolation Capacitance | Input-output,100KHz/0.1V | 20 | pF | ||
| Switching Frequency | Full load, nominal input @3.3V, 5V Vin | 215/370 | KHz | ||
| Full load, nominal input @other Vin | 250 | KHz | |||
| Operation Temperature | -40 | +105 | °C | ||
| Storage Temperature | -55 | +125 | °C | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case material | DAP | ||||
| MTBF | MIL-HDBK-217F @25°C | 3500000 | Hours | ||
| Weight | 2.1 | g | |||

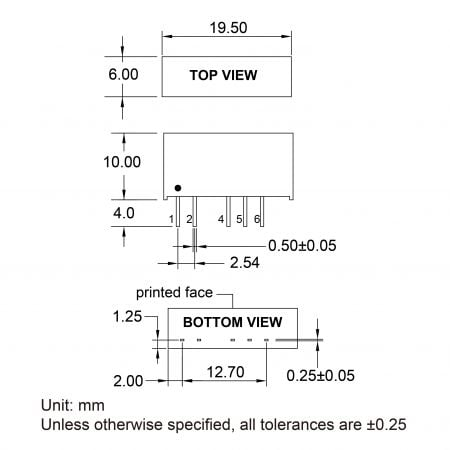

| Dimensions | 19.5 x 6.0 x 10.0 | mm | |||
