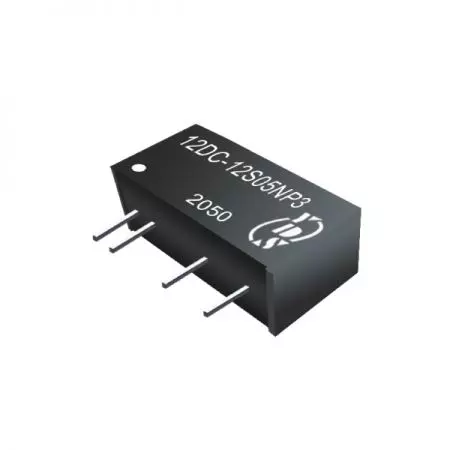

DC-DC Converter, High Efficient, 1.5KVDC~6KVDC Isolation, 3W, SIP7 Package

‹ ›

Product Features

DC-DC Converter, High Efficient, 1.5KVDC~6KVDC Isolation, 3W, SIP7 Package

12DC-3W Series

Isolated DC to DC Power Conversion 3W for Communication and Industrial Systems

7PIN SIP package 3W high efficient DC-DC converter is typically used in cost sensitive, general purpose power isolation and voltage matching applications. Despite its low cost, it is a fully specified converter with 1.5KVDC~6KVDC isolation. The operating temperature is from -40°C to + 85°C. The efficiency is as high as 88%.

DC-DC converter supplier providing compact, cost-effective power modules for board mount. Our unregulated and industrial power supply units are UL Listed with CB Report, perfect for instruments, industrial equipment, telecom, wireless, and measurement devices.

Our DC-DC power converter products are RoHS compliant and can be customized, with a 3-year warranty on sale.

Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!

High efficient 3W 1.5KVDC~6KVDC isolation DC-DC Converters | Distributed power architecture | isolated power module

Features

7PIN SIP Package.
No-load input current as low as 8mA.
Continuous short-circuit protection.
High Efficiency up to 88%.
Unregulated Output Types.
1.5KVDC ~ 6KVDC Isolation.
Operating Temperature:-40°C to +85°C.
Industry Standard Pinout.
Design refer to IEC62368, UL62368, EN62368.

Applications

Industry equipment.
Instruments.
Wireless Network.
Telecom/Datacom.
Measurement.

Specifications typical at TA = 25°C, nominal input voltage and rated output current unless otherwise specified

Part Number	Output Voltage	Output Current	Efficiency	Capacitive Load(μF)
Part Number	Vdc	mA	%TYP	Max.
12DC-12S05NP3^(H3)	5	600	85	1000
12DC-12S12NP3^(H3)	12	250	87	220
12DC-12S15NP3^(H3)	15	200	88	220
12DC-12S24NP3^(H3)	24	125	88	47
12DC-12D05NP3^(H3)	± 5	± 300	86	± 560
12DC-12D12NP3^(H3)	± 12	± 125	86	± 100
12DC-12D15NP3^(H3)	± 15	± 100	88	± 100
12DC-12D24NP3^(H3)	± 24	± 63	88	± 22
12DC-15S05NP3^(H3)	5	600	85	1000
12DC-15S12NP3^(H3)	12	250	87	220
12DC-15S15NP3^(H3)	15	200	88	220
12DC-15S24NP3^(H3)	24	125	88	47
12DC-15D05NP3^(H3)	± 5	± 300	86	± 560
12DC-15D12NP3^(H3)	± 12	± 125	86	± 100
12DC-15D15NP3^(H3)	± 15	± 100	88	± 100
12DC-15D24NP3^(H3)	± 24	± 63	88	± 22
12DC-24S05NP3^(H3)	5	600	85	1000
12DC-24S12NP3^(H3)	12	250	87	220
12DC-24S15NP3^(H3)	15	200	88	220
12DC-24S24NP3^(H3)	24	125	88	47
12DC-24D05NP3^(H3)	± 5	± 300	86	± 560
12DC-24D12NP3^(H3)	± 12	± 125	86	± 100
12DC-24D15NP3^(H3)	± 15	± 100	88	± 100
12DC-24D24NP3^(H3)	± 24	± 63	88	± 22

Note:
1:No suffix is standard isolation (1.5KVDC) e.g, 12DC-12S05NP3，
*add suffix“H3” for 3KVDC isolation,*add suffix“H4” for 4KVDC isolation, *add suffix“H5” for 5.2KVDC isolation,*add suffix“H6” for 6KVDC isolation, e.g, 12DC-12S05NP3H3, 12DC-24D24NP3H6.

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Range	12V Input Models	10.8	12	13.2	VDC
	15V Input Models	13.5	15	16.5
	24V Input Models	21.6	24	26.4
Filter	Capacitor

Output Specifications

Parameters	Conditions	Typ	Max	Units
Voltage Tolerance	100% full load		± 5	%
Short Circuit Protection	Continuous
Line Regulation	For 1.0% of Vin	1.2		%
Load Regulation	5V(10% To 100% F.L)	9	15	%
	12V(10% To 100% F.L)	7	10	%
	15V(10% To 100% F.L)	6	10	%
	24V(10% To 100% F.L)	5	10	%
Ripple & Noise	BW=DC To 20MHz	100	150	mVp-p

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Resistance	500Vdc	1000			MΩ
Isolation Capacitance	Input-output,100KHz/0.1V		20		pF
Switching Frequency	Full load, nominal input		250		KHz
Operating Temperature		-40		+85	°C
Storage Temperature		-55		+125	°C
Humidity	Non Condensing			95	%
Cooling	Free air Convection
Case material	DAP
MTBF	MIL-HDBK-217F @25°C	3500000			Hours
Weight			2.7		g
Dimensions		19.5 x 7.1 x 10.0			mm

Certification

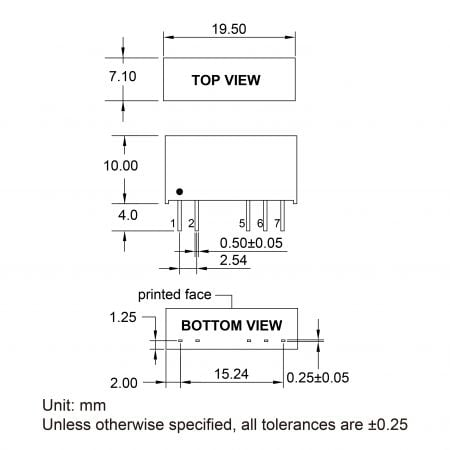

Markings and Dimensions Related Products Files Download
