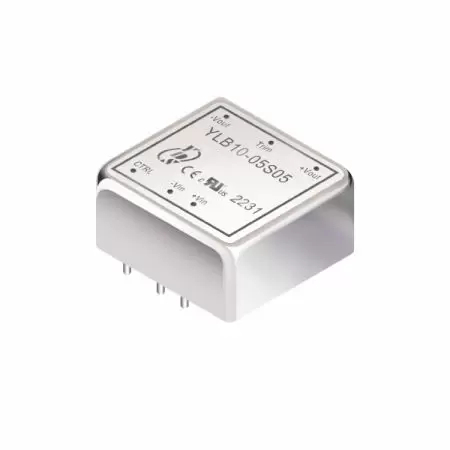

DC-DC Converter, 1'' x 1'' size, Low Voltage Input 4.5V-18V, 4:1 Wide Range Input, 6PIN DIL Package, Single Regulated Output For Industry and Measurement equipments
10 watt low voltage input 4.5V-18V single output DC to DC power converter. YLB10 series has a 1.6KV isolation voltage, and wide input 4:1 voltage range. The efficiency is up to 91%. Products with over power and short circuit protection. This product uses UL94V-0 packaging material. The operating environment temperature ranges is from -40°C to +89°C(without derating). This product will test by 100% high temperature pre-burn before shipment.
As a professional B2B isolated power converter factory, we provide a Reliable DC-DC power solution featuring the Remote on/off 10W DC-DC converter for advanced automation. Our High efficiency 10W isolated DC-DC uses galvanic isolation dc-dc converter technology and is UL/cUL/IEC/EN 62368-1 approved plus EMC EMI EN55032/EMS EN55035/Canadian ICES-003 issue7(2020)/47CFR FCC Part 15 subpart B certified. We offer Customized DIL DC-DC Converter and PCB mount DC-DC converter options through our OEM/ODM DC-DC Power Module service, ensuring every safety certified DC-DC converter is RoHS & REACH Compliant DC-DC Converter.
The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Input Voltage Range | Input Current (5Vin/12Vin) | Output Voltage | Output Current | Efficiency (5Vin/12Vin) | Maximum capacitor Load | |
|---|---|---|---|---|---|---|---|
| No Load | Full Load | ||||||
| Vdc | (mA TYP) | (mA TYP) | Vdc | mA(TYP) | %(TYP) | μF | |
| YLB10-05S05 | 4.5-18 | 20 / 15 | 2247 / 936 | 5 | 2000 | 89 / 89 | 3400 |
| YLB10-05S12 | 4.5-18 | 20 / 15 | 2246 / 926 | 12 | 833 | 89 / 90 | 590 |
| YLB10-05S15 | 4.5-18 | 20 / 15 | 2223 / 916 | 15 | 667 | 90 / 91 | 390 |
| YLB10-05S24 | 4.5-18 | 25 / 20 | 2200 / 927 | 24 | 417 | 91 / 90 | 220 |
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Input Voltage | All Models | 4.5 | 18 | Vdc | ||
| Input Surge Voltage (100 ms max.) | All Models | -0.7 | 25 | Vdc | ||
| Start-up Voltage | All Models | 4.5 | Vdc | |||
| Under Voltage Shutdown | All Models | 3.5 | Vdc | |||
| Start-up Time | Constant Resistive Load, Nominal Vin | Power-up | 30 | ms | ||
| Remote ON/OFF | 30 | |||||
| Input Filter | All Models | Internal Pi type | ||||
| Remote ON/OFF (Ctrl PIN Refer To –Vin PIN) | Positive Logic | DC/DC ON | Open or 3.5 Vdc - 12 Vdc | |||
| DC/DC OFF | Short or 0 Vdc – 1.2 Vdc | |||||
| Input Current of Ctrl PIN | -0.5 | 0.5 | mA | |||
| Remote Off Input Current | 3.5 | |||||
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Voltage Tolerance | 100% Load | -2 | +2 | % | ||
| Line Regulation | Vin(min) to Vin(max) @100% Load | -0.2 | +0.2 | % | ||
| Load Regulation | 0% Load to 100% Load | -0.5 | +0.5 | % | ||
| Ripple & Noise (BW=20MHz) | With an 0.47uF MLCC | 15Vout & 24Vout | 150 | mVp-p | ||
| 5Vout & 12Vout | 100 | |||||
| Transient Response Setting Time | 25% Load Step Change | 300 | 500 | us | ||
| Transient Response Deviation | 25% Load Step Change | -5 | ±3 | +5 | % | |
| Temperature Coefficient | -0.02 | +0.02 | %/°C | |||
| Output Power Protection | % of Io, Hiccup mode, Auto-recovery | 120 | 150 | 180 | % | |
| Short Circuit Protection | Continuous [Hiccup Mode], Auto-Recovery | |||||
| Over Voltage Protection | 5Vout | 6.2 | Vdc | |||
| 12Vout | 15 | |||||
| 15Vout | 18 | |||||
| 24Vout | 30 | |||||
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Isolation Voltage | Input to Output (60sec) | 1600 | Vdc | |||
| Input (Output) To Case (60sec) | 1000 | Vdc | ||||
| Isolation Resistance | 500Vdc | 1000 | MΩ | |||
| Isolation Capacitance | 100kHz, 1V | 2200 | pF | |||
| Switching Frequency | 100% Load, Nominal Input | 200 | KHz | |||
| Operating Ambient Temperature (Power Derating See Derating Graph) | Nominal Vin, 100% Load | YLB10-05S05, YLB10-05S12 | -40 | 85.5 | °C | |
| YLB10-05S15 | 87.4 | |||||
| YLB10-05S24 | 89.4 | |||||
| Thermal Impedance | 20LFM | 15.8 | °C/W | |||
| 100LFM | 11.3 | |||||
| 200LFM | 9.2 | |||||
| 400LFM | 6.3 | |||||
| Maximum Case Temperature | 105 | °C | ||||
| Storage Temperature | -55 | 125 | °C | |||
| Humidity | Non-Condensing | 5 | 95 | % | ||
| Cooling | Natural Convection | |||||
| Case Material | Copper | |||||
| Potting Material | Silicone (UL94-V0) | |||||
| MTBF | MIL-HDBK-217F@25℃ (calculated) | 1,468,837 | Hours | |||
| Weight | 17.2 | g | ||||

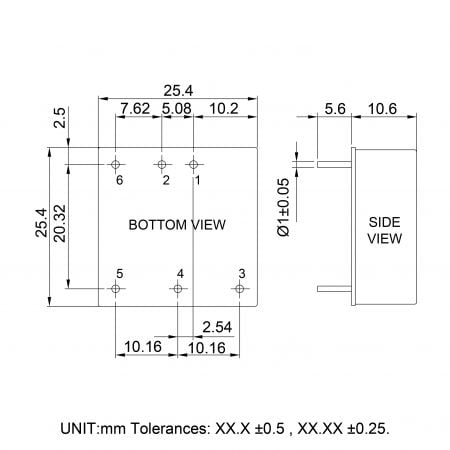

| Dimensions | 25.4 x 25.4 x 10.6 | mm | ||||
