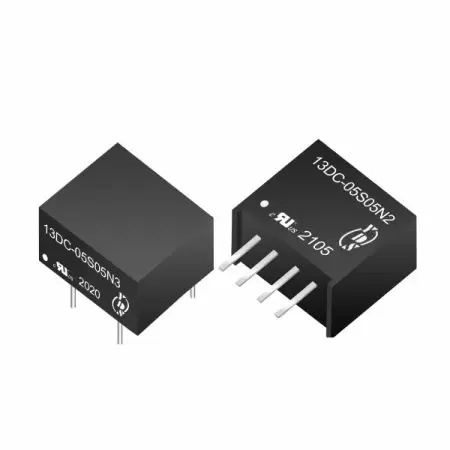

DC to DC Converter 1W Economic benefits For Industry and Telecom/Datacom equipment
High efficient 4PIN SIP & 8PIN DIL package 1W DC-DC converter is typically used in cost sensitive, general purpose power isolation and voltage matching applications. Despite its low cost, it is a fully specified converter with 1.5KVDC & 3KVDC isolation. The operating temperature is from -40°C to + 105°C. The efficiency is as high as 87%.
High efficiency and economical isolated DC to DC converters from a leading manufacturer. UL certified, CE marked, and IEC 62368-1 compliant, our solutions provide reliable power for industrial equipment, electronic instruments, wireless networks, and telecom/datacom.
Our DC-DC power converter products are RoHS compliant and can be customized, with a 3-year warranty on sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Output Voltage | Output Current | Efficiency | Capacitive Load(μF) | Package Style |
|---|---|---|---|---|---|
| Vdc | mA | %TYP | Max. | ||
| 13DC-YYS03N*P(H3) | 3.3 | 303 | 76 | 2400 | 1/2/3 |
| 13DC-YYS05N*P(H3) | 5 | 200 | 82 | 2400 | 1/2/3 |
| 13DC-YYS09N*P(H3) | 9 | 112 | 83 | 1000 | 1/2/3 |
| 13DC-YYS12N*P(H3) | 12 | 84 | 84 | 470 | 1/2/3 |
| 13DC-YYS15N*P(H3) | 15 | 67 | 84 | 330 | 1/2/3 |
| 13DC-YYS24N*P(H3) | 24 | 42 | 85 | 100 | 2/3 |
| 13DC-YYD03N3P(H3) | ± 3.3 | ± 151 | 76 | ± 1200 | 3 |
| 13DC-YYD05N3P(H3) | ± 5 | ± 100 | 82 | ± 1200 | 3 |
| 13DC-YYD09N3P(H3) | ± 9 | ± 56 | 83 | ± 470 | 3 |
| 13DC-YYD12N3P(H3) | ± 12 | ± 42 | 84 | ± 220 | 3 |
| 13DC-YYD15N3P(H3) | ± 15 | ± 34 | 84 | ± 220 | 3 |
| 13DC-YYD24N3P(H3) | ± 24 | ± 21 | 85 | ± 47 | 3 |
| 13DC-XXS03N*P(H3) | 3.3 | 303 | 78 | 2400 | 1/2/3 |
| 13DC-XXS05N*P(H3) | 5 | 200 | 82 | 2400 | 1/2/3 |
| 13DC-XXS09N*P(H3) | 9 | 112 | 85 | 1000 | 1/2/3 |
| 13DC-XXS12N*P(H3) | 12 | 84 | 85 | 680 | 1/2/3 |
| 13DC-XXS15N*P(H3) | 15 | 67 | 87 | 330 | 1/2/3 |
| 13DC-XXS24N*P(H3) | 24 | 42 | 85 | 220 | 2/3 |
| 13DC-XXD03N3P(H3) | ± 3.3 | ± 151 | 78 | ± 1200 | 3 |
| 13DC-XXD05N3P(H3) | ± 5 | ± 100 | 82 | ± 1200 | 3 |
| 13DC-XXD09N3P(H3) | ± 9 | ± 56 | 85 | ± 680 | 3 |
| 13DC-XXD12N3P(H3) | ± 12 | ± 42 | 85 | ± 330 | 3 |
| 13DC-XXD15N3P(H3) | ± 15 | ± 34 | 87 | ± 220 | 3 |
| 13DC-XXD24N3P(H3) | ± 24 | ± 21 | 85 | ± 100 | 3 |
Note：
1. No suffix is standard isolation (1.5KVDC) e.g, 13DC-15S05NP,
*add suffix “H3” for 3KVDC isolation, e.g, 13DC-12S05NPH3, 13DC-15S12NPH3.
2. ” * ” = 1 or 2 or 3 for package, No suffix * package1, When * =2, package2,
and so on, e.g,13DC-12S05N2P, 13DC-24S12N3PH3.
When the I / O is equal to 24 V, package 1 disable.
3. ”YY” Is Input Voltage : 03=3.3Vdc,05=5Vdc, 09=9Vdc e.g, 13DC-03S05N2P, 13DC- 05S12N3PH3, 13DC-09S15NP
4. ”XX” Is Input Voltage : 12=12Vdc,15=15Vdc, 24=24Vdc e.g, 13DC-12S05N3P, 13DC-15S12NPH3, 13DC-24S15N2P
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Range | Vo,Io Nom@Vin:3.3V, 5V, 9V | ± 10 | % | ||
| Vo,Io Nom@Vin:12V,15V,24V | ± 20 | % | |||
| Filter | Capacitor |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ± 5 | % | ||
| Short Circuit Protection | Continuous | ||||
| Line Regulation | For 1.0% of Vin | 1.2 | % | ||
| Load Regulation | 3.3V(10% To 100% F.L) | 15 | 20 | % | |
| 5V(10% To 100% F.L) | 10 | 15 | % | ||
| 9V(10% To 100% F.L) | 8 | 10 | % | ||
| 12V(10% To 100% F.L) | 7 | 10 | % | ||
| 15V(10% To 100% F.L) | 6 | 10 | % | ||
| 24V(10% To 100% F.L) | 5 | 10 | % | ||
| Ripple & Noise | BW=DC To 20MHz @Vo:3.3V,5V,9V,12V,15V | 30 | 75 | mVp-p | |
| BW=DC To 20MHz @Vo:24V | 50 | 100 | mVp-p | ||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Isolation Capacitance | Input-output,100KHz/0.1V | 20 | pF | ||
| Switching Frequency | Full load, nominal input @3.3V, 5V Vin | 215/370 | KHz | ||
| Full load, nominal input @other Vin | 250 | KHz | |||
| Operation Temperature | -40 | +105 | °C | ||
| Storage Temperature | -55 | +125 | °C | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case material | DAP | ||||
| MTBF | MIL-HDBK-217F @25°C | 3500000 | Hours | ||
| Weight | Package 1/2/3 | 1.1/1.5/1.5 | g | ||

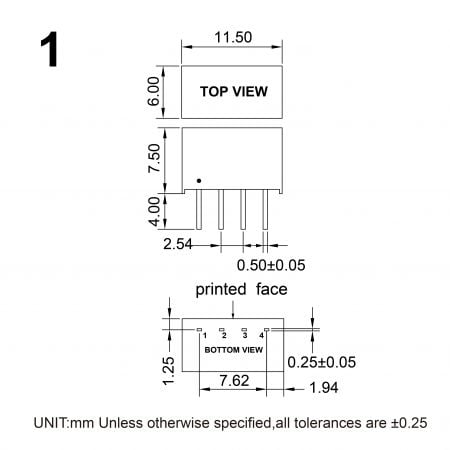

| Dimensions | Package 1 | 11.5x6.0x7.5 | mm | ||

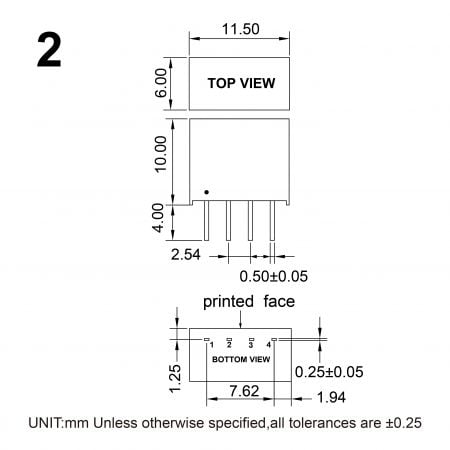

| Package 2 | 11.5x6.0x10.0 | mm | |||

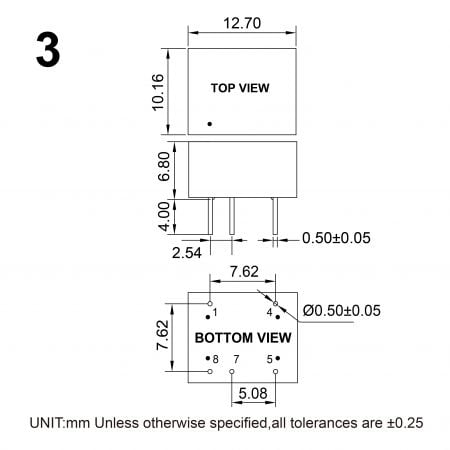

| Package 3 | 12.7x10.16x6.8 | mm | |||
