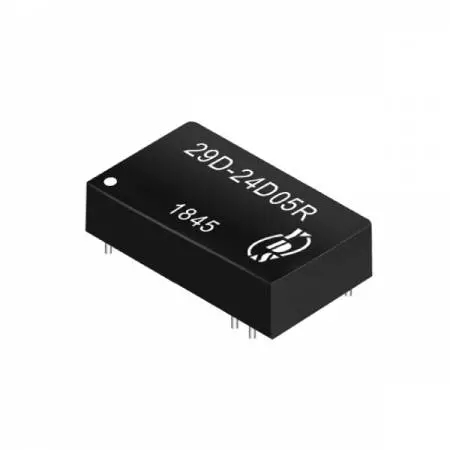

2W DIL16 2:1 Single/Dual Regulated Output DC-DC Converter, 1.5KV Isolation

‹ ›

Product Features

2W DIL16 2:1 Single/Dual Regulated Output DC-DC Converter, 1.5KV Isolation

29D Series

2W DIL16 2:1 Regulated Single/Dual Output DC to DC Converter For Industry and Sensing equipment

2:1 wide input voltage 2 watt DC to DC power converter with 1.5KV isolation voltage. 29D series is a regulated output type product, and has DIL package. The inside of the product is an SMD structure. The operating ambient temperature is from -40°C to +85°C, the efficiency is up to 83%. This product has industry-standard pins and no external components required.

Our company, a professional DC-DC converter manufacturer, provides DC-DC Converter OEM/ODM Service with the 29D series. This Industrial Grade Board mount isolated DC-DC converter features a Wide Input DC-DC Converter range and a Regulated DC to DC Power Module. As a Cost-effective DC-DC converter, it includes a Short Circuit Protection DC-DC Module and is a RoHS & REACH Compliant DC-DC Converter. It is perfect for industrial equipment, sensing devices, electronic instruments, wireless networks, telecom/datacom, and measurement technology.

Our DC-DC power converter products are RoHS compliant and can be customized, with a 3-year warranty on sale.

Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!

2W 1.5KV Isolation DIL DC-DC Converter(29D Series) | Regulated DC-DC Power Module | Regulated DC-DC Module DIL16

Features

2:1 wide input voltages range.
16PIN DIL package.
High efficiency up to 83%.
Regulated output types.
Internal SMD construction.
No external component required.
Operating temperature:-40°C to +85°C.
Industry standard pinout.

Applications

Industry equipment.
Sensing equipment.
Instruments.
Wireless Network.
Telecom/Datacom.
Measurement.

Specifications typical at TA = 25°C, nominal input voltage and rated output current unless otherwise specified

Part Number	Input Voltage Range	Output Voltage	Output Current	Efficiency
Part Number	Vdc	Vdc	mA	%TYP
29D-05S03R	4.5-9	3.3	500	70
29D-05S05R	4.5-9	5	400	70
29D-05S12R	4.5-9	12	167	75
29D-05S15R	4.5-9	15	133	78
29D-05S24R	4.5-9	24	84	80
29D-12S03R	9-18	3.3	500	70
29D-12S05R	9-18	5	400	75
29D-12S12R	9-18	12	167	80
29D-12S15R	9-18	15	133	80
29D-12S24R	9-18	24	84	83
29D-24S03R	18-36	3.3	500	70
29D-24S05R	18-36	5	400	76
29D-24S12R	18-36	12	167	80
29D-24S15R	18-36	15	133	80
29D-24S24R	18-36	24	84	83
29D-05D05R	4.5-9	± 5	± 200	70
29D-05D12R	4.5-9	± 12	± 84	75
29D-05D15R	4.5-9	± 15	± 67	78
29D-05D24R	4.5-9	± 24	± 42	80
29D-12D05R	9-18	± 5	± 200	75
29D-12D12R	9-18	± 12	± 84	80
29D-12D15R	9-18	± 15	± 67	80
29D-12D24R	9-18	± 24	± 42	83
29D-24D05R	18-36	± 5	± 200	76
29D-24D12R	18-36	± 12	± 84	80
29D-24D15R	18-36	± 15	± 67	80
29D-24D24R	18-36	± 24	± 42	83

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	Vo,Io Nom			2:1
Filter	Capacitor

Output Specifications

Parameters	Conditions	Typ	Max	Units
Voltage Tolerance	100% full load		± 2	%
Short Circuit Protection	Continuous
Line Regulation	Regulated		± 0.5	%
Load Regulation	Regulated		± 0.8	%
Ripple & Noise	BW=DC To 20MHz		100	mVp-p
Transient response setting time	50% load step change	350		us

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency	Full load, nominal input		100		KHz
Operating Temperature		-40		+85	°C
Humidity	Non Condensing			95	%
Cooling	Free air Convection
Case material	DAP
MTBF	MIL-HDBK-217F@25℃	1500000			Hours
Weight		5.2			g
Dimensions		24.1x14.35x8.25			mm

Certification

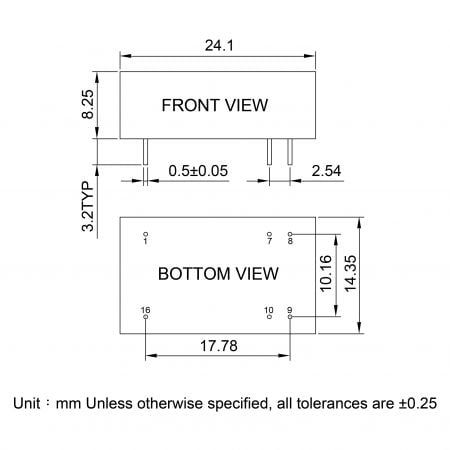

Markings and Dimensions Related Products Files Download
