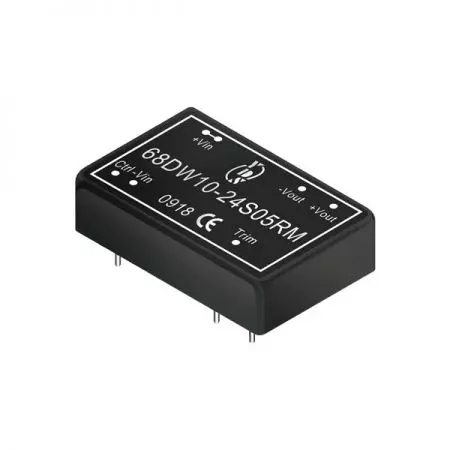

10W Medical DC-DC Converter With 85% Efficiency 4:1 Wide Input 5000Vac Isolation And Low Leakage Current

‹ ›

Product Features

10W Medical DC-DC Converter with 85% Efficiency 4:1 Wide Input 5000Vac Isolation and Low Leakage Current

68DW10-M Series

10 Watt Medical Grade DC to DC Power Module | 4:1 Ultra-wide Input | EN 60601-1-2 Compliant | DIL24 Package For Medical device and Measurement equipment

Medical application 4:1 wide input voltage range 10 watt DC to DC power converter. It is available in 24 pin DIL package with 5KVac isolation voltage. 68DW10-M series has passed the medical EMC standard EMI EN 55011:2009 + A1:2010 (CLASS A) and medical EMC standard EMS EN 60601-1-2:2015 certification. The operating environment temperature is from - 40°C to +82°C, and the highest efficiency can reach 85%. The product is tested by 100% high temperature pre-burning before shipment. The packaging material meets the UL94V-0 specification.

YDS provides high-performance medical power modules specifically engineered for patient safety. Our IEC 60601-1 certified DC DC solutions feature 2xMOPP (Means of Patient Protection) to ensure the highest level of safety in clinical environments. Compliant with EN 60601-1 standards, each isolated medical DC DC converter delivers a high isolation DC-DC converter architecture, providing a stable and reliable 60601-1 power supply for diagnostic tools, monitoring systems, and advanced medical equipment.

The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.

Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!

10W 5KVac Isolation 4:1 DIP DC-DC Converter(68DW10-M Series)

Features

10 watt DIL package.
4:1 wide input voltage.
100% burned in.
High efficiency to 85%.
Customized solutions available.
UL94V-0 package material.
Operating temperature:-40°C to +82°C.
3 years warranty.
Medical EMC standard of EMI EN 55011:2009 + A1:2010 (CLASS A) approved.
Medical EMC standard of EMS EN 60601-1-2:2015 approved.
Medical/industry/ITE application.
I/O isolation 5000VACrms with reinforced insulation, rated for 250VAC working voltage.
Low leakage current <2 μA

Applications

Industry equipment.
Sensing equipment.
Instruments.
Wireless Network.
Telecom/Datacom.
Measurement.
Aviation.
Medical device.

Specifications typical at TA = 25°C, nominal input voltage and rated output current unless otherwise specified

Part Number	Input Voltage	Input Current		Output Voltage	Output Current	Efficiency	Capacitor load
Part Number	Vdc	No Load (mA TYP)	Full Load (mA TYP)	Vdc	Full Load (mA)	%TYP	uF MAX
68DW10-24S03RM	9-36	7	414	3.3	2500	83	4700
68DW10-24S05RM	9-36	7	496	5	2000	84	2500
68DW10-24S12RM	9-36	7	496	12	834	84	430
68DW10-24S15RM	9-36	7	499	15	670	84	270
68DW10-24S24RM	9-36	7	499	24	417	84	430
68DW10-24D05RM	9-36	7	496	± 5	± 1000	84	± 1250
68DW10-24D12RM	9-36	7	494	± 12	± 417	85	± 220
68DW10-24D15RM	9-36	7	500	± 15	± 335	85	± 135
68DW10-48S03RM	18-75	4	207	3.3	2500	83	4700
68DW10-48S05RM	18-75	4	248	5	2000	84	2500
68DW10-48S12RM	18-75	4	248	12	834	84	430
68DW10-48S15RM	18-75	4	249	15	670	84	270
68DW10-48S24RM	18-75	4	249	24	417	84	430
68DW10-48D05RM	18-75	4	248	± 5	± 1000	84	± 1250
68DW10-48D12RM	18-75	4	247	± 12	± 417	85	± 220
68DW10-48D15RM	18-75	4	250	± 15	± 335	85	± 135

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Types				4:1
Filter		PI Network
Protection	Fuse Recommended
Start up Time	Constant resistive load		15		ms
Remote ON/OFF	DC-DC ON (Referred to –Vin pin)	0	Open	1.2	Vdc
Remote ON/OFF	DC-DC OFF	2.2		12	Vdc

Output Specifications

Parameters	Conditions	Typ	Max	Units
Voltage Tolerance	Full load@Vin(nom.)		± 2	%
Short Circuit Protection	Hiccup, automatic Recovery
Line Regulation			± 0.5	%
Load Regulation	Single Dual(Balance Load)		± 0.5 ± 0.5	%
Cross Regulation	Dual (25% To 100% Load)		± 5	%
Ripple & Noise	Output:3-15V TYPES BW=DC To 20MHz		100	mVp-p
Ripple & Noise	Output >15V TYPES BW=DC To 20MHz		1% of Vout	mVp-p
Transient response setting time	25% load step change	350		us
External Trim Adj. Range			± 10	%

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Voltage	I/P to O/P Reinforced insulation for 250VAC working voltage 60sec leakage ≤ 1mA			5000	Vac
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency			300		KHz
Operating Temperature	Refer to temperature derating graph (With derating)	-40		+82	°C
Storage Temperature		-55		+125	°C
Temperature Coefficient	100% Load			±0.03	%/°C
Case Temperature				+95	°C
Humidity	Non Condensing	5		95	%
Cooling	Natural Convection (20LFM)
Case material	Plastic
MTBF	MIL-HDBK-217F @25℃	900000			Hours
Weight		13.5			g
Dimensions		31.6 x 20.1 x 10.0			mm

Certification

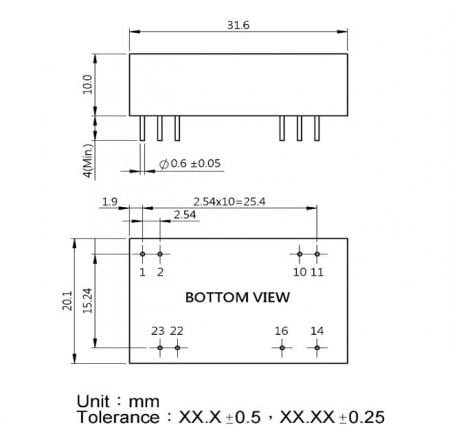

Markings and Dimensions Related Products Files Download
