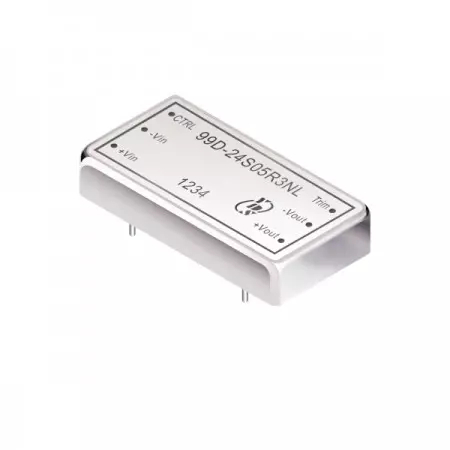

DC-DC Converter, 2'' x 1'' size, 2:1 Wide Input Range, 6PIN DIL Package, Single & Dual Regulated Output For Industry and Measurement equipment
40 watt 1.5KV isolation DC to DC power converter has a wide input 2:1 voltage range. The operating environment temperature is from -40°C to +77°C. The efficiency can reach 91%. 99D-R3 series has single output and dual output specifications. It is available in DIL package. This product uses UL94V-0 packaging material. This power converter will test by 100% high temperature pre-burn before shipment.
As a technology-driven professional manufacturer, we offer High Efficiency DC-DC power Module and Wide Input DC-DC Converter solutions for aviation and sensing. This Regulated DC-DC Converter and Industrial Power Supply DC-DC ensure stability as a safety isolated DC to DC converter. Whether for Cost-effective isolated DC-DC needs or Customized DIL DC to DC Converter designs via our DC to DC Converter OEM/ODM Service, our RoHS & REACH Compliant Power in PCB mount DC-DC converter or through hole DC DC converter format is ideal for electronic instruments and telecom.
The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Input Voltage | Input Current | Output Voltage | Output Current | Capacitor Load | Efficiency | |
|---|---|---|---|---|---|---|---|
| Vdc | No-Load (mA TYP) | Full Load (mA TYP) | Vdc | Full Load (mA) | uF | %TYP | |
| 99D-12S03R3NL | 9-18 | 160 | 2472 | 3.3 | 8000 | 16000 | 89 |
| 99D-12S05R3NL | 9-18 | 160 | 3745 | 5 | 8000 | 10000 | 89 |
| 99D-12S12R3NL | 9-18 | 60 | 3753 | 12 | 3340 | 1800 | 89 |
| 99D-12S15R3NL | 9-18 | 60 | 3708 | 15 | 2670 | 1200 | 90 |
| 99D-12D12R3NL | 9-18 | 60 | 3795 | ± 12 | ± 1670 | ± 680 | 88 |
| 99D-12D15R3NL | 9-18 | 60 | 3807 | ± 15 | ± 1340 | ± 560 | 88 |
| 99D-24S03R3NL | 18-36 | 90 | 1236 | 3.3 | 8000 | 16000 | 89 |
| 99D-24S05R3NL | 18-36 | 90 | 1873 | 5 | 8000 | 10000 | 89 |
| 99D-24S12R3NL | 18-36 | 60 | 1876 | 12 | 3340 | 1800 | 89 |
| 99D-24S15R3NL | 18-36 | 60 | 1854 | 15 | 2670 | 1200 | 90 |
| 99D-24D12R3NL | 18-36 | 50 | 1898 | ± 12 | ± 1670 | ± 680 | 88 |
| 99D-24D15R3NL | 18-36 | 50 | 1882 | ± 15 | ± 1340 | ± 560 | 89 |
| 99D-48S03R3NL | 36-75 | 70 | 617 | 3.3 | 8000 | 16000 | 89 |
| 99D-48S05R3NL | 36-75 | 70 | 926 | 5 | 8000 | 10000 | 90 |
| 99D-48S12R3NL | 36-75 | 40 | 927 | 12 | 3340 | 1800 | 90 |
| 99D-48S15R3NL | 36-75 | 40 | 917 | 15 | 2670 | 1200 | 91 |
| 99D-48D12R3NL | 36-75 | 40 | 938 | ± 12 | ± 1670 | ± 680 | 89 |
| 99D-48D15R3NL | 36-75 | 40 | 941 | ± 15 | ± 1340 | ± 560 | 89 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Types | 2:1 | ||||
| Filter | Pi Network | ||||
| Protection | Fuse Recommended |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | Full load@Vin(nom.) | ± 2 | % | ||
| Short Circuit Protection | Hiccup, automatic recovery | ||||
| Line Regulation | ± 0.5 | % | |||
| Load Regulation | Single Dual(Balance Load) | ± 0.5 ± 2 | % | ||
| Cross Regulation | Dual (25% to 100% load) | ± 5 | % | ||
| Ripple & Noise | Output:3-15V TYPES BW=DC To 20MHz | 100 | mVp-p | ||
| Output >15V TYPES BW=DC To 20MHz | 1% of Vout | mVp-p | |||
| Transient response setting time | 25% load step change | 300 | us | ||
| External Trim Adj. Range | ± 10 | % |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | 350 | KHz | |||
| Operating Temperature | Refer to temperature derating graph (with derating) | -40 | +77 | °C | |
| Humidity | Non Condensing | 5 | 95 | % | |
| Cooling | Natural Convection (20LFM) | ||||
| Case Material | Nickel Coated with Non-Conductive Base | ||||
| Weight | 40 | g | |||

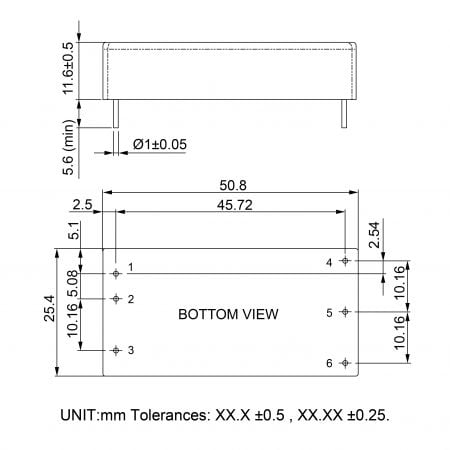

| Dimensions | 50.8X 25.4 X 11.6 | mm | |||
| Potting material | Epoxy (UL94V-0 rated) | ||||
| Remote ON/OFF | ON OFF | Open Short to -Vin | |||
| Isolation Voltage | 1500 | VDC | |||
| MTBF | MIL-HDBK-217F @25℃ , Ground Benign | 328000 | Hours | ||
| Storage Temperature | -55 | +125 | °C | ||
| Temperature Coefficient | 100% Load | ± 0.03 | %/°C | ||
| Case Temperature | +105 | °C | |||
| Isolation Capacitance | 1500 | pF | |||
