4W SIP8 Single/Dual Regulated Output DC-DC Converter, 1.6KV Isolation, 4:1 Wide Input Range

4W SIP8 Single/Dual Regulated Output DC-DC Converter, 1.6KV Isolation, 4:1 Wide Input Range ‹ ›
4W SIP8 Single/Dual Regulated Output DC-DC Converter, 1.6KV Isolation, 4:1 Wide Input Range
Product Features

4W SIP8 Single/Dual Regulated Output DC-DC Converter, 1.6KV Isolation, 4:1 Wide Input Range

27DC-4W Series

4W SIP8 Regulated Single/Dual Output DC to DC Converter For Industry and Measurement equipment

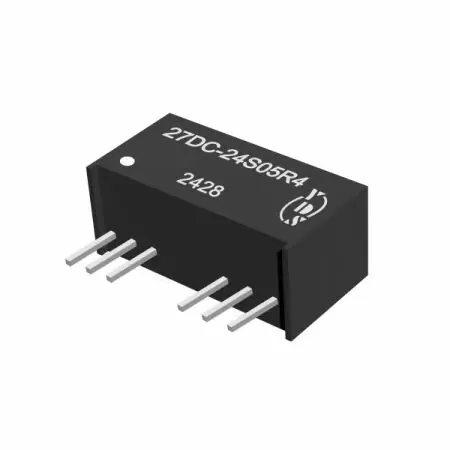

Wide input 4:1 voltage range 1.6KV isolation 4 watt DC to DC power converter. It is available in 8 pin SIP package. The efficiency is up to 84%. The operating environment temperature is from -40°C to +85°C.

As a professional DC-DC Converter Manufacturer, we offer the 27DC-4W Series featuring Wide Input DC-DC Converter and Regulated DC to DC Converter solutions. This 1.6KVdc Isolated SIP Converter and SIP DC-DC converter includes a Short Circuit Protection DC to DC Module design. These cost-effective DC-DC converters are RoHS & REACH Compliant Power in a compact DC-DC converter and board mount DC to DC converter package, serving as high-quality industrial power supply DC to DC for sensing, wireless, and aerospace.

The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.

Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!

4W 1.6KV Isolation 4:1 SIP DC-DC Converter | industrial DC-DC power module | Competitive price DC-DC
Features
  • 4:1 wide input voltages range.
  • High efficiency up to 84%.
  • Regulated output types.
  • Low ripple and noise.
  • Internal SMD construction.
  • 1.6KVDC isolation.
  • Operating temperature : -40°C to +85°C.
  • Industry standard pinout.
  • Continuous short circuit protection with current foldback.
Applications
  • Industry equipment.
  • Sensing equipment.
  • Instruments.
  • Wireless Network.
  • Telecom/Datacom.
  • Measurement.
  • Aviation.
Specifications typical at TA = 25°C, nominal input voltage and rated output current unless otherwise specified
Part Number Input
Voltage Range		 Output
Voltage Range		 Output
Current		 Efficiency Capacitive
Load(μF)
Vdc Vdc mA %TYP Max.
27DC-24S03R4 9-36 3.3 1200 74 1800
27DC-24S05R4 9-36 5 800 80 1000
27DC-24S09R4 9-36 9 444 81 470
27DC-24S12R4 9-36 12 333 83 470
27DC-24S15R4 9-36 15 267 83 220
27DC-24S24R4 9-36 24 167 83 100
27DC-24D05R4 9-36 ± 5 ± 400 80 470
27DC-24D09R4 9-36 ± 9 ± 222 81 220
27DC-24D12R4 9-36 ± 12 ± 167 83 120
27DC-24D15R4 9-36 ± 15 ± 133 83 100
27DC-24D24R4 9-36 ± 24 ± 83 83 68
27DC-48S03R4 18-75 3.3 1300 78 1200
27DC-48S05R4 18-75 5 800 81 680
27DC-48S09R4 18-75 9 444 82 330
27DC-48S12R4 18-75 12 333 84 330
27DC-48S15R4 18-75 15 267 84 150
27DC-48S24R4 18-75 24 167 84 68
27DC-48D05R4 18-75 ± 5 ± 400 81 470
27DC-48D09R4 18-75 ± 9 ± 222 82 220
27DC-48D12R4 18-75 ± 12 ± 167 84 100
27DC-48D15R4 18-75 ± 15 ± 133 84 68
Input Specifications
Parameters Conditions Min Typ Max Units
Voltage Tolerance Vo, Io Nom 4:1
Surge Voltage
(1sec max)		 24 Vin 50 Vdc
48 Vin 80 Vdc
Input Current LOAD:0% 5 mA
Start-up Time 24 Vin 9 Vdc
48 Vin 18 Vdc
Shutdown Voltage 24/48 Vin 6.5/14.5 Vdc
Start-up Time Nominal input voltage &
Nominal load		 20 ms
CTRL Module on Ctrl pin open
Module off Ctrl pin to 2.5 ~ 12Vdc
Filter Capacitor
Output Specifications
Parameters Conditions Min Typ Max Units
Voltage Tolerance 100% full load 2 ± 3 %
Line Regulation Regulated ± 1.0 %
Load Regulation Regulated ± 1.5 %
Ripple & Noise BW=DC To 20MHz 150 mVp-p
Transient response setting time 50% load step change 350 us
Cross Regulation Dual outputs,
Vo1 load at 50%,
Vo2 load at range of 10%-100%		 ± 5 %
Temperature Coefficient 100% Load ± 0.02 ± 0.03 %/°C
Over-current Protection Input voltage range 110 250 %Io
Short Circuit Protection Input voltage range Continuous, self-recovery
General Specifications
Parameters Conditions Min Typ Max Units
Isolation Resistance 500Vdc 1000 MΩ
Isolation Voltage Input / Output 1600Vdc/ 0.5mA/60Sec
Isolation Capacitance Input-output capacitance at
100kHz/0.1V		 1000 pF
Switching Frequency Full load, nominal input 330 KHz
Operating Temperature Temperature Derating Graph -40 +85 °C
Storage Temperature -55 +125 °C
Humidity Non Condensing 95 %
Cooling Free air Convection
Case Material DAP
MTBF MIL-HDBK-217F @25°C 1500000 Hours
Weight 4.5 g
Dimensions 21.8 x 9.2 x 11.1 mm
Certification

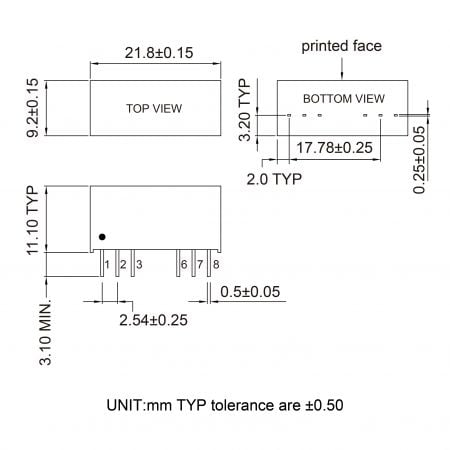

Markings and Dimensions Related Products Files Download
