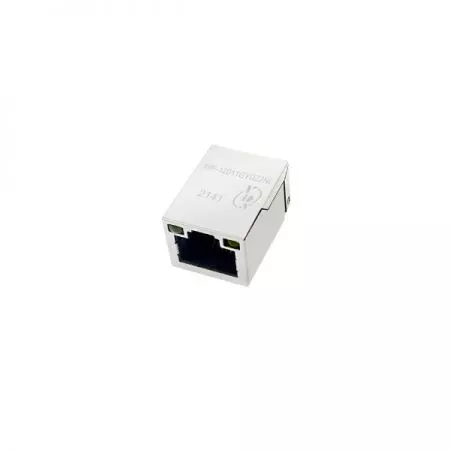

10/100 Base-T RJ45 Jack with/without LEDs | 2250VDC Isolated | SMD10 Magnetics

49F Series

Fast Ethernet Magnetic Connector | Optional LED Config | 2250 VDC Isolation | TAB UP | SMD 10-Pin For Telecom、HUB、Wireless router station and VoIP device equipment

10/100 Base-T single port Tab up RJ45 jack with magnetics. 49F series is available in Tape & Reel format, and can be selected with and without LEDs. Internal magnetics options available and 100% electrically tested for HI-POT & continuity. Meets or exceeds IEEE 802.3i/u standard for 10/100Base-T. Minimum 2250 VDC isolation per IEEE 802.3 requirement. Desingned to withstand IR reflow temperatures up to 245°C. This product has passed the UL 60950-1 safety certification.

Our integrated magnetics RJ45 series offers a high-performance SMD RJ45 jack with magnetics, featuring a 10/100 Base-T RJ45 connector design. As a leading RJ45 magjack manufacturer, we provide Integrated RJ45 Magjack SMD solutions with an optional LED. This surface mount RJ45 LAN connector, also known as an RJ45 ICM connector, is a reliable surface mount RJ45 jack ideal for space-saving designs. Whether you need an SMT RJ45 with magnetics or RJ45 integrated magnetics, our 49F Series ensures superior connectivity for telecommunications, HUBs, wireless networks, VoIP, and IP cameras.

The RJ45 connector products of Yuan Dean are RoHS-compliant, and can be customized for products.

Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!

Single Port 10/100 Base-T SMD RJ45 Jack with Magnetics(49F Series) | Bulk Gigabit RJ45 with Magnetics | LAN magnetics RJ45
Features
  • Available in Tape & Reel format.
  • SMT product available with or without LEDs.
  • Internal magnetics: 100% electrically tested for HI-POT & Continuity.
  • Internal magnetics options available.
  • Meets or exceeds IEEE 802.3i/u standard for 10/100Base-T.
  • Minimum 2250 VDC isolation per IEEE 802.3 requirement.
  • Desingned to withstand IR reflow temperatures up to 245°C.
  • Recognized by UL 60950-1.
Applications
  • Telecom equipment.
  • HUB.
  • Wireless router station.
  • VoIP device.
  • Video camera.
Electrical Specifications@25°C; Operating Temperature -40°C to 85°C
Part Number Turns Ratio LEDs Insertion Loss
TX/RX
(dB MAX)		 Return Loss
@100Ω ± 15Ω
(dB TYP)		 Cross Talk
(dB MIN)		 Hipot
(VDC)
TX RX L/R 1-100
MHz		 1-30
MHz		 30-60
MHz		 60-100
MHz		 1-100
MHz		 0.5mA/2Sec
49F-12011GYDZ2NL 1CT: 1CT 1CT: 1CT G/Y -1.2 -16 -12 -10 -30 2250
Certification

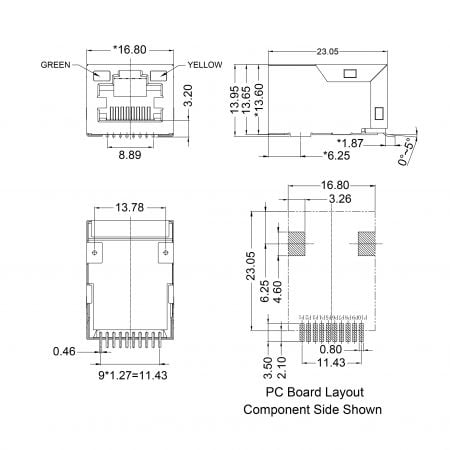

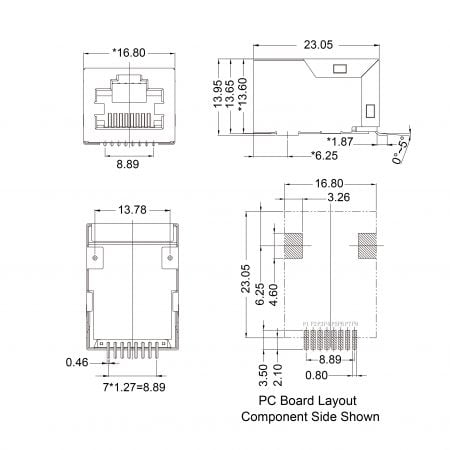

Mechanicals and Dimensions Related Products Files Download
