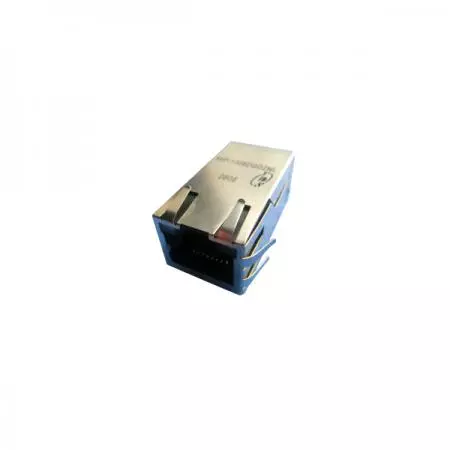

Single Port 5G Base-T RJ45 Jack With Magnetics EMI Shielding 2250VDC Isolation And Optional LED

Single Port 5G Base-T RJ45 Jack With Magnetics EMI Shielding 2250VDC Isolation And Optional LED ‹ ›
Single Port 5G Base-T RJ45 Jack With Magnetics EMI Shielding 2250VDC Isolation And Optional LED
Product Features

Single Port 5G Base-T RJ45 Jack with Magnetics EMI Shielding 2250VDC Isolation and Optional LED

56F(5G) Series

5GBASE-T 5GbE Shielded Magnetic Jack | Tab-Up Design | 2.25KV Isolated | Integrated LED Option For HUB and Telecom equipment

5G Base-T single port RJ45 jack with magnetics. The 12 pin signal pin version is optional. 56F-5G series is available in optional LED. Internal magnetics are 100% electrically tested for HI-POT and functionality. Suitable for CAT 5 and 6 Fast Ethernet cables or better UTP.

Elevate your telecommunications and wireless networks with our High reliability 5G MagJack, featuring an Extended Length RJ45 MagJack design for specialized hardware integration. This Integrated 5G Lan filter RJ45 solution functions as a precision RJ45 ICM, incorporating an RJ45 with 5G transformer and Optional LED 5G RJ45 to ensure superior LAN magnetics RJ45 performance. Whether you need Custom 5G RJ45 magnetics for HUBs or a reliable OEM RJ45 magjack for VoIP and IP cameras, our RJ45 LAN connector with magnetics delivers robust ethernet RJ45 connector with magnetics connectivity for high-demand environments.

The RJ45 connector products of Yuan Dean are RoHS-compliant, and can be customized for products.

Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!

Single Port 5G Base-T RJ45 Jack with Magnetics(56F-5G Series) | Low Profile 5G Ethernet Connector | 5GbE RJ45 Jack with Integrated Magnetics
Features
  • 1x1 Tab-UP, 1" Long RJ45 with internal magnetics.
  • 12pin signal pin versions available.
  • Available with LEDs.
  • Suitable for CAT 5 & 6 fast ethernet cable or better UTP.
  • Internal magnetics are 100% electrically tested for HI-POT and functionality.
Applications
  • Telecom equipment.
  • HUB.
  • Wireless router station.
  • VoIP device.
  • Video camera.
Electrical Specifications@25°C; Operating Temperature 0°C to 70°C
Part Number Turns Ratio
(±3%)		 LEDs Insertion Loss
(dB MAX)		 Return Loss
(dB MIN)
L/R 1-125
MHz		 125-250
MHz		 1-40
MHz		 40-250
MHz
56F-3001GYD2NL 1CT: 1CT G/Y -1.0 -1.5 -20 -20+15log10(f/40MHz)
Part Number Crosstalk
(dB TYP)		 CDMR
(dB TYP)		 CMR
(dB TYP)		 Hipot
(VDC)
1-125
MHz		 125-250
MHz		 10-250
MHz		 30-250
MHz		 @60Hz
56F-3001GYD2NL -30 -25 -45+f/35 -30 2250
Certification

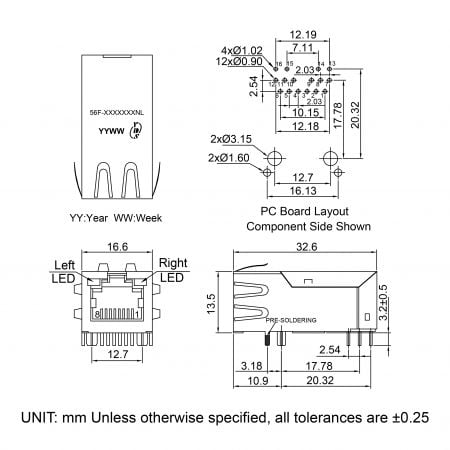

Mechanicals and Dimensions Related Products Files Download
