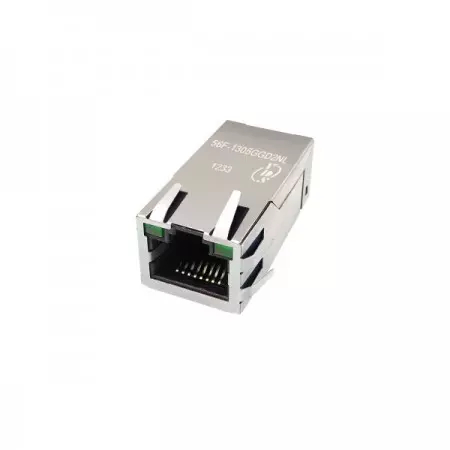

Single Port 10/100/1000 Base-T Gigabit RJ45 Jack With Magnetics EMI Shielding And Optional LED

Single Port 10/100/1000 Base-T Gigabit RJ45 Jack With Magnetics EMI Shielding And Optional LED ‹ ›
Single Port 10/100/1000 Base-T Gigabit RJ45 Jack With Magnetics EMI Shielding And Optional LED
Product Features

Single Port 10/100/1000 Base-T Gigabit RJ45 Jack with Magnetics EMI Shielding and Optional LED

56F Series

1000Base-T Magnetic Jack | 1500Vrms Isolated | Tab-Up Design | Integrated LED Option For HUB and Telecom equipment

10/100/1000 Base-T single port RJ45 connector. The 12 pin signal pin version is optional. 56F series can be selected with or without LED. Internal magnetics are 100% electrically tested for HI-POT and functionality. 350 µH minimum OCL with 8 mA bias current. This product meets the IEEE 802.3 specification.

Optimized for specialized telecommunications and HUB designs, our Extended Length RJ45 MagJack series provides a unique mechanical solution without compromising performance. This Industrial grade 1G RJ45 features Integrated 1G Lan filter RJ45 technology and a precision RJ45 with 1G transformer, making it a High reliability 1G MagJack for mission-critical wireless networks. As a high-performance RJ45 ICM, it offers Optional LED 1G RJ45 configurations within a Compact 1G RJ45 connector body. Rely on our Custom 1G RJ45 magnetics, OEM RJ45 magjack, and ethernet RJ45 connector with magnetics to ensure stable data flow for VoIP systems and IP cameras.

The RJ45 connector products of Yuan Dean are RoHS-compliant, and can be customized for products.

Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!

Single Port 10/100/1000 Base-T RJ45 Jack with Magnetics(56F Series) | 1G RJ45 ICM | Gigabit RJ45 Connector with Magnetics
Features
  • 1x1 Tab-UP, 1" Long RJ45 with internal magnetics.
  • 12pin signal pin versions available.
  • Available with and without LEDs.
  • Suitable for CAT 5 & 6 fast ethernet cable or better UTP.
  • Internal magnetics are 100% electrically tested for HI-POT and functionality.
  • 350 µH minimum OCL with 8 mA bias current.
  • Meets IEEE 802.3 specification.
Applications
  • Telecom equipment.
  • HUB.
  • Wireless router station.
  • VoIP device.
  • Video camera.
Electrical Specifications@25°C; Operating Temperature 0°C to 70°C
Part Number Turns Ratio
(±5%)		 LEDs Insertion Loss
(dB MAX)		 Return Loss
(dB MIN)
L/R 0.3-100
MHz		 100-125
MHz		 0.5-40
MHz		 40-100
MHz
56F-1301GYD2NL 1CT: 1CT G/Y -0.8 -1.2 -18 -12+20log(f/80MHz)
Part Number Crosstalk
(dB TYP)		 Common Mode Rejection
(dB TYP)		 Hipot
(Vrms)
1-100
MHz		 0.3-100
MHz		 @60Hz
56F-1301GYD2NL -33+20log(f/100MHz) -30 1500
Certification

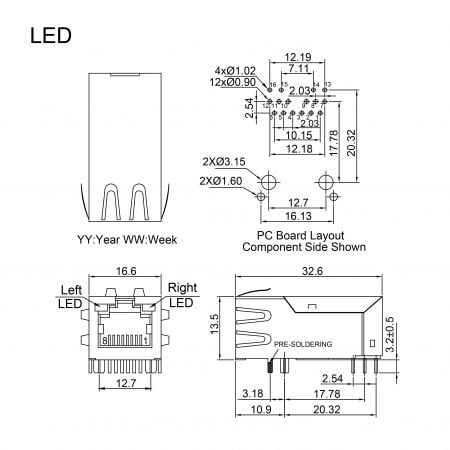

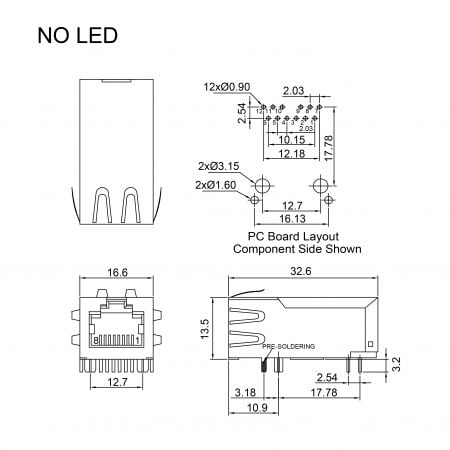

Mechanicals and Dimensions Related Products Files Download
