Home » Products » RJ45 Connector » 1 x 1 Integrated » Gigabit RJ45 Jack With/Without LEDs | 10/100/1000 Base-T | 2250VDC Isolated | Through Hole

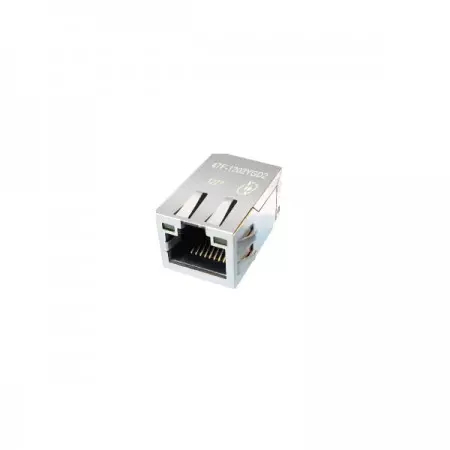

Gigabit RJ45 Jack With/Without LEDs | 10/100/1000 Base-T | 2250VDC Isolated | Through Hole

Gigabit RJ45 Jack With/Without LEDs | 10/100/1000 Base-T | 2250VDC Isolated | Through Hole ‹ ›
Gigabit RJ45 Jack With/Without LEDs | 10/100/1000 Base-T | 2250VDC Isolated | Through Hole
Product Features

Gigabit RJ45 Jack with/without LEDs | 10/100/1000 Base-T | 2250VDC Isolated | Through Hole

47F Series

1G Base-T Magnetic Connector | Optional LED Config | 2250 VDC Isolation | TAB UP | Single Port DIP For Telecom、HUB、Wireless router station and VoIP device equipment

Single port 10/100/1000 Base-T RJ45 jack with magnetics is available in 10, 8 or 6 pin signal pin versions. 47F Series This product can be selected with or without LED. Internal magnetics are 100% electrically tested for HI-POT and functionality. 350 μH minimum OCL with 8 mA bias current. This series has passed UL 60950-1 safety certification.

As a professional provider, we offer the 1 Inch Long RJ45 Jack and Extended Length RJ45 MagJack for specialized designs. Our range includes Magnetic RJ45 Connector, MagJack, and RJ45 Modular Jack with Filter, featuring Integrated 1G Base-T Magnetics. These RJ45 Magnetic Module, Single Port Gigabit MagJack, and Integrated Gigabit Ethernet Connector solutions include RJ45 Jack with Integrated Filter and Gigabit RJ45 with LED. All are UL 60950-1 Certified RJ45 Jack products, and we also offer Custom Gigabit RJ45 Connector services for telecom, HUBs, wireless networks, VoIP, and cameras.

The RJ45 connector products of Yuan Dean are RoHS-compliant, and can be customized for products.

Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!

Single Port 10/100/1000 Base-T RJ45 Jack with Magnetics(47F Series) | EMI Shielded RJ45 Jack | RJ45 with Integrated 10/100/1000 Magnetics
Features
  • 1x1 Tab-UP, 1" Long RJ45 with internal magnetics.
  • 10, 8 or 6-pin signal pin versions available.
  • Available with and without LEDs.
  • Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP.
  • Internal magnetics are 100% electrically tested for HI-POT and functionality.
  • 350 µH minimum OCL with 8 mA bias current.
  • Recognized by UL 60950-1.
Applications
  • Telecom equipment.
  • HUB.
  • Wireless router station.
  • VoIP device.
  • Video camera.
Electrical Specifications@25°C; Operating Temperature 0°C to 70°C
Part Number Turns Ratio LEDs Insertion Loss (dB TYP) Return Loss
(dB TYP @100Ω ± 15Ω)
TX RX L/R 1-65
MHz		 1-10
MHz		 10-30
MHz		 30-60
MHz		 60-80
MHz
47F-1205GYD2NL 1CT: 1CT 1CT: 1CT G/Y -1.0 -20 -16 -12 -10
47F-1302GYD2NL 1CT: 1CT 1CT: 1CT G/Y -1.1 -20 -15 -14 -12
Part Number Cross Talk
(dB TYP)		 Common Mode Rejection
(dB TYP)		 Hipot
(VDC)
1-30
MHz		 30-60
MHz		 60-100
MHz		 1-50
MHz		 50-150
MHz		 @60Hz
47F-1205GYD2NL -40 -35 -30 -30 -20 2250
47F-1302GYD2NL -35 -32 -30 -30 -20 2250
Certification

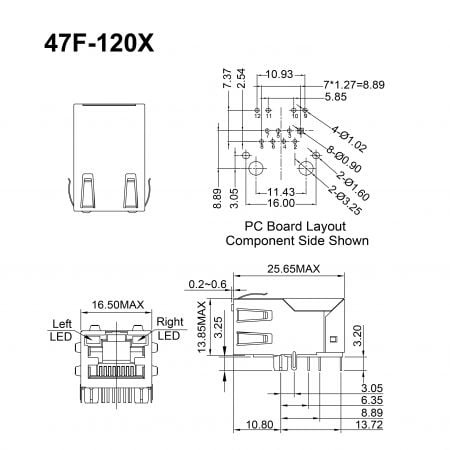

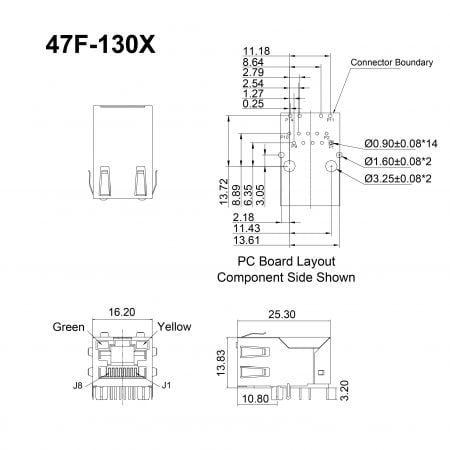

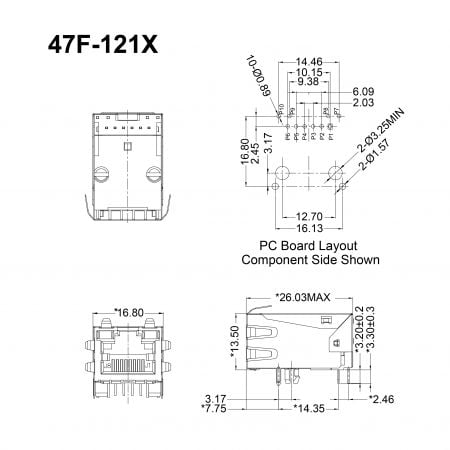

Mechanicals and Dimensions Related Products Files Download
